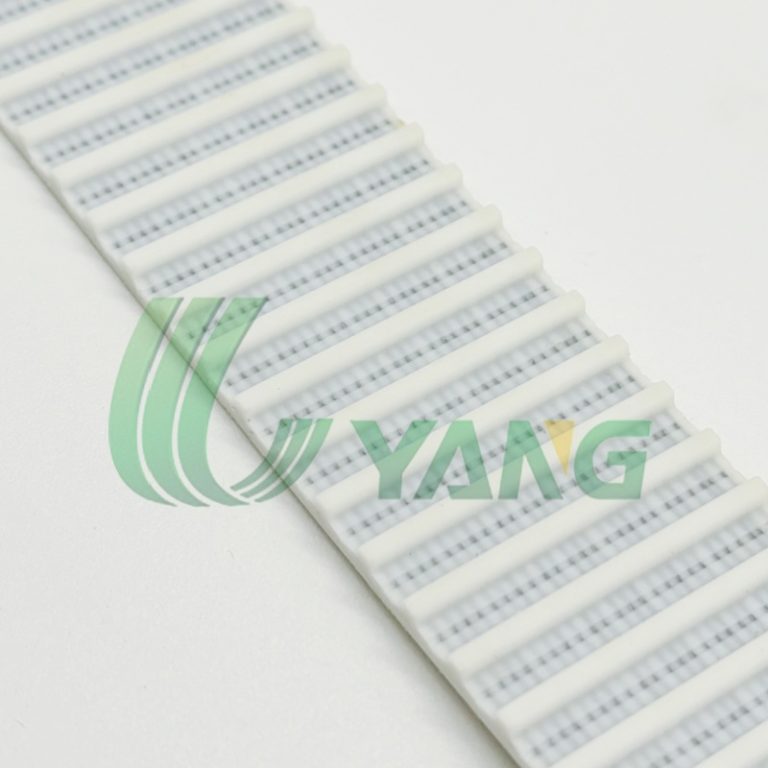

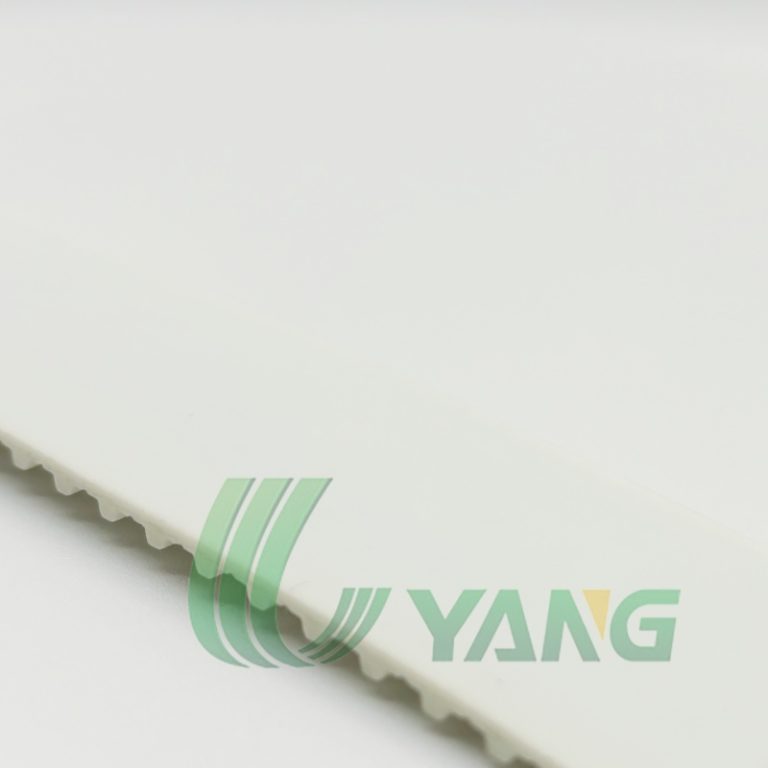

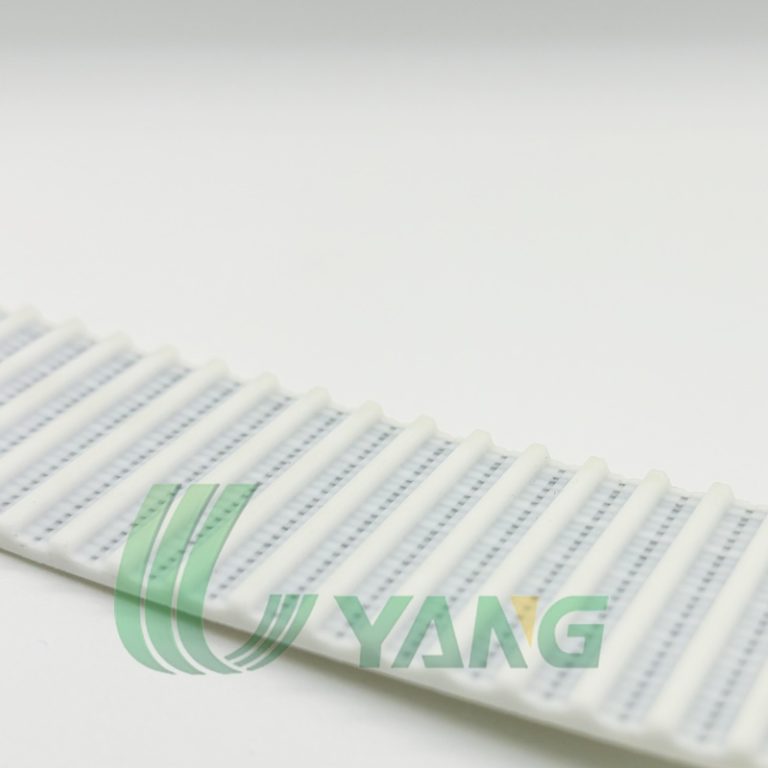

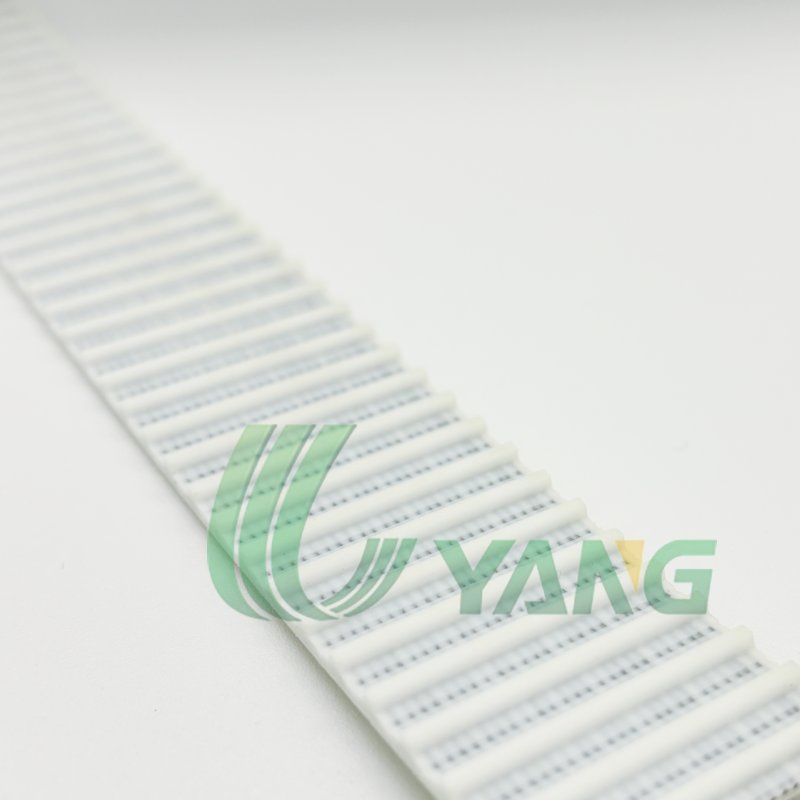

The UYANG XL Polyurethane Timing Belt is a compact, inch-pitch synchronous belt designed for light-duty power transmission and precision-driven applications where space efficiency and stable synchronization are required.
With a 0.200 inch trapezoidal tooth profile, XL timing belts provide smooth engagement, low noise, and reliable speed ratio in small pulley systems.
They are widely used in office equipment, light automation, and compact industrial machinery, especially in systems originally designed with inch standards.
Manufactured from wear-resistant TPU and reinforced with low-elongation tensile cords, UYANG XL timing belts offer consistent performance, good durability, and long service life under light to moderate loads.
The UYANG XL Polyurethane Timing Belt is a compact, inch-pitch synchronous belt designed for light-duty power transmission and precision-driven applications where space efficiency and stable synchronization are required.
With a 0.200 inch trapezoidal tooth profile, XL timing belts provide smooth engagement, low noise, and reliable speed ratio in small pulley systems.
They are widely used in office equipment, light automation, and compact industrial machinery, especially in systems originally designed with inch standards.
Manufactured from wear-resistant TPU and reinforced with low-elongation tensile cords, UYANG XL timing belts offer consistent performance, good durability, and long service life under light to moderate loads.
Brand: UYANG BELTING
Model: XL PU Timing Belt
Pitch: 0.200 inch (5.08 mm)
Tooth Profile: Trapezoidal (Inch Series)
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
XL Inch Pitch Tooth Profile (0.200″)
Designed for compact drives and precise synchronization.
Space-Saving Design
Suitable for small pulleys and limited installation space.
Stable & Quiet Operation
Smooth trapezoidal engagement reduces vibration and noise.
Wear & Chemical Resistance
TPU body resists oils, grease, ozone, and general industrial conditions.
Cost-Effective Solution
Ideal for standard light-duty machinery and OEM applications.
| Item | Value |
|---|---|
| Tooth Profile | Trapezoidal (Inch Series) |
| Pitch | 0.200 inch (5.08 mm) |
| Standard Widths | 6 / 10 / 15 / 20 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Color | White / Natural (custom colors available) |
| Manufacturing Type | Open End / Welded Endless / Truly Endless |
Dimensions, tolerances, and constructions can be customized according to application requirements.
XL timing belts can be supplied with several functional options to match application needs:
PAZ (Tooth Side Fabric):
Reduced friction and quieter operation.
PAR (Back Side Fabric):
Low friction backside for slider beds and idlers.
PAZ + PAR:
Improved durability for continuous operation.
PU or Rubber Backings:
Suitable for light conveying or positioning functions.
Office and commercial equipment
Light automation systems
Small conveyors and transfer units
Printing, labeling, and inspection machines
Compact OEM machinery using inch standards
XL belts are best suited for applications where compact size and smooth operation are more important than high torque capacity.
| Feature | XL | L |
|---|---|---|
| Pitch | 0.200″ (5.08 mm) | 0.375″ (9.525 mm) |
| Load Capacity | Light | Medium |
| Pulley Size | Small | Medium |
| Typical Use | Compact drives | General machinery |
Choose XL for compact, light-duty systems;
choose L when higher load capacity is required.
Stable pitch accuracy and consistent quality
Compatible with inch-based pulley systems
Flexible OEM customization
Export-oriented manufacturing standards
UYANG BELTING focuses on reliable and economical timing belt solutions for global industrial markets.
To receive a fast quotation or technical recommendation, please provide:
Required belt width and length
Endless type (open / welded / truly endless)
Tension member preference
Backing or surface requirements
Application details (load, speed, environment)
