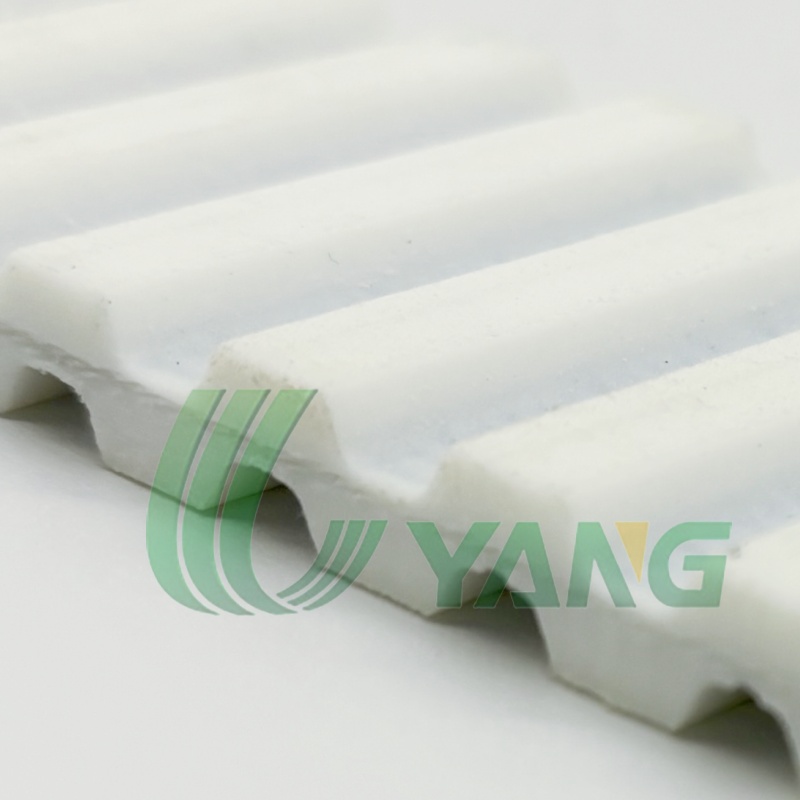

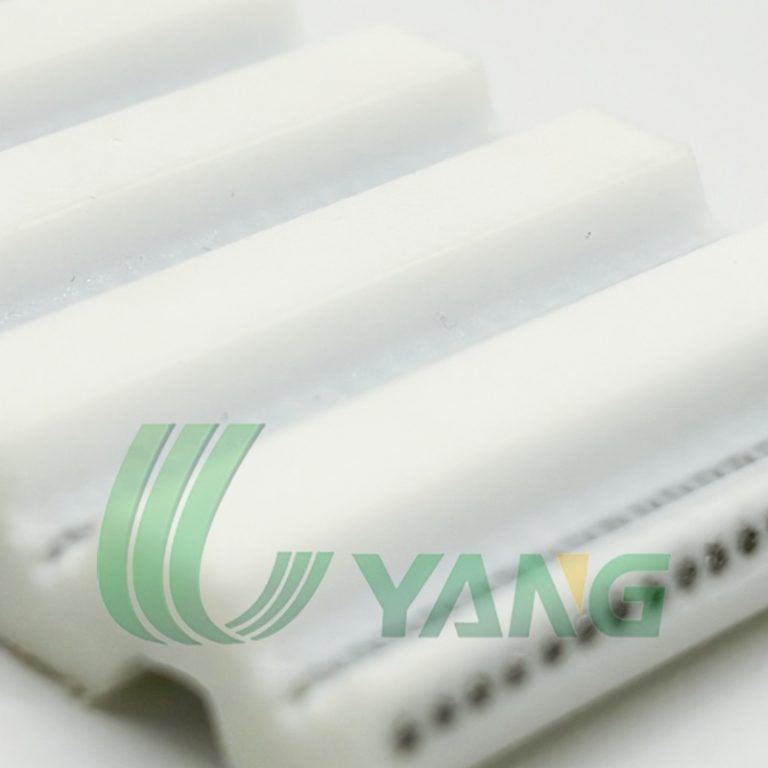

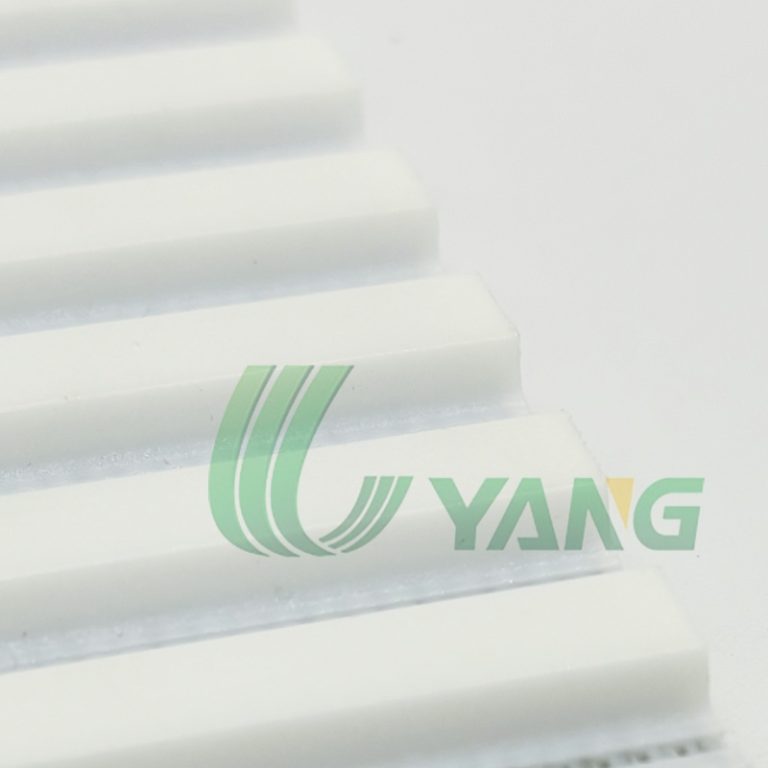

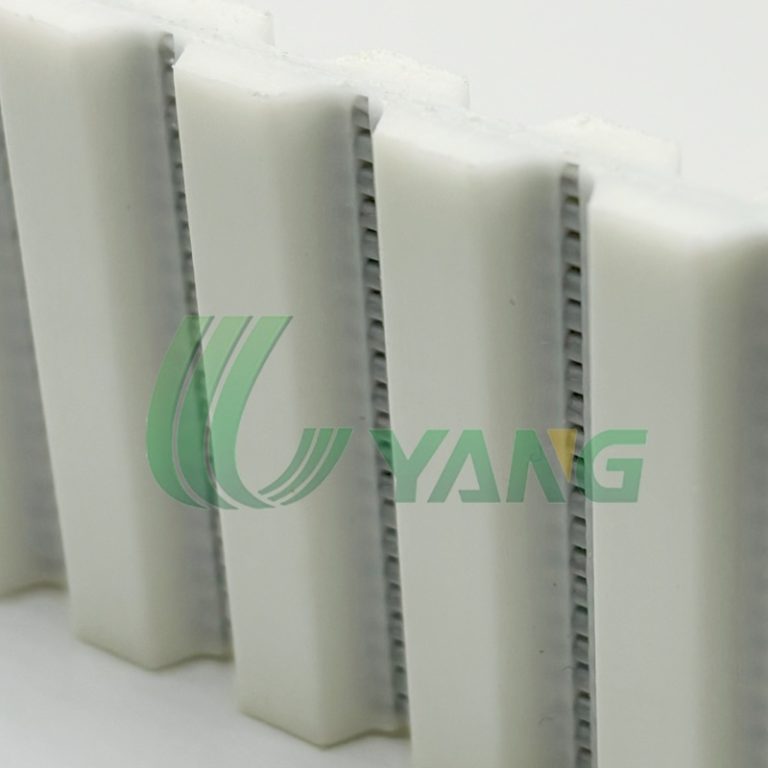

The UYANG DAT10 Polyurethane Timing Belt is a double-sided synchronous timing belt featuring AT10 tooth profiles on both sides, designed for bidirectional power transmission and complex drive layouts.
Compared with standard single-sided AT10 belts, DAT10 belts allow simultaneous engagement with pulleys on both the tooth side and the back side, making them ideal for multi-shaft drives, serpentine layouts, and compact machine designs.
Manufactured from high-performance TPU and reinforced with low-elongation tensile cords, UYANG DAT10 timing belts deliver accurate synchronization, stable torque transmission, and long service life in demanding industrial environments.
The UYANG DAT10 Polyurethane Timing Belt is a double-sided synchronous timing belt featuring AT10 tooth profiles on both sides, designed for bidirectional power transmission and complex drive layouts.
Compared with standard single-sided AT10 belts, DAT10 belts allow simultaneous engagement with pulleys on both the tooth side and the back side, making them ideal for multi-shaft drives, serpentine layouts, and compact machine designs.
Manufactured from high-performance TPU and reinforced with low-elongation tensile cords, UYANG DAT10 timing belts deliver accurate synchronization, stable torque transmission, and long service life in demanding industrial environments.
Brand: UYANG BELTING
Model: DAT10 PU Timing Belt
Pitch: 10 mm
Tooth Profile: AT10 (Double-Sided)
Material: Thermoplastic Polyurethane (TPU)

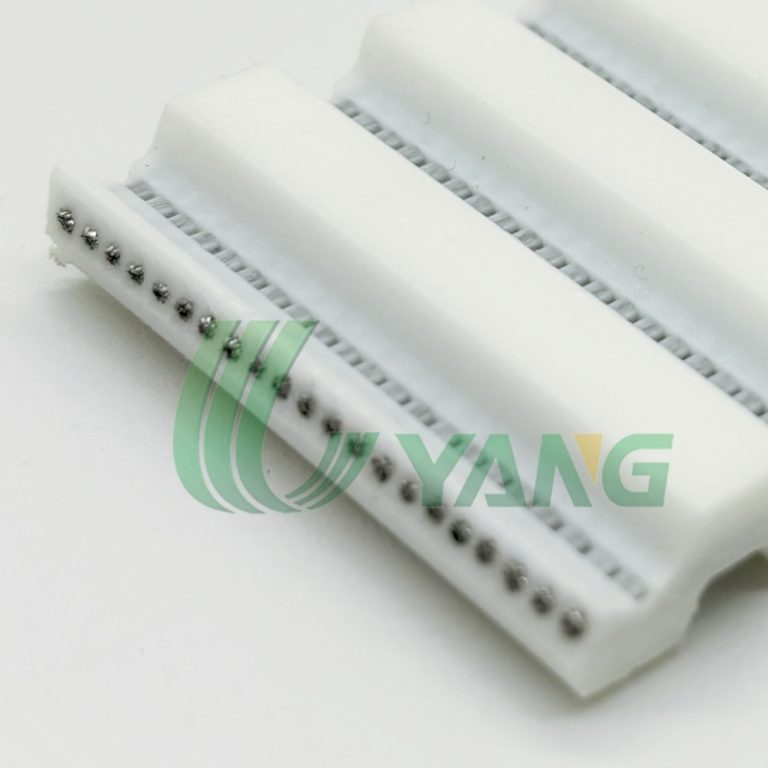

Tension Member: Steel Cord / Aramid Cord (optional)

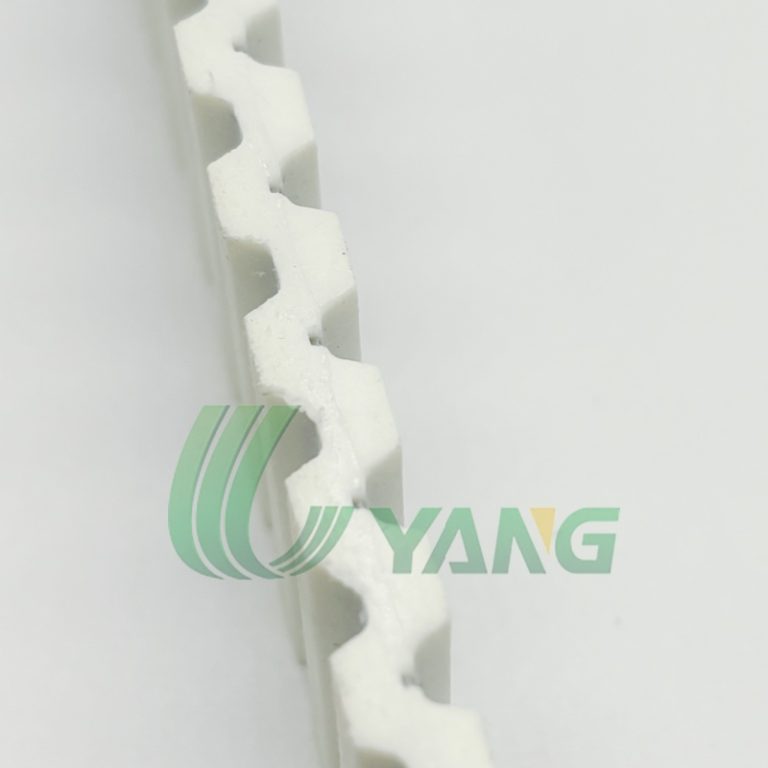

Double-Sided AT10 Tooth Profile (10 mm Pitch)
Enables power transmission on both sides of the belt.
Bidirectional Drive Capability
Suitable for systems requiring multiple driven shafts.
Compact & Efficient System Design
Reduces the need for additional belts or gear mechanisms.
Low Elongation & High Dimensional Stability
Steel or aramid cords maintain precise pitch under load.
Excellent Wear & Chemical Resistance
TPU body resists oils, grease, ozone, and general industrial chemicals.
| Item | Value |
|---|---|
| Tooth Profile | DAT10 (AT10 Double-Sided) |
| Pitch | 10 mm |
| Standard Widths | 25 / 32 / 50 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Color | White / Natural (custom colors available) |
| Manufacturing Type | Open End / Welded Endless / Truly Endless |
Dimensions, tolerances, and constructions can be customized according to application requirements.
DAT10 timing belts can be customized to meet complex transmission needs:
Double-Sided Tooth Engagement
Compatible with AT10 pulleys on both sides.
PAZ / PAR Fabric Options
Reduced friction, quieter operation, enhanced durability.
Cleats or Special Functional Elements
Available on request for synchronized conveying.
Custom Lengths & Widths
Tailored to OEM machinery and specific layouts.
Multi-shaft power transmission systems
Serpentine or reverse-bend drive layouts
Packaging and processing machinery
Automation equipment with dual engagement requirements
Compact OEM machines requiring reduced component count
DAT10 belts are typically selected where single-sided AT10 belts cannot achieve the required drive configuration.
| Feature | AT10 | DAT10 |
|---|---|---|
| Tooth Configuration | Single-sided | Double-sided |
| Drive Direction | One-sided | Bidirectional |
| System Complexity | Standard | Complex / Multi-shaft |
| Typical Use | Transmission & conveying | Dual engagement drives |
Choose DAT10 when power must be transmitted on both sides of the belt or when space-saving drive layouts are required.
Accurate double-sided tooth geometry
Stable pitch and low elongation
Strong capability for OEM customization
Export-oriented manufacturing standards
UYANG BELTING focuses on engineering-grade timing belt solutions for complex industrial drive systems.
For fast quotation and technical support, please provide:
Required belt width and length
Endless type (open / welded / truly endless)
Tension member preference
Pulley configuration and layout
Application details (load, speed, environment)
