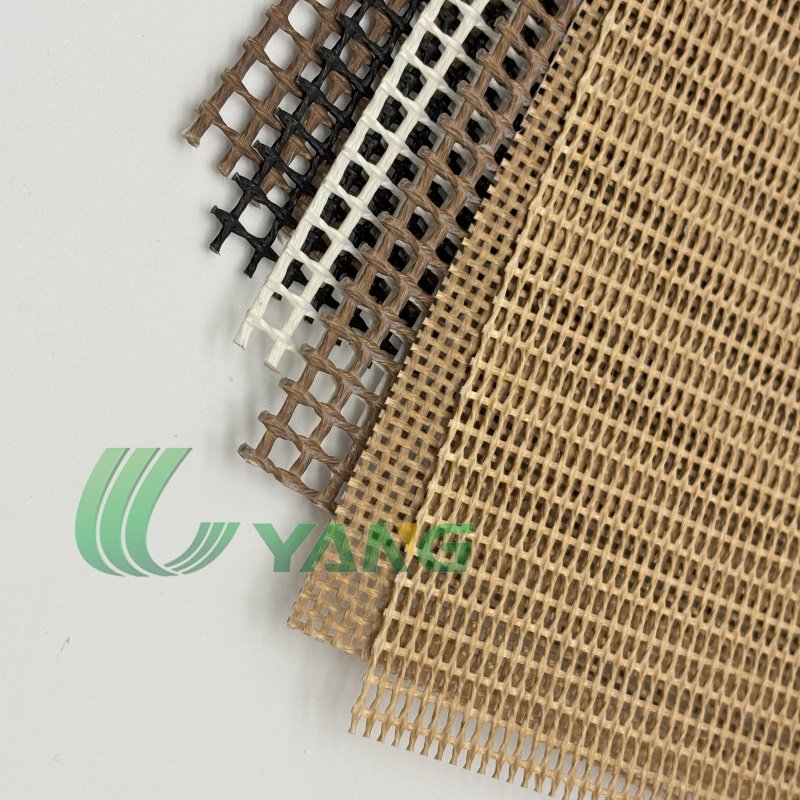

UYANG PTFE coated fiberglass mesh conveyor belt is a high-performance material designed for high-temperature drying and conveying applications. Manufactured from high-strength fiberglass fabric and coated with premium PTFE (Polytetrafluoroethylene) resin, it combines excellent thermal resistance, chemical stability, and non-stick surface performance in one lightweight, open-mesh structure.
UYANG PTFE coated fiberglass mesh conveyor belt is a high-performance material designed for high-temperature drying and conveying applications. Manufactured from high-strength fiberglass fabric and coated with premium PTFE (Polytetrafluoroethylene) resin, it combines excellent thermal resistance, chemical stability, and non-stick surface performance in one lightweight, open-mesh structure.
Temperature Resistance: Operates from -140°C up to 300°C.
Air Permeability: High open area allows efficient airflow, improving drying performance.
Chemical Resistance: Excellent resistance to most chemical agents and solvents.
Non-Stick Surface: Resins, paints, chemicals, and almost all adhesive substances can be easily removed.
Flex Fatigue Resistance: High tensile strength and excellent bending resistance; suitable for small pulley diameters.
With a continuous working temperature range from -140°C to 300°C, this mesh belt maintains dimensional stability even under extreme heat conditions. The open-grid design allows optimal airflow circulation, significantly improving drying efficiency while reducing energy consumption. Its low friction and non-adhesive surface prevent material build-up, minimizing downtime and simplifying cleaning.
The belt offers high tensile strength and superior flex fatigue resistance, making it suitable for small pulley diameters and continuous production lines. It is widely used in textile drying, screen printing, UV curing systems, food processing, heat shrink packaging tunnels, and various industrial drying equipment.
Available in multiple mesh sizes and widths up to 4000 mm, the PTFE mesh belt can be customized to meet different temperature, load, and application requirements.
| Specification: | |||||||
| Model | Color | Mesh
Sizes (mm) |
Max Width
(mm) |
Weight
( g/sqm) |
PTFE
Content |
Tensile
Strength |
Remarks |
| YS6001 | Brown | 1 x1 | 4000 | 443 | 30 | 1780/1650 | |
| YS6001BJ | Black | 1×1 | 4000 | 443 | 30 | 1780/1650 | anti-static |
| YS6003 | Black | 4×4 | 4000 | 480 | 32 | 1330/1700 | |
| YS6004 | Brown | 4×4 | 4000 | 475 | 31 | 3200/1700 | |
| YS6007 | Brown | 4×4 | 4000 | 600 | 31 | 3200/3500 | Warp Kevlar |
| YS6008 | Brown | 4×4 | 4000 | 560 | 27 | 1700/2600 | |
| YS6008S | Brown | 4×4 | 4000 | 680 | 32 | 2520/3500 | strong |
| YS6012 | Black | 4×4 | 4000 | 570 | 28 | 1500/2500 | |
| YS6013 | Brown | 10×10 | 4000 | 360 | 24 | 970/1400 | |
| YS6015 | Brown | 2×2.5 | 4000 | 520 | 20 | 2150/1450 | |
| YS6015S | Brown | 2×4 | 4000 | 620 | 31 | 3250/1650 | Strong |
Printing & Drying: Textile printing, dyeing, and drying processes; nonwoven fabric drying; silk screen printing drying; and other drying equipment.
Screen Printing & UV Systems: Tunnel dryers, offset printing machines, UV series curing units, paper edge drying, UV drying systems, plastic product drying, and general drying conveyor systems.
General Drying Applications: Suitable for drying various materials, especially moisture-removal drying conveyors.
Hot-Air Drying: Conveyor systems used in hot air circulation drying processes.
Food Processing: High-temperature drying of baked goods, food thawing, roasting, packaging heat shrink tunnels; commonly used in dehydration processes and rapid oil removal.
Special Industrial Environments: Suitable for high-temperature and corrosion-resistant conveying conditions.
