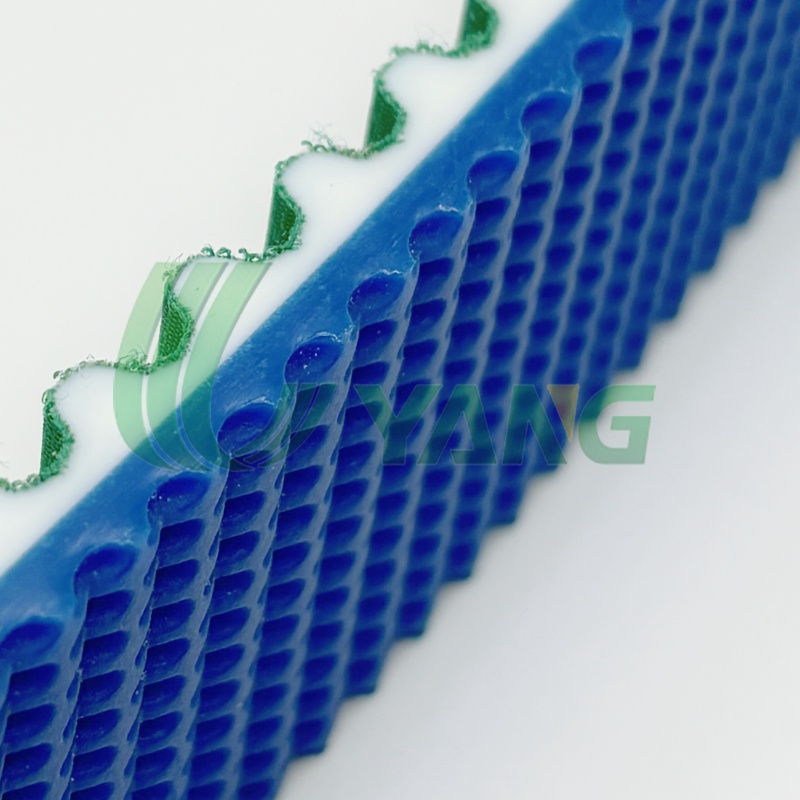

This HTD 8M Polyurethane Timing Belt combines:
High torque HTD 8M tooth profile
PAR fabric coating on tooth side
High-friction rough top PU backing
The configuration is designed for applications requiring both:
Efficient synchronous power transmission
Enhanced product grip on the conveying side
It is widely used in synchronous conveying systems where slip must be minimized while maintaining accurate positioning.
This HTD 8M Polyurethane Timing Belt combines:
High torque HTD 8M tooth profile
PAR fabric coating on tooth side
High-friction rough top PU backing
The configuration is designed for applications requiring both:
Efficient synchronous power transmission
Enhanced product grip on the conveying side
It is widely used in synchronous conveying systems where slip must be minimized while maintaining accurate positioning.
Brand: UYANG BELTING
Model: HTD 8M – PAR + Rough Top
Pitch: 8 mm
Tooth Profile: HTD (Curvilinear)
Tooth Surface: Green Fabric (PAR)
Back Surface: Blue PU Rough Top (Grain Pattern)
Tension Member: Steel Cord / Aramid Cord (optional)
8 mm pitch
High torque transmission capability
Reduced tooth shear stress
Lower friction with pulleys
Improved tooth wear resistance
Reduced noise and vibration
High friction surface
Enhanced grip for product transport
Suitable for inclined conveying
High torque transmission
Improved tooth durability
Reduced pulley wear
Enhanced product grip
Stable synchronization under load
Suitable for inclined conveyors
| Item | Specification |
|---|---|
| Tooth Profile | HTD 8M |
| Pitch | 8 mm |
| Tooth Surface | PAR (Green Fabric) |
| Back Surface | Rough Top PU (Grain Pattern) |
| Belt Body | TPU |
| Reinforcement | Steel / Aramid |
| Temperature Range | −20 °C to +80 °C |
| Manufacturing Type | Open End / Endless / Truly Endless |
Inclined conveyors
Synchronous product transport systems
Packaging and carton handling
Automation and assembly lines
Systems requiring grip + positioning accuracy
This configuration is ideal when both high torque drive and surface grip are required.
| Feature | Standard HTD8M | PAR + Rough Top |
|---|---|---|
| Tooth Durability | Standard | Improved |
| Pulley Friction | Standard | Reduced |
| Product Grip | Low | High |
| Incline Capability | Moderate | Excellent |
| Noise Level | Standard | Lower |
Accurate HTD geometry
Fabric lamination capability
Custom top cover options
Industrial-grade manufacturing
UYANG BELTING provides customized synchronous conveying solutions beyond standard transmission belts.
Please provide:
Belt width and length
Endless type
Load and speed
Incline angle (if applicable)
Product type being conveyed
