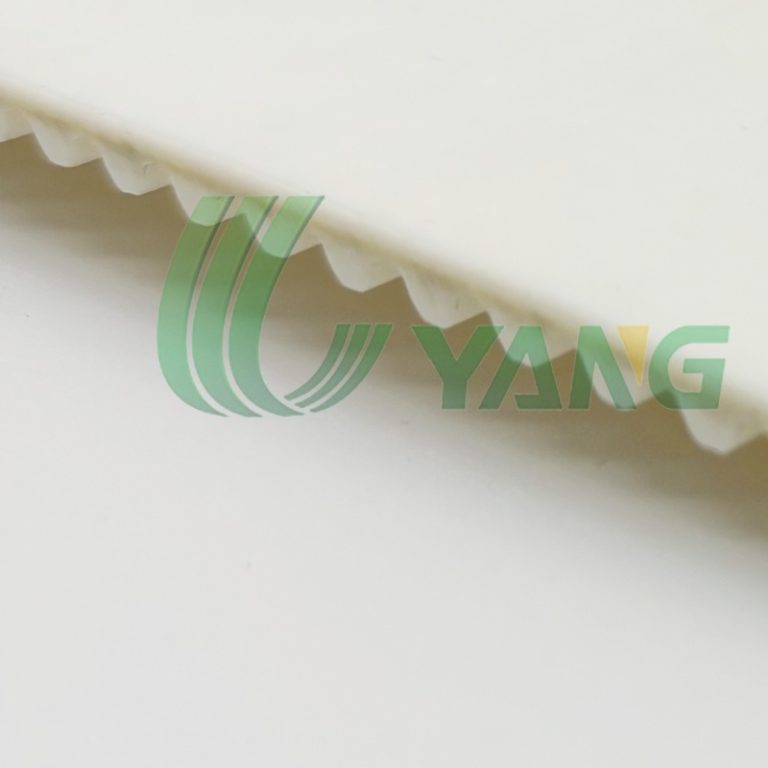

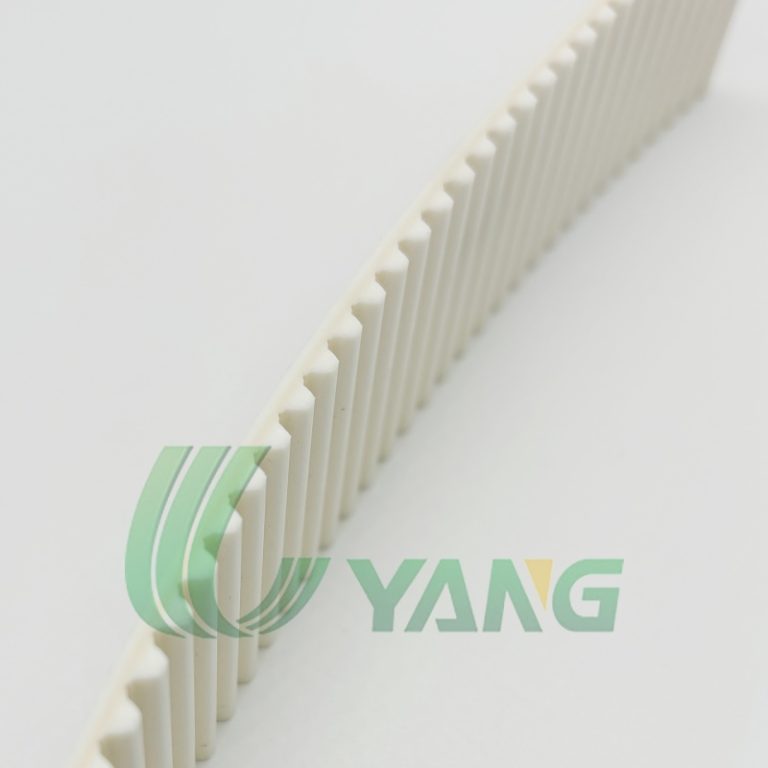

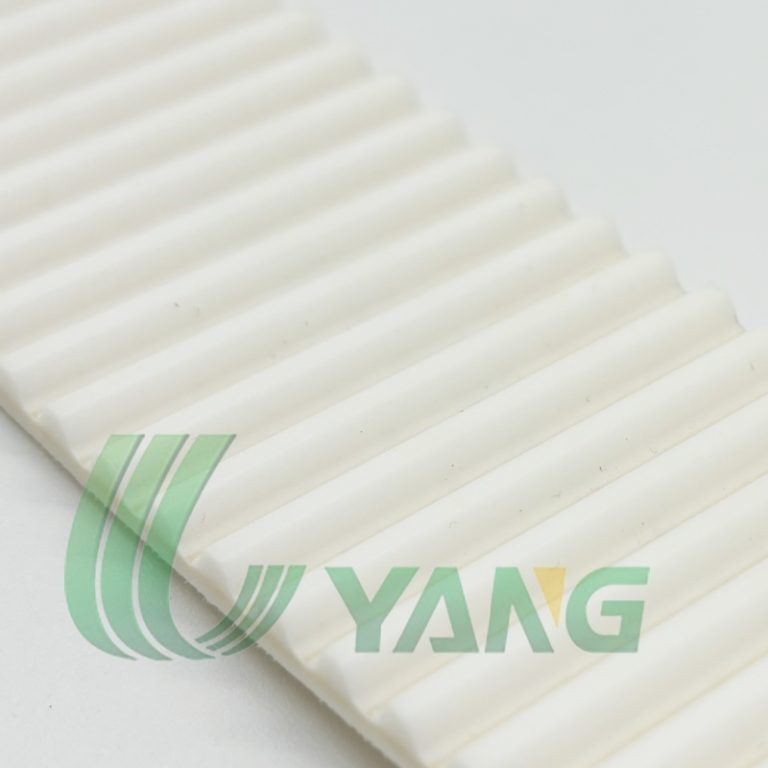

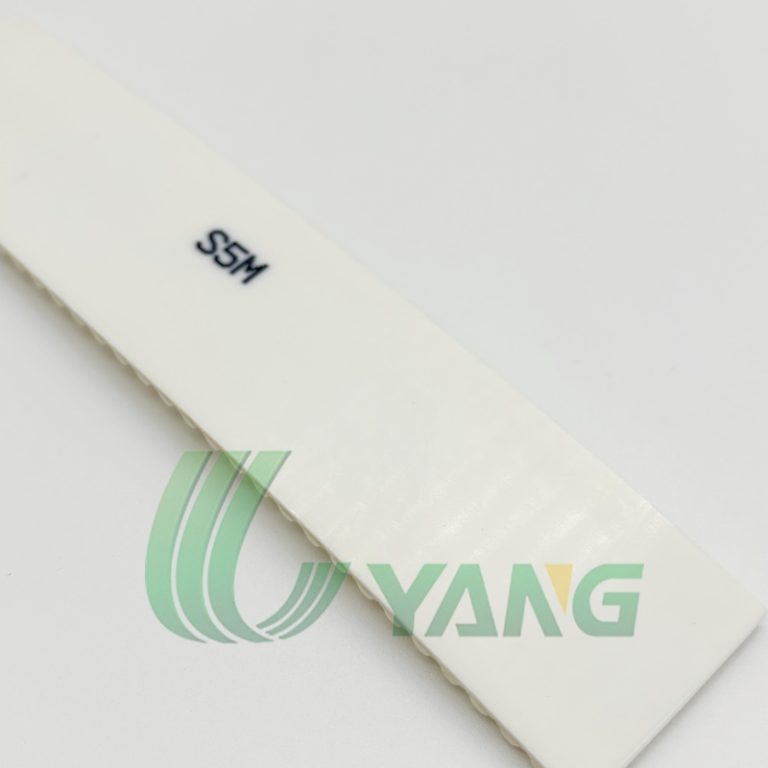

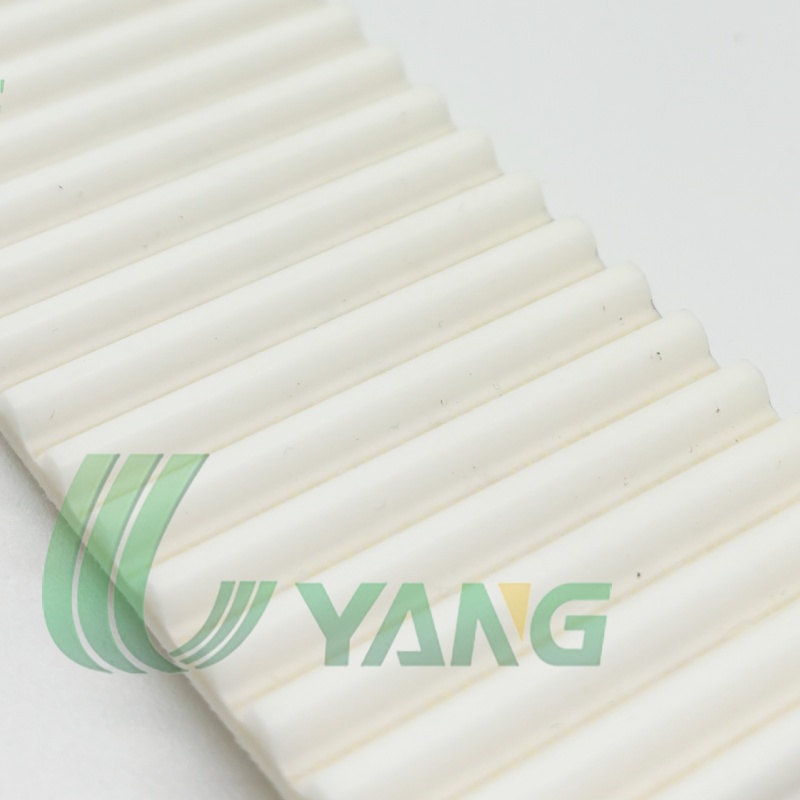

The UYANG S5M Polyurethane Timing Belt is a curvilinear synchronous belt designed for smooth, efficient, and reliable power transmission in medium-duty industrial applications.
With its 5 mm arc-shaped tooth profile, S5M belts provide improved load distribution compared to trapezoidal belts, resulting in:
Reduced tooth stress
Lower vibration
Smoother meshing
Improved operational stability
Manufactured from high-quality TPU and reinforced with low-elongation tensile cords, UYANG S5M belts ensure accurate synchronization and long service life in automation and conveying systems.
The UYANG S5M Polyurethane Timing Belt is a curvilinear synchronous belt designed for smooth, efficient, and reliable power transmission in medium-duty industrial applications.
With its 5 mm arc-shaped tooth profile, S5M belts provide improved load distribution compared to trapezoidal belts, resulting in:
Reduced tooth stress
Lower vibration
Smoother meshing
Improved operational stability
Manufactured from high-quality TPU and reinforced with low-elongation tensile cords, UYANG S5M belts ensure accurate synchronization and long service life in automation and conveying systems.
Brand: UYANG BELTING
Model: S5M PU Timing Belt
Pitch: 5 mm
Tooth Profile: S5M (Curvilinear)
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
5 mm Curvilinear Tooth Geometry
Designed for smooth engagement and reduced backlash.
Balanced Torque Capacity
Suitable for medium-load drive systems.
Low Noise & Vibration
Optimized meshing improves operational comfort.
High Dimensional Stability
Steel or aramid cords maintain pitch accuracy.
Wear & Chemical Resistance
TPU body resists oils, grease, and industrial environments.
| Item | Specification |
|---|---|
| Tooth Profile | S5M (Curvilinear) |
| Pitch | 5 mm |
| Standard Widths | 9 / 15 / 25 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Endless Type | Open End / Endless / Truly Endless |
Lengths and constructions can be customized according to application requirements.
Automation equipment
Packaging and labeling machinery
Robotics and motion systems
Precision conveyor drives
Medium-duty industrial transmission
S5M belts are commonly selected when smooth transmission and moderate torque capacity are required.
| Feature | S5M | T5 |
|---|---|---|
| Tooth Type | Curvilinear | Trapezoidal |
| Pitch | 5 mm | 5 mm |
| Torque Distribution | Even | Concentrated |
| Noise Level | Lower | Standard |
| Typical Use | Smooth transmission | General transmission |
Choose S5M when reduced vibration and improved meshing stability are priorities.
Accurate curvilinear tooth geometry
Stable pitch accuracy and low elongation
Suitable for automation and motion systems
OEM customization support
UYANG BELTING focuses on practical, performance-driven timing belt solutions for industrial applications.
To prepare an accurate quotation, please provide:
Required belt width and length
Endless type (open / endless / truly endless)
Tension member preference
Load, speed, and pulley diameter
Application environment
