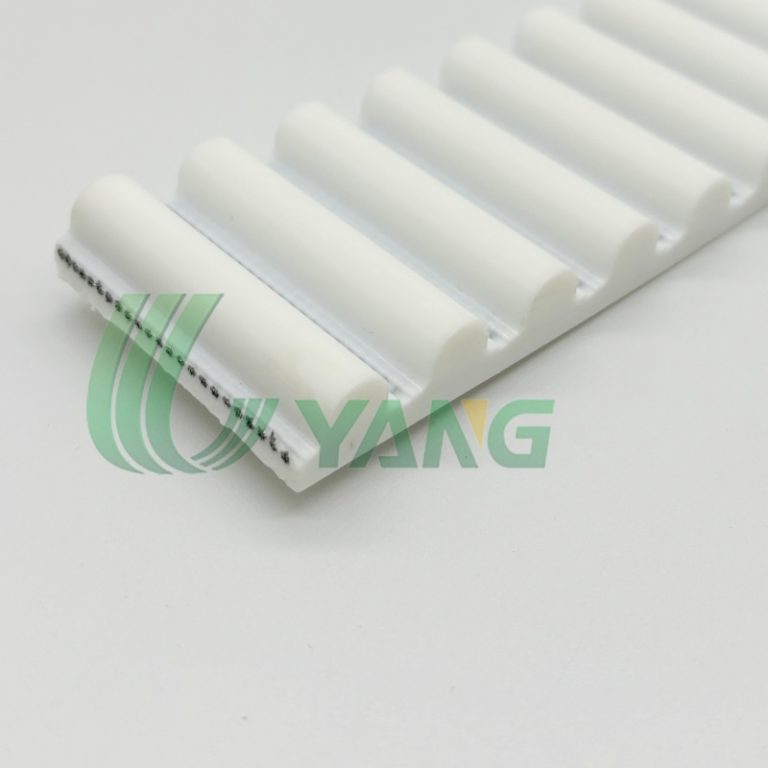

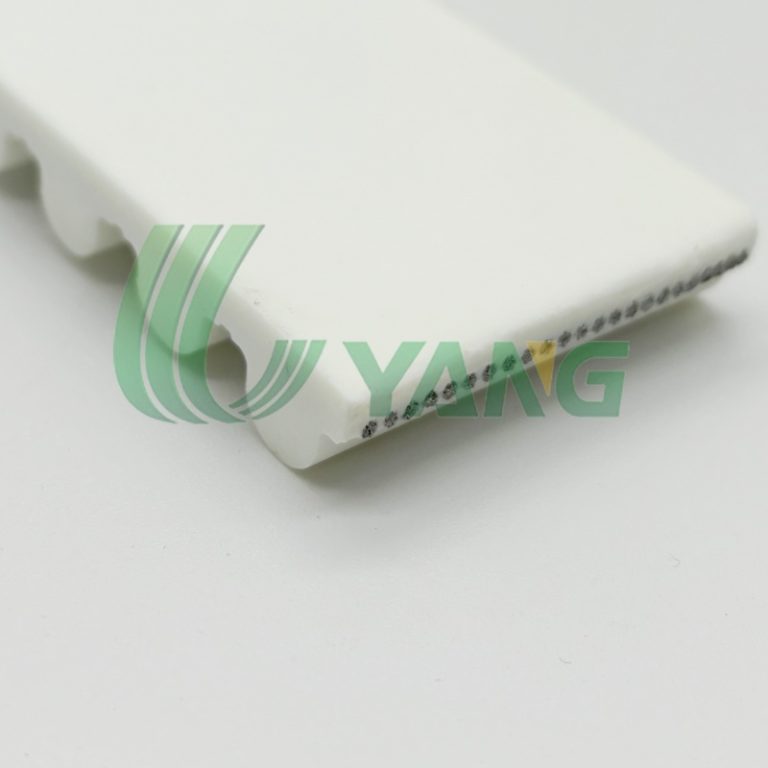

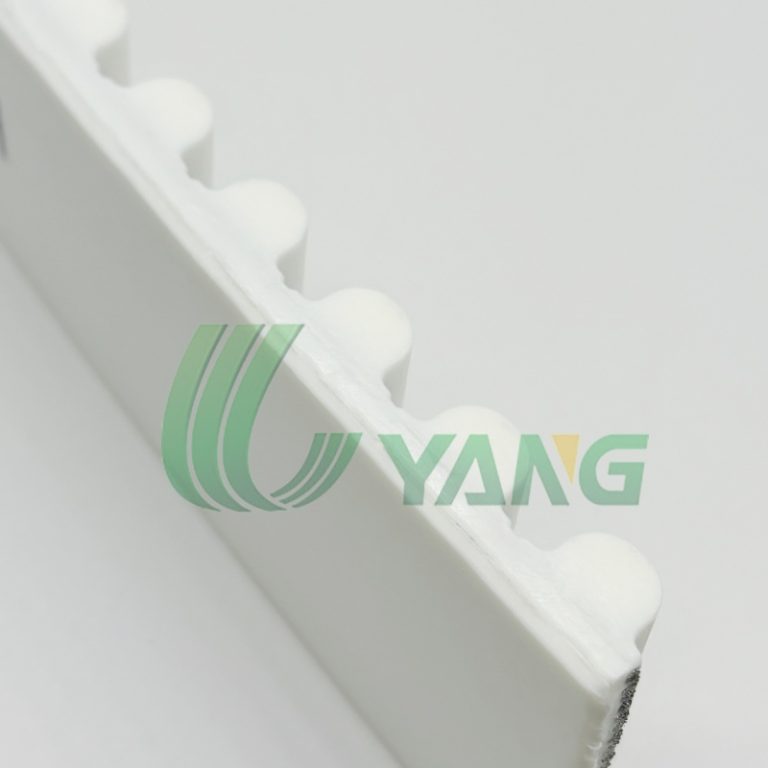

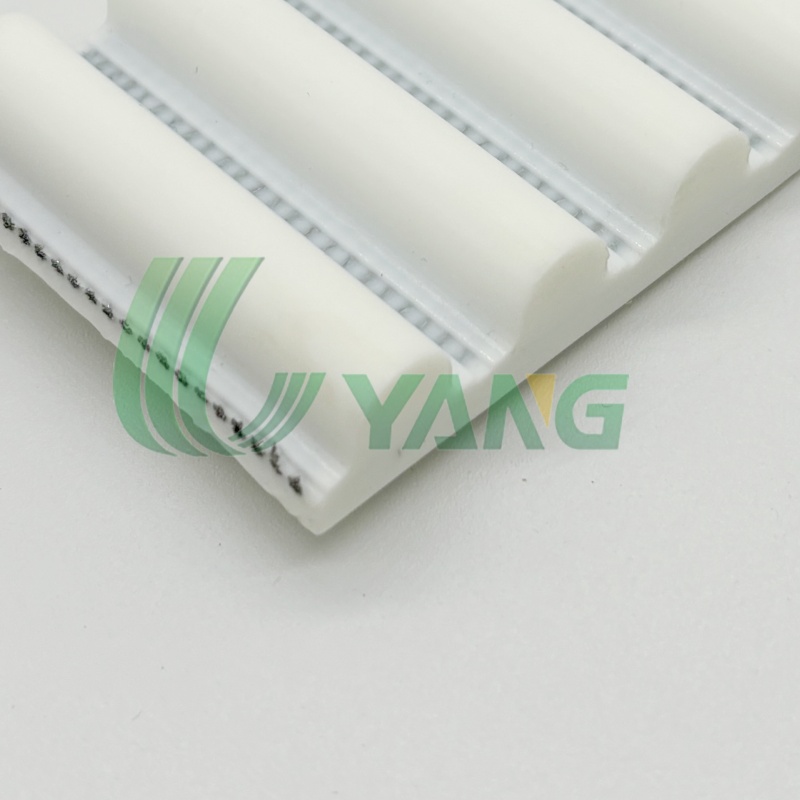

The HTD 14M Polyurethane Timing Belt is a large-pitch synchronous belt engineered for high torque and heavy-duty industrial power transmission.
With its 14 mm curvilinear HTD tooth profile, the belt distributes load evenly across the tooth surface, minimizing stress concentration and improving torque capacity.
HTD 14M belts are designed for large drives, high power transmission, and continuous-duty industrial applications where reliability and durability are critical.
Manufactured from wear-resistant TPU and reinforced with high-strength tensile cords, UYANG HTD 14M belts deliver low elongation, stable synchronization, and long service life under heavy loads.
The HTD 14M Polyurethane Timing Belt is a large-pitch synchronous belt engineered for high torque and heavy-duty industrial power transmission.
With its 14 mm curvilinear HTD tooth profile, the belt distributes load evenly across the tooth surface, minimizing stress concentration and improving torque capacity.
HTD 14M belts are designed for large drives, high power transmission, and continuous-duty industrial applications where reliability and durability are critical.
Manufactured from wear-resistant TPU and reinforced with high-strength tensile cords, UYANG HTD 14M belts deliver low elongation, stable synchronization, and long service life under heavy loads.
Brand: UYANG BELTING
Model: HTD 14M PU Timing Belt
Pitch: 14 mm
Tooth Profile: HTD (High Torque Drive – Curvilinear)
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
14 mm Curvilinear HTD Tooth Profile
Designed for maximum torque transmission and load distribution.
High Power Capacity
Suitable for large pulleys and long center distances.
Stable Under Heavy Loads
Reduced tooth shear stress compared to trapezoidal profiles.
Low Elongation Reinforcement
Steel or aramid cords ensure dimensional stability.
Durable TPU Construction
Resistant to abrasion, oils, grease, and harsh industrial environments.
| Item | Specification |
|---|---|
| Tooth Profile | HTD 14M |
| Pitch | 14 mm |
| Standard Widths | 40 / 55 / 85 / 115 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Endless Type | Open End / Endless / Truly Endless |
Widths and lengths can be customized based on application requirements.
Heavy-duty conveyors
Mining and bulk material handling systems
Woodworking and rubber machinery
Large packaging and palletizing systems
Industrial automation requiring high torque capacity
HTD 14M belts are commonly selected where large torque transmission and long-term reliability are essential.
| Feature | HTD 8M | HTD 14M |
|---|---|---|
| Pitch | 8 mm | 14 mm |
| Load Capacity | High | Very High |
| Pulley Size | Medium–Large | Large |
| Typical Use | Industrial drives | Heavy-duty transmission |
Choose HTD 14M when higher torque, larger pulley diameters, and heavy loads are involved.
Accurate curvilinear HTD geometry
Stable pitch and low elongation under load
Designed for heavy industrial duty
OEM customization support
UYANG BELTING focuses on robust high-torque timing belt solutions built for demanding environments.
To prepare an accurate quotation, please provide:
Required belt width and length
Endless type (open / endless / truly endless)
Tension member preference
Load, speed, and pulley diameter
Application environment
📩 Contact UYANG BELTING for professional HTD 14M PU timing belt solutions.
