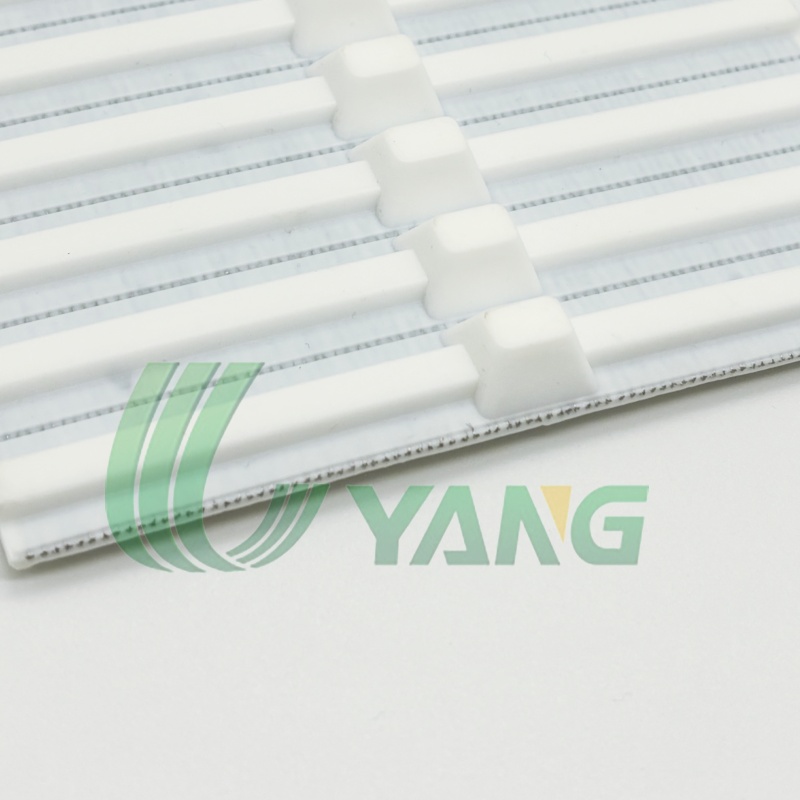

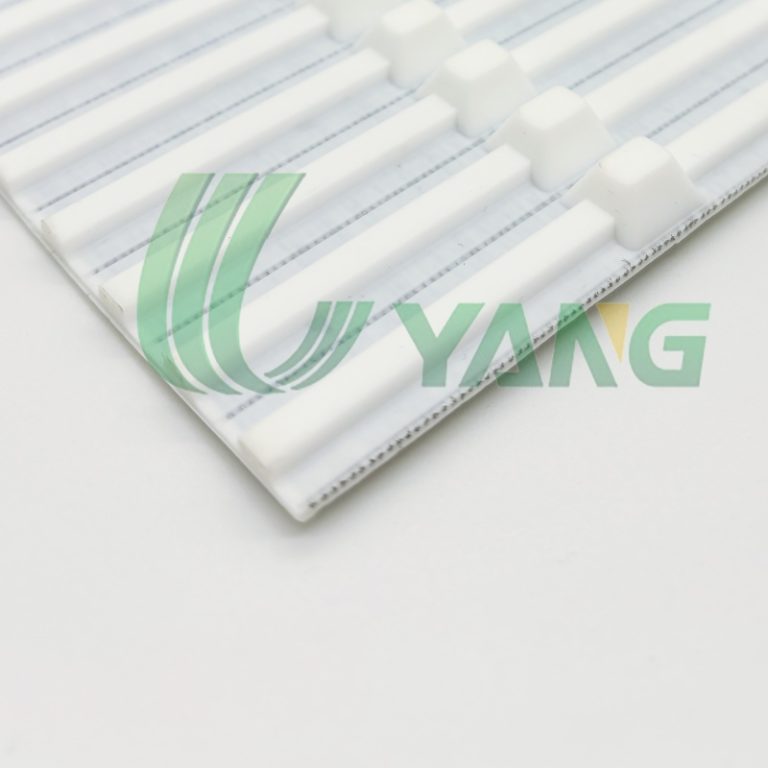

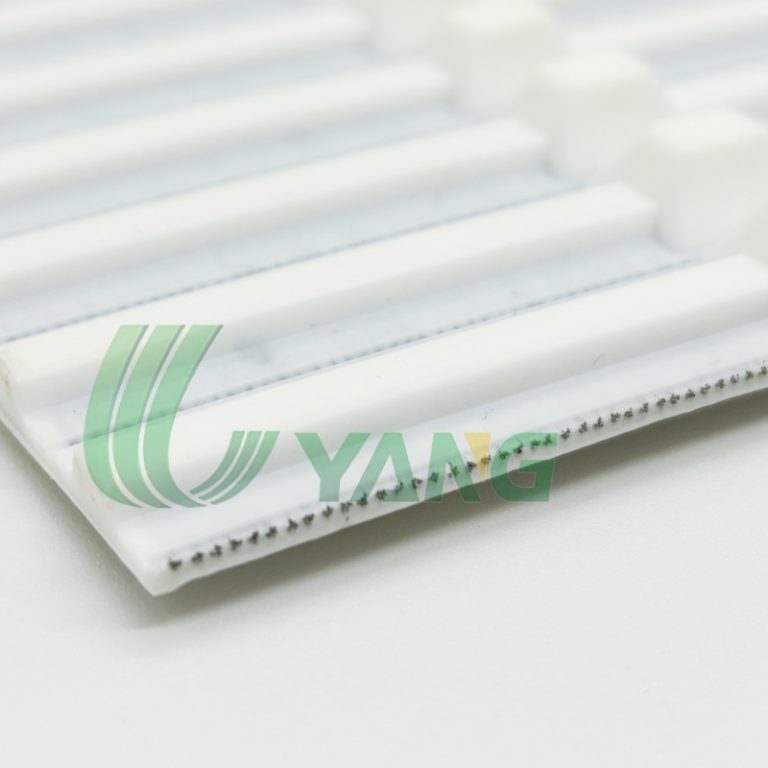

The UYANG HK13 Polyurethane Timing Belt is a functional timing belt based on the H type inch pitch profile, featuring an integrated K13 polyurethane guide molded on the belt back.
Structurally, HK13 combines the high load transmission capability of H type timing belts with a K13 guide profile designed for enhanced guiding and load stability.
The guide is molded as part of the belt, not glued or welded, ensuring reliable performance under continuous or heavy-duty operating conditions.
HK13 belts are commonly used in guided conveying systems, positioning lines, and industrial automation equipment where higher guiding strength than K10 is required.
The UYANG HK13 Polyurethane Timing Belt is a functional timing belt based on the H type inch pitch profile, featuring an integrated K13 polyurethane guide molded on the belt back.
Structurally, HK13 combines the high load transmission capability of H type timing belts with a K13 guide profile designed for enhanced guiding and load stability.
The guide is molded as part of the belt, not glued or welded, ensuring reliable performance under continuous or heavy-duty operating conditions.
HK13 belts are commonly used in guided conveying systems, positioning lines, and industrial automation equipment where higher guiding strength than K10 is required.
Brand: UYANG BELTING
Model: HK13 PU Timing Belt
Base Belt Type: H Type Timing Belt
Pitch: 0.500 inch (12.7 mm)
Back Guide: K13 Polyurethane Guide Profile
Material: Thermoplastic Polyurethane (TPU)

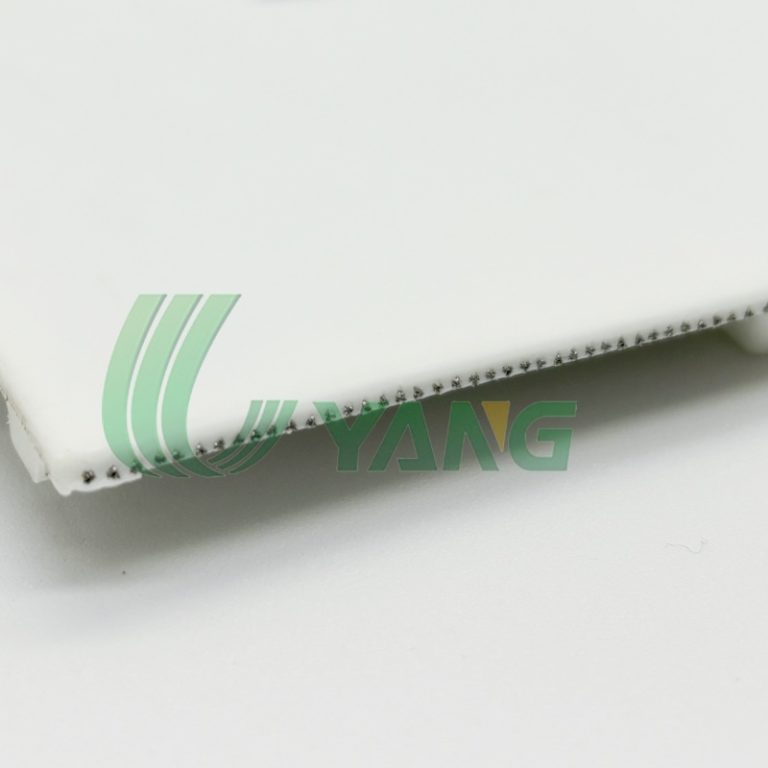

Tension Member: Steel Cord / Aramid Cord (optional)
H Type Timing Belt Base (0.500″ Pitch)
Suitable for medium to high load power transmission.
Integrated K13 PU Guide Profile
Larger and stronger guide geometry compared to K10.
Improved Lateral Stability
Prevents belt wandering and improves conveying accuracy.
One-Piece Molded Construction
No risk of guide detachment during operation.
Durable TPU Material
Resistant to abrasion, oils, grease, and industrial environments.
| Item | Specification |
|---|---|
| Tooth Profile | H Type (Inch Series) |
| Pitch | 0.500 inch (12.7 mm) |
| Back Guide | K13 integrated PU guide |
| Standard Widths | 38 / 50 / 75 / 100 mm (custom available) |
| Operating Temperature | −20 °C to +80 °C |
| Belt Construction | TPU body + steel / aramid cords |
| Endless Type | Open End / Endless / Truly Endless |
Guide dimensions and layout can be customized based on application requirements.
Heavy-duty guided conveyors
Industrial transfer and positioning systems
Packaging and processing machinery
Automated production and assembly lines
OEM equipment requiring strong belt guidance
HK13 belts are typically selected when standard H belts or HK10 belts cannot provide sufficient guiding strength.
| Feature | HK10 | HK13 |
|---|---|---|
| Base Belt | H Type | H Type |
| Guide Profile | K10 | K13 |
| Guiding Strength | Medium | High |
| Load Stability | High | Very High |
| Typical Use | General guided conveying | Heavy-duty guided conveying |
Choose HK13 when higher lateral forces, heavier loads, or longer conveyors are involved.
Clear structure: H base belt + K13 guide
One-piece molded guide for high reliability
Stable pitch accuracy and guiding repeatability
OEM customization capability
UYANG BELTING focuses on function-integrated timing belt solutions built from first principles.
For accurate quotation and technical support, please provide:
Belt width and length
Endless type (open / endless / truly endless)
K13 guide dimensions and positioning
Load, speed, and conveyor layout
Application environment
