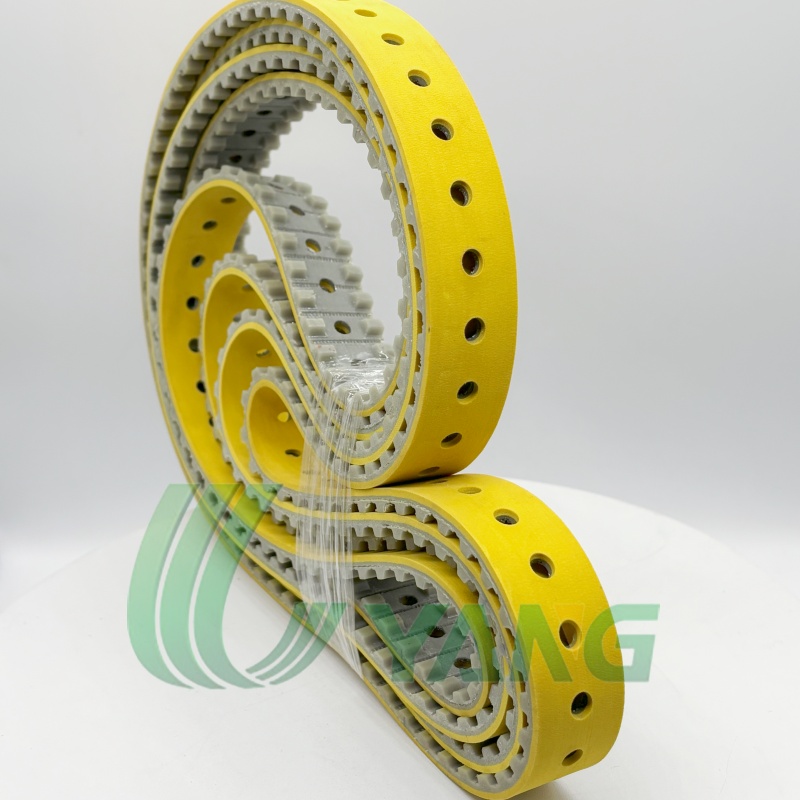

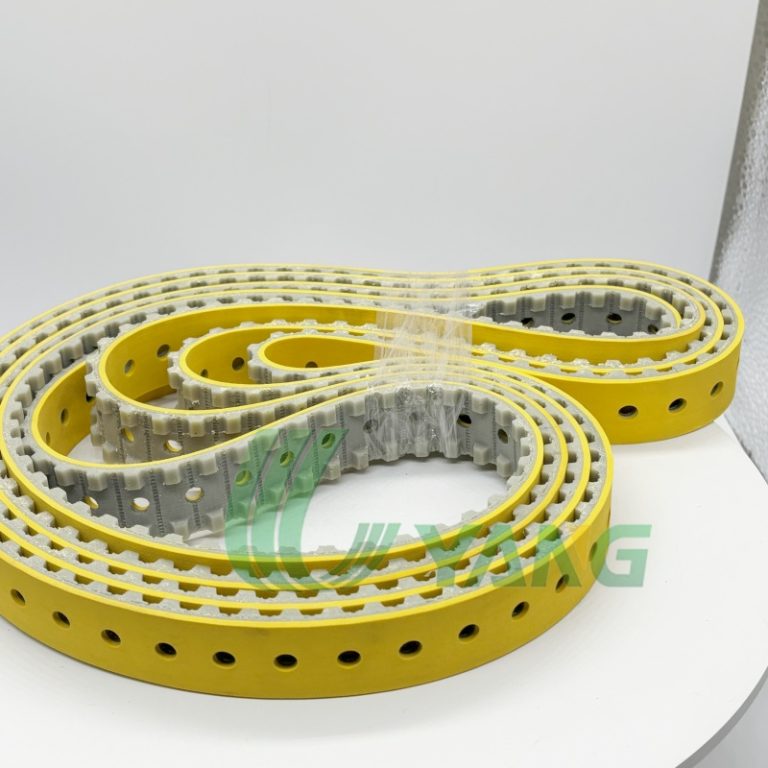

This customized T10 timing belt (24 mm width, 900 mm length) features a 2 mm yellow PU top cover, precision center grinding (13 mm width), and 61 evenly distributed Ø5 mm through holes.
Designed for vacuum transport and high-precision positioning systems, the belt ensures stable synchronization, uniform tension distribution, and consistent performance in automated production lines.
This customized T10 timing belt (24 mm width, 900 mm length) features a 2 mm yellow PU top cover, precision center grinding (13 mm width), and 61 evenly distributed Ø5 mm through holes.
Designed for vacuum transport and high-precision positioning systems, the belt ensures stable synchronization, uniform tension distribution, and consistent performance in automated production lines.
Brand: UYANG BELTING
Base Profile: T10 (10 mm Pitch)
Belt Width: 24 mm
Belt Length: 900 mm (90 Teeth)
Backing: 2 mm Yellow PU Cover
Processing: Center Ground 13 mm
Perforation: 61 × Ø5 mm Through Holes
Construction: Truly Endless (Seamless)
90 teeth (900 mm length)
Stable trapezoidal tooth profile
Suitable for precise indexing and synchronous conveying
No welded joint
Continuous steel cord reinforcement
Uniform tensile strength
Improved fatigue resistance
Increased wear resistance
Enhanced load support
Smooth conveying surface
Precision surface machining
Ensures flat and consistent contact zone
Ideal for sensor alignment or vacuum sealing areas

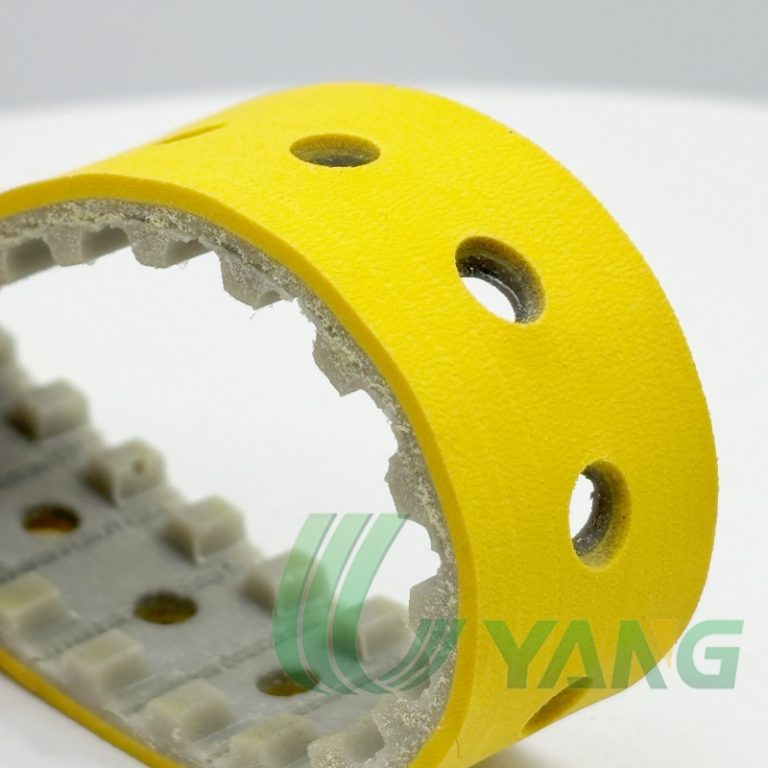

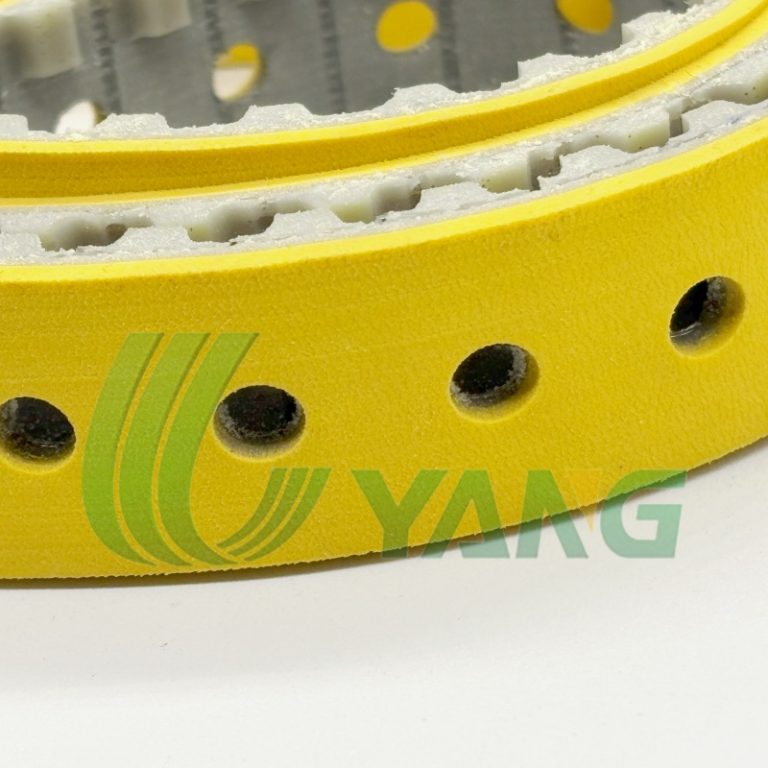

Evenly spaced precision punching
Designed for vacuum suction systems
Supports air flow and stable product holding
Uniform strength across full circumference
High dimensional stability
Accurate hole positioning
Suitable for high-speed automation
Designed for vacuum-based conveying systems
Vacuum conveyor systems
Pick & place automation
Electronics assembly lines
Packaging and inspection systems
Precision indexing transport
Precision molding capability
CNC perforation processing
Surface grinding control
Fully customizable structural design
Export-grade quality standards
UYANG BELTING provides engineered timing belt solutions tailored to specific automation requirements.
To develop a similar customized belt, please provide:
Tooth profile and pitch
Belt width and circumference
Backing thickness
Hole diameter and spacing
Surface processing requirements
Load and operating speed
