The UYANG T5 Polyurethane Timing Belt is a widely used synchronous belt designed for compact transmission systems and light to medium load applications.
With a 5 mm trapezoidal tooth profile, T5 belts offer stable power transmission, smooth operation, and reliable synchronization in space-limited designs.
Manufactured from high-quality thermoplastic polyurethane and reinforced with low-elongation tensile cords, UYANG T5 timing belts provide consistent performance, good wear resistance, and long service life in a wide range of industrial environments.
The UYANG T5 Polyurethane Timing Belt is a widely used synchronous belt designed for compact transmission systems and light to medium load applications.
With a 5 mm trapezoidal tooth profile, T5 belts offer stable power transmission, smooth operation, and reliable synchronization in space-limited designs.
Manufactured from high-quality thermoplastic polyurethane and reinforced with low-elongation tensile cords, UYANG T5 timing belts provide consistent performance, good wear resistance, and long service life in a wide range of industrial environments.

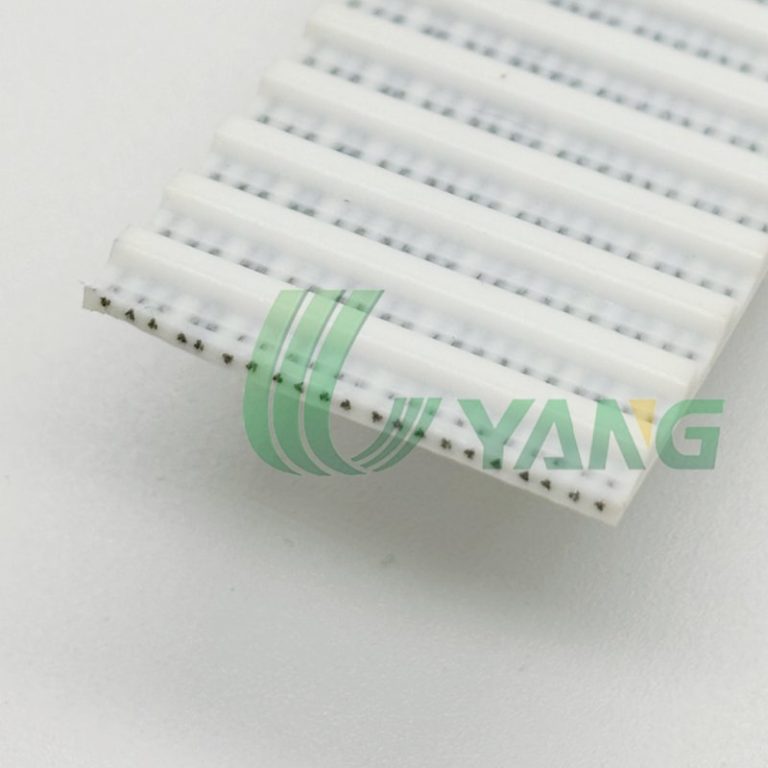

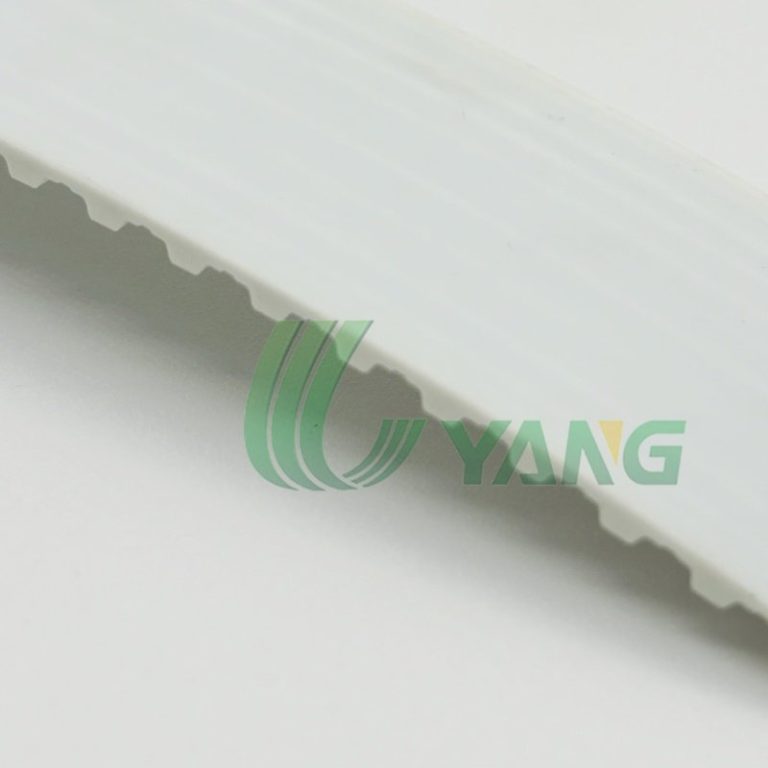

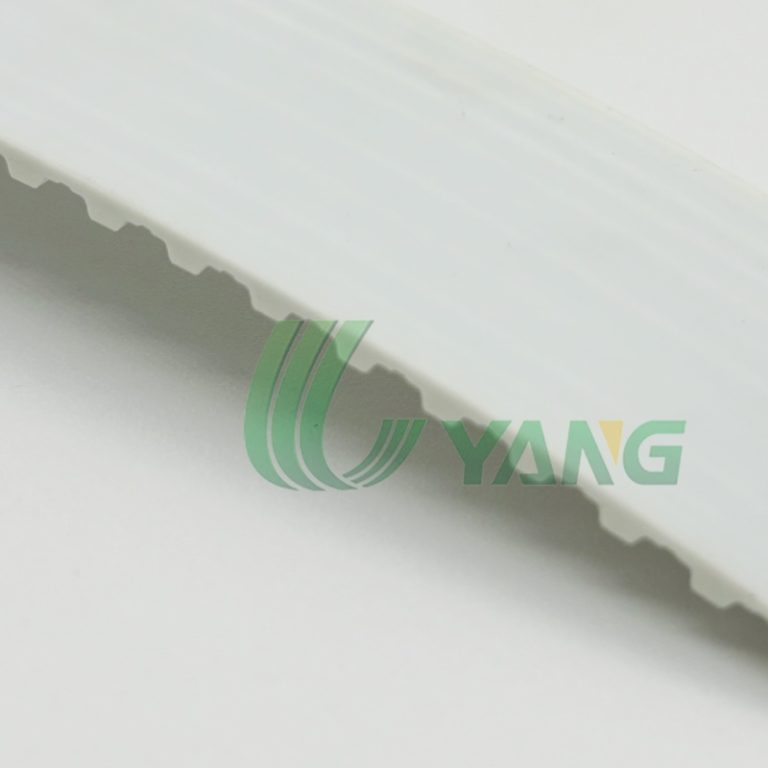

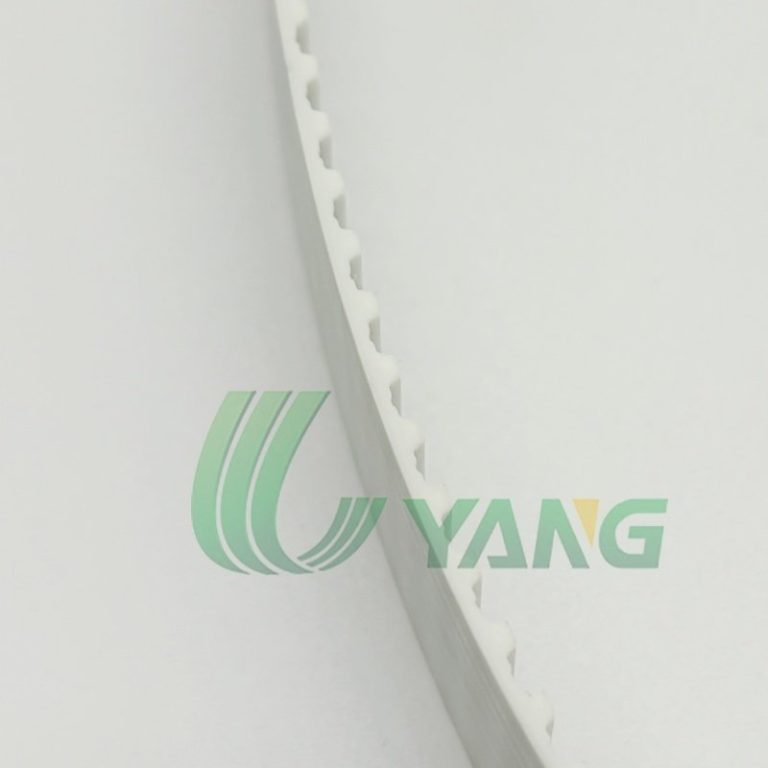

UYANG T5 Polyurethane Timing Belt
Brand: UYANG BELTING
Model: T5 PU Timing Belt
Pitch: 5 mm
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
T5 Trapezoidal Tooth Profile (5 mm Pitch)
Proven geometry for stable meshing and reliable synchronization.
Compact Design
Suitable for small pulleys and limited installation space.
Stable Power Transmission
Maintains consistent speed ratio with minimal slip.
Wear & Abrasion Resistance
TPU body resists oils, grease, ozone, and general industrial conditions.
Cost-Effective Solution
Ideal for standard machinery and general automation equipment.
| Item | Value |
|---|---|
| Tooth Profile | T (Trapezoidal) |
| Pitch | 5 mm |
| Standard Widths | 10 / 15 / 20 / 25 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Color | White / Natural (custom colors available) |
| Manufacturing Type | Open End / Welded Endless / Truly Endless |
Specifications can be customized according to application requirements.
T5 timing belts can be supplied with various surface configurations to meet conveying and motion requirements:
PAZ (Tooth Side Fabric):
Reduced friction and quieter operation.
PAR (Back Side Fabric):
Low friction backside for slider beds and idlers.
PAZ + PAR:
Improved durability and smoother running.
PU or Rubber Backings:
For light conveying or positioning applications.
Light-duty automation equipment
Packaging and labeling machines
Office and commercial machinery
Small conveyors and transfer systems
Compact power transmission units
T5 belts are especially suitable where compact size, stable synchronization, and cost efficiency are required.
| Feature | T5 | AT5 |
|---|---|---|
| Tooth Profile | Trapezoidal | Optimized AT |
| Precision | Medium–High | Higher |
| Load Capacity | Light–Medium | Medium |
| Typical Use | General transmission | Precision automation |
Choose T5 for standard applications and economical designs;
choose AT5 when higher positioning accuracy and load stability are required.
Stable quality and consistent pitch accuracy
Flexible customization for OEM projects
Export-oriented production standards
Reliable performance at competitive cost
UYANG focuses on practical, proven solutions for industrial timing belt applications.
For fast quotation and technical support, please provide:
Required belt width and length
Endless type (open / welded / truly endless)
Tension member preference
Backing or surface requirements
Application details (speed, load, environment)
