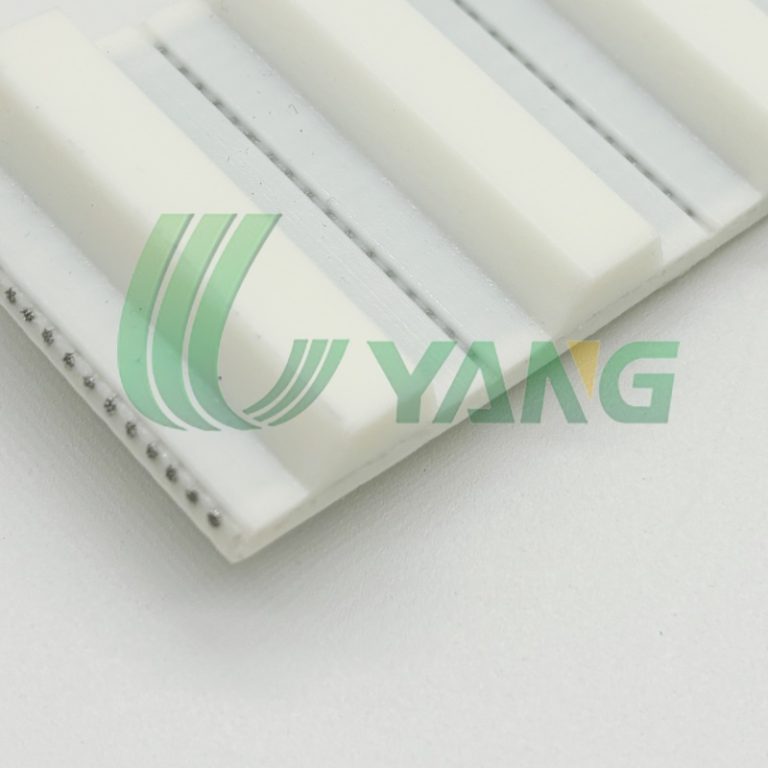

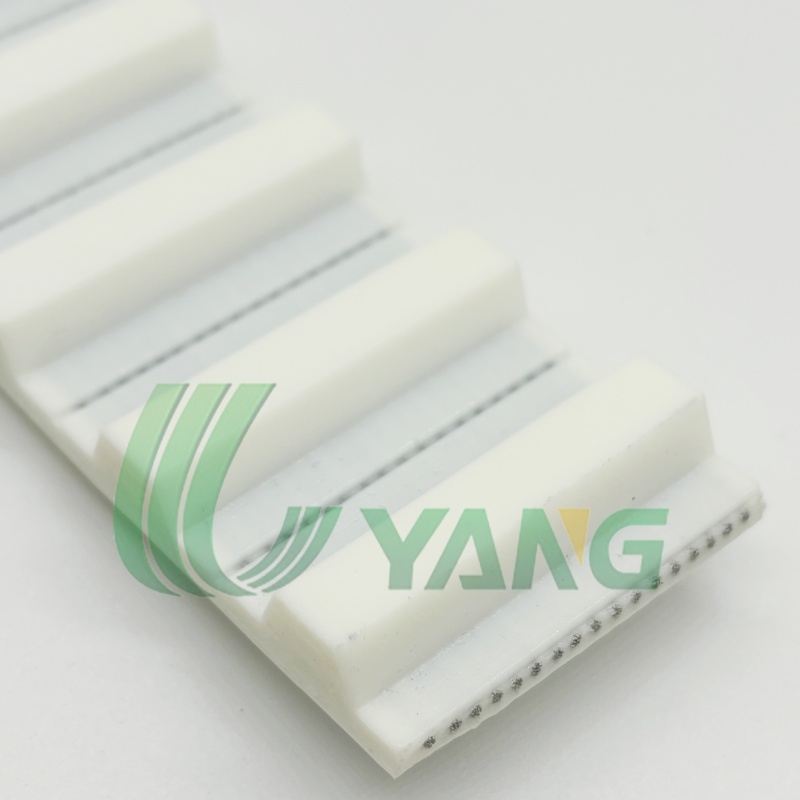

The UYANG T20 Polyurethane Timing Belt is designed for high-torque, heavy-duty power transmission applications where robustness and long service life are critical.
With a 20 mm trapezoidal tooth profile, T20 belts provide strong tooth engagement and reliable synchronization in large-drive systems and continuous-duty machinery.
Manufactured from wear-resistant thermoplastic polyurethane and reinforced with high-strength tensile cords, UYANG T20 timing belts offer excellent load-carrying capability, low elongation, and stable performance under demanding industrial conditions.
The UYANG T20 Polyurethane Timing Belt is designed for high-torque, heavy-duty power transmission applications where robustness and long service life are critical.
With a 20 mm trapezoidal tooth profile, T20 belts provide strong tooth engagement and reliable synchronization in large-drive systems and continuous-duty machinery.
Manufactured from wear-resistant thermoplastic polyurethane and reinforced with high-strength tensile cords, UYANG T20 timing belts offer excellent load-carrying capability, low elongation, and stable performance under demanding industrial conditions.
Brand: UYANG BELTING
Model: T20 PU Timing Belt
Pitch: 20 mm
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
T20 Trapezoidal Tooth Profile (20 mm Pitch)
Proven geometry for high torque transmission and stable meshing.
High Load Capacity
Suitable for large pulleys, long center distances, and heavy-duty drives.
Low Elongation & Dimensional Stability
Steel or aramid cords ensure consistent speed ratio under high tension.
Excellent Wear & Abrasion Resistance
TPU body resists oils, grease, ozone, and harsh industrial environments.
Reliable Continuous Operation
Designed for long service life with reduced maintenance requirements.
| Item | Value |
|---|---|
| Tooth Profile | T (Trapezoidal) |
| Pitch | 20 mm |
| Standard Widths | 25 / 50 / 75 / 100 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Color | White / Natural (custom colors available) |
| Manufacturing Type | Open End / Welded Endless / Truly Endless |
Dimensions, tolerances, and constructions can be customized based on application needs.
T20 timing belts can be supplied with various backing options for transmission or conveying purposes:
PAR (Back Side Fabric):
Low friction backside for slider beds and idlers.
PAZ (Tooth Side Fabric):
Improved meshing, reduced noise, and enhanced durability.
PAZ + PAR:
Recommended for heavy-duty and continuous-duty systems.
PU or Rubber Backings:
For inclined conveying or high-load transport applications.
Heavy-duty industrial power transmission
Large conveyors and material handling systems
Packaging, palletizing, and logistics equipment
Automotive, tire, and rubber industry machinery
Mining, woodworking, and general heavy machinery
T20 belts are typically selected where high torque, durability, and operational stability are more important than compact size or high precision.
| Feature | T20 | AT20 |
|---|---|---|
| Tooth Profile | Trapezoidal | Optimized AT |
| Load Capacity | High | High |
| Positioning Accuracy | Medium | Medium–High |
| Typical Use | Power transmission | Heavy-duty conveying & synchronized drives |
Choose T20 for classic heavy-duty transmission systems;
choose AT20 when improved load distribution and synchronization accuracy are required.
Stable quality and consistent pitch accuracy
Designed for heavy-duty industrial applications
Flexible OEM customization options
Export-oriented manufacturing standards
UYANG focuses on practical performance and long-term reliability, not over-specified solutions.
For fast quotation and technical support, please provide:
Required belt width and length
Endless type (open / welded / truly endless)
Tension member preference
Backing or surface requirements
Application details (load, speed, environment)
| Feature | T5 | T10 | T20 |
|---|---|---|---|
| Pitch | 5 mm | 10 mm | 20 mm |
| Load Capacity | Light–Medium | Medium | High |
| Typical Belt Widths | 10–25 mm | 20–50 mm | 25–100 mm |
| Pulley Size | Small | Medium | Large |
| Precision Level | Medium–High | Medium | Medium |
| Typical Applications | Compact machines | General transmission | Heavy-duty drives |
Compact & economical solution for light to medium load transmission.
Ideal for small pulleys, limited installation space, and general automation equipment.
Typical uses:
Packaging machines, office equipment, small conveyors, light automation systems.
Balanced solution for medium load industrial transmission.
Offers a good compromise between load capacity, durability, and cost.
Typical uses:
General industrial machinery, conveying systems, printing and packaging equipment.
Heavy-duty solution for high torque and continuous operation.
Designed for large pulleys, long center distances, and demanding industrial environments.
Typical uses:
Heavy conveyors, material handling systems, automotive and tire machinery.
