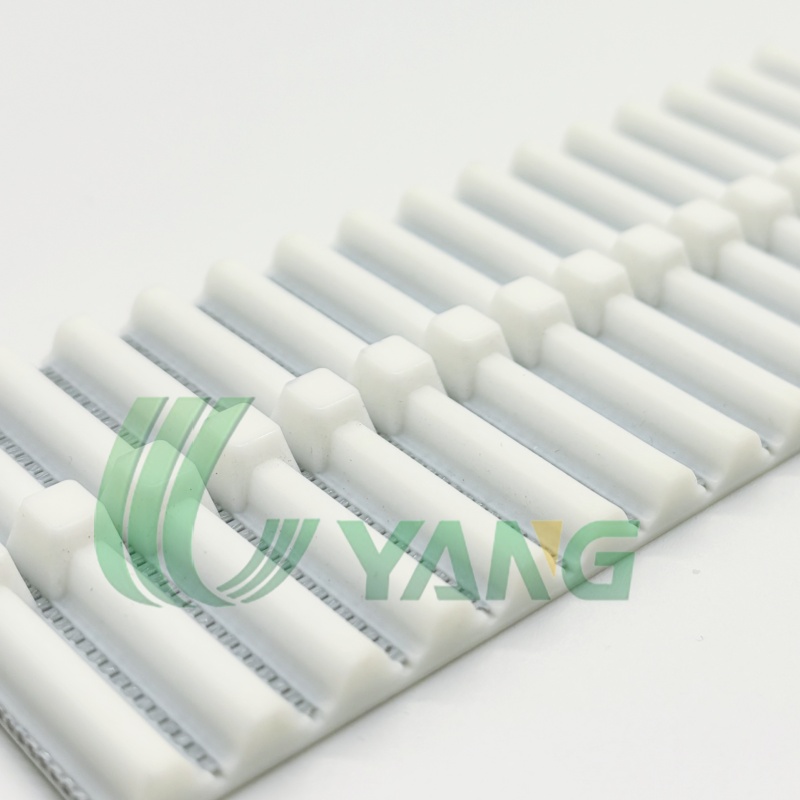

The S8MK8 Polyurethane Timing Belt is based on the S8M curvilinear tooth profile (8 mm pitch) and features an integrated K8 polyurethane guide molded directly on the belt back.
This configuration combines:
The high torque transmission capability of S8M belts
A compact K8 guide profile designed for light to medium lateral guidance
The guide is formed as part of the belt body, ensuring reliable structural integrity and stable tracking performance.
S8MK8 belts are typically used in guided conveying systems where moderate lateral control is required without increasing overall belt height.
The S8MK8 Polyurethane Timing Belt is based on the S8M curvilinear tooth profile (8 mm pitch) and features an integrated K8 polyurethane guide molded directly on the belt back.
This configuration combines:
The high torque transmission capability of S8M belts
A compact K8 guide profile designed for light to medium lateral guidance
The guide is formed as part of the belt body, ensuring reliable structural integrity and stable tracking performance.
S8MK8 belts are typically used in guided conveying systems where moderate lateral control is required without increasing overall belt height.
Brand: UYANG BELTING
Model: S8MK8 PU Timing Belt
Base Belt Type: S8M Curvilinear Timing Belt
Pitch: 8 mm
Back Guide: K8 Polyurethane Guide Profile
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
S8M Curvilinear Tooth Profile (8 mm)
Smooth engagement and high torque transmission capability.

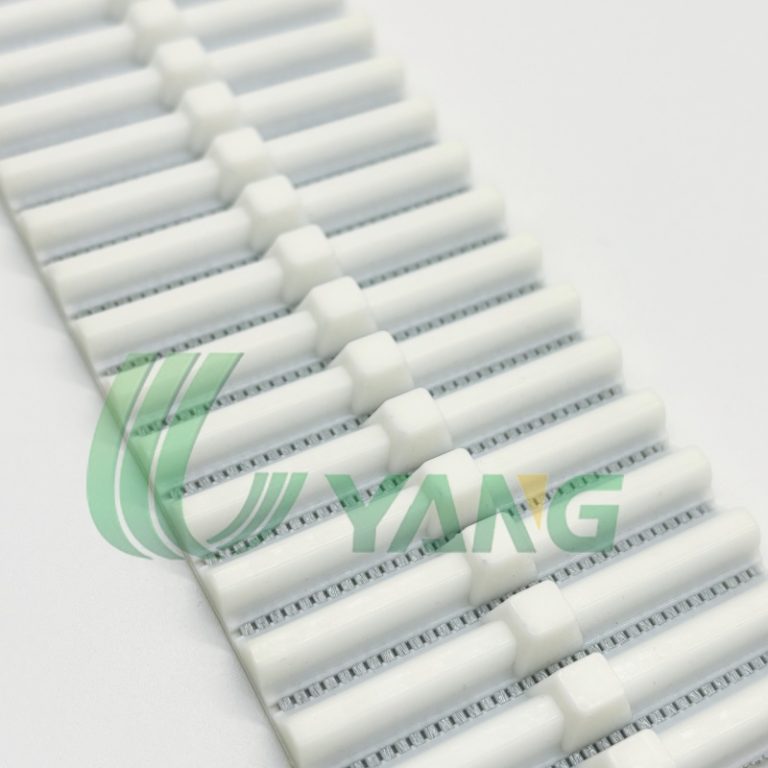

Integrated K8 Guide
Compact guide design for moderate lateral stability.
Improved Belt Tracking
Reduces wandering in guided conveyor frames.
One-Piece Molded Construction
More reliable than welded or glued guides.
Durable TPU Body
Resistant to abrasion, oils, grease, and industrial environments.
| Item | Specification |
|---|---|
| Tooth Profile | S8M |
| Pitch | 8 mm |
| Back Guide | K8 integrated PU guide |
| Standard Widths | 20 / 30 / 50 mm (custom available) |
| Operating Temperature | −20 °C to +80 °C |
| Belt Construction | TPU body + steel/aramid cords |
| Endless Type | Open End / Endless / Truly Endless |
Guide dimensions and position can be customized according to application requirements.
Guided medium-load conveyors
Packaging and transfer systems
Industrial automation lines
Assembly equipment
OEM machines requiring compact guidance
S8MK8 belts are selected when standard S8M belts need improved tracking but full K13 guiding strength is not necessary.
| Feature | S8MK8 | S8MK13 |
|---|---|---|
| Base Belt | S8M | S8M |
| Guide Size | K8 | K13 |
| Guiding Strength | Medium | High |
| Lateral Stability | Good | Very High |
| Typical Use | Medium guided systems | Heavy-duty guided systems |
Choose S8MK8 when moderate lateral guidance is required with a lower profile height.
Accurate S8M tooth geometry
Compact integrated K8 guide
Stable pitch accuracy
OEM customization capability
UYANG BELTING focuses on function-integrated timing belt solutions for guided conveyor systems.
To prepare an accurate quotation, please provide:
Belt width and length
Endless type (open / endless / truly endless)
K8 guide dimensions and location
Load, speed, and conveyor layout
Application environment
