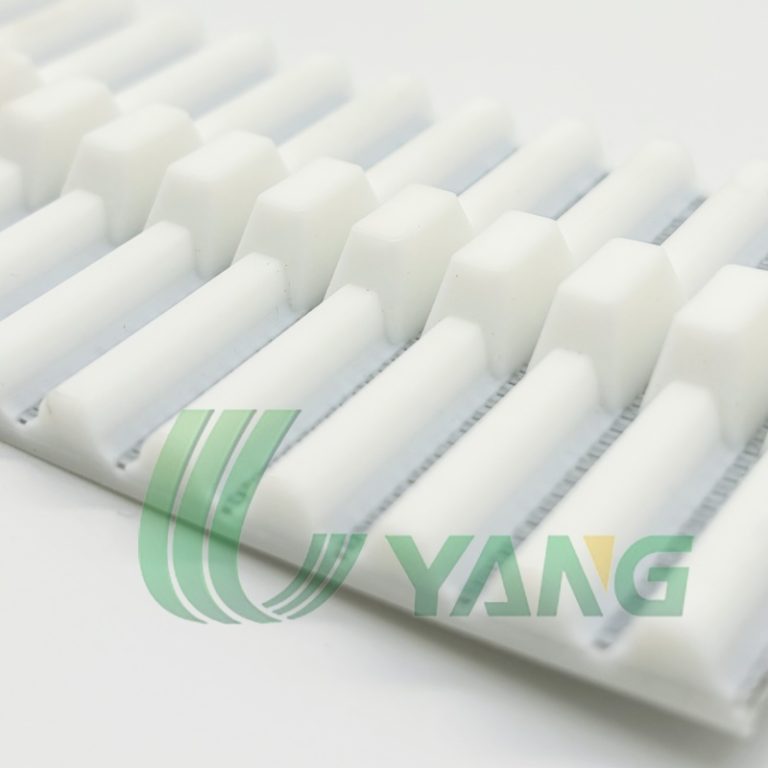

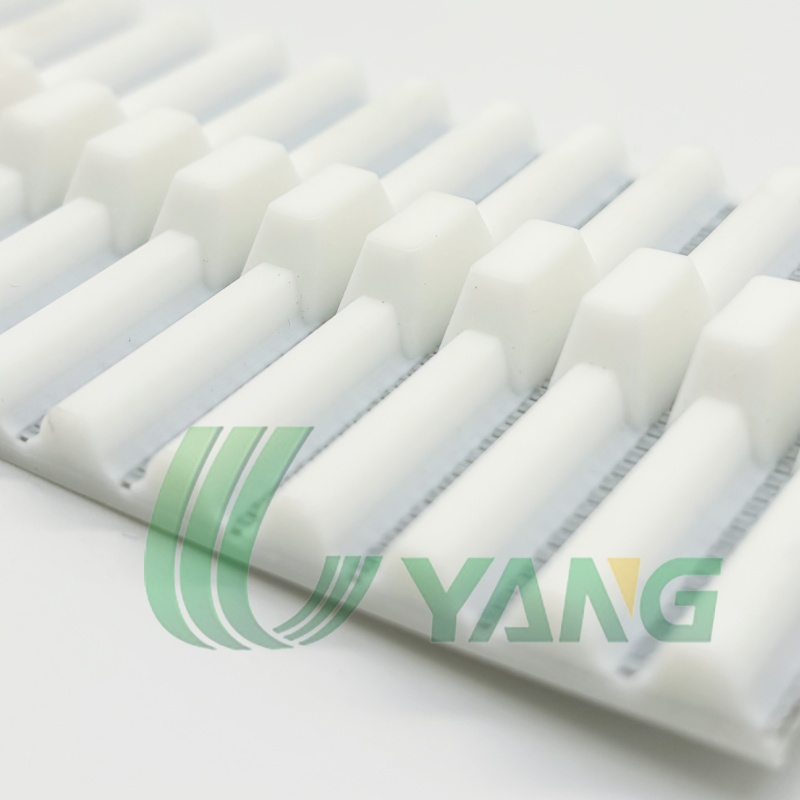

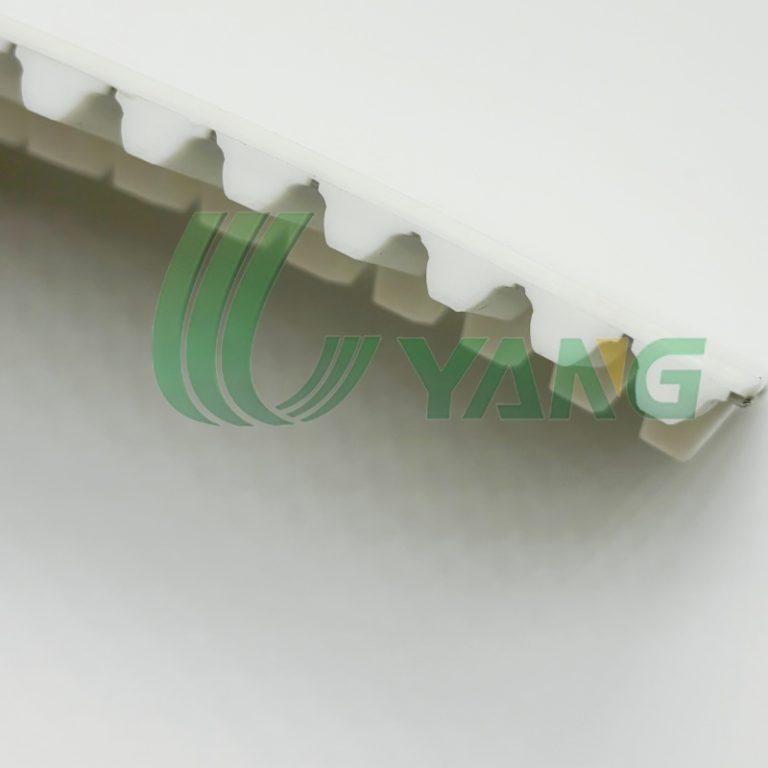

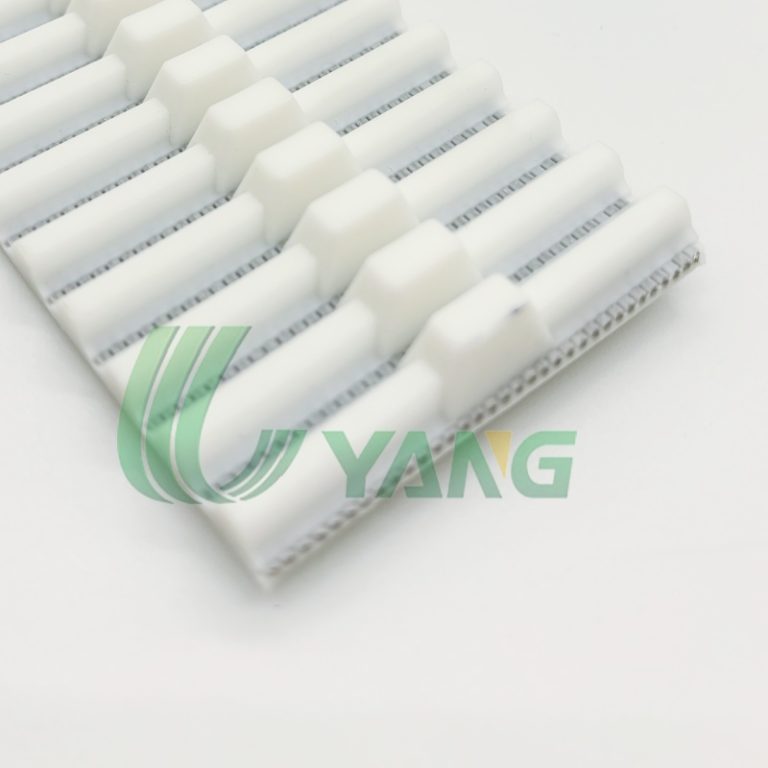

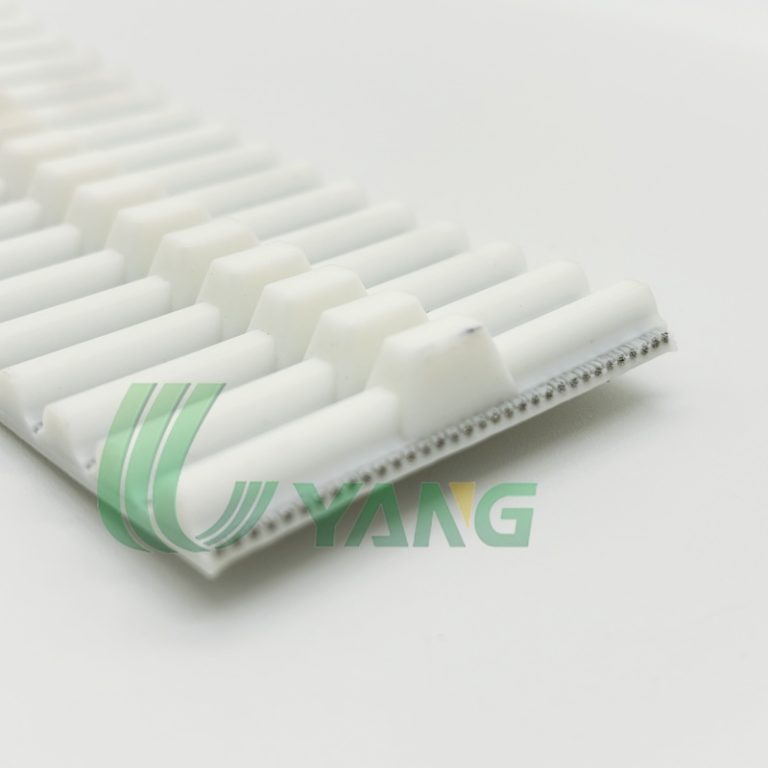

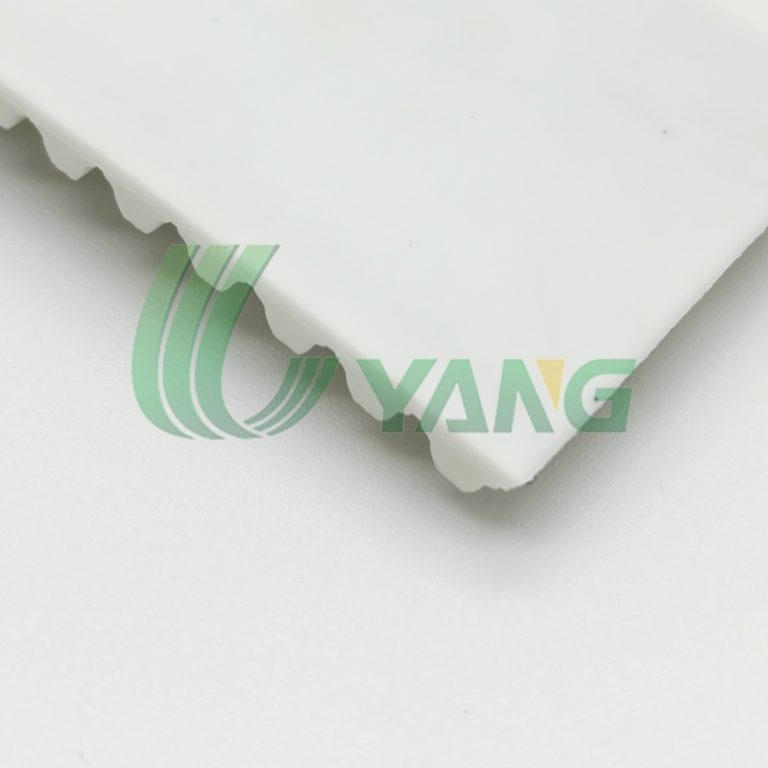

The S8MK13 Polyurethane Timing Belt is based on the S8M curvilinear tooth profile (8 mm pitch) and features an integrated K13 polyurethane guide molded directly on the belt back.
Structurally, it combines:
The high torque transmission capability of S8M belts
The strong lateral guidance of K13 profile
This configuration ensures stable tracking, improved alignment, and reliable performance in medium to heavy-duty guided conveying systems.
The guide is molded as part of the belt body, eliminating detachment risks associated with glued or welded guides.
The S8MK13 Polyurethane Timing Belt is based on the S8M curvilinear tooth profile (8 mm pitch) and features an integrated K13 polyurethane guide molded directly on the belt back.
Structurally, it combines:
The high torque transmission capability of S8M belts
The strong lateral guidance of K13 profile
This configuration ensures stable tracking, improved alignment, and reliable performance in medium to heavy-duty guided conveying systems.
The guide is molded as part of the belt body, eliminating detachment risks associated with glued or welded guides.
Brand: UYANG BELTING
Model: S8MK13 PU Timing Belt
Base Belt Type: S8M Curvilinear Timing Belt
Pitch: 8 mm
Back Guide: K13 Polyurethane Guide Profile
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
S8M Curvilinear Tooth Profile (8 mm)
Designed for smooth engagement and high torque transmission.
Integrated K13 Guide
Provides strong lateral stability and alignment control.
Improved Tracking Performance
Reduces belt wandering in guided conveyor systems.
One-Piece Molded Construction
Higher structural integrity compared to welded guides.
Durable TPU Material
Resistant to abrasion, oils, grease, and industrial environments.
| Item | Specification |
|---|---|
| Tooth Profile | S8M |
| Pitch | 8 mm |
| Back Guide | K13 integrated PU guide |
| Standard Widths | 20 / 30 / 50 / 85 mm (custom available) |
| Operating Temperature | −20 °C to +80 °C |
| Belt Construction | TPU body + steel/aramid cords |
| Endless Type | Open End / Endless / Truly Endless |
Guide dimensions and positioning can be customized according to system requirements.
Guided industrial conveyors
Packaging and sorting systems
Automation transfer lines
Assembly and positioning equipment
OEM machinery requiring stable belt tracking
S8MK13 belts are typically selected when standard S8M belts require additional lateral stability under medium to heavy loads.
| Feature | S8M | S8MK13 |
|---|---|---|
| Base Belt | S8M | S8M |
| Guide | None | K13 |
| Tracking Stability | Standard | High |
| Lateral Load Resistance | Moderate | Strong |
| Typical Use | Power transmission | Guided conveying |
Choose S8MK13 when guided tracking and higher lateral force resistance are required.
Accurate S8M tooth geometry
Strong integrated K13 guide
Stable pitch accuracy and low elongation
OEM customization capability
UYANG BELTING focuses on function-integrated timing belt solutions for industrial automation systems.
To provide an accurate quotation, please share:
Belt width and length
Endless type (open / endless / truly endless)
K13 guide dimensions and position
Load, speed, and conveyor layout
Application environment
