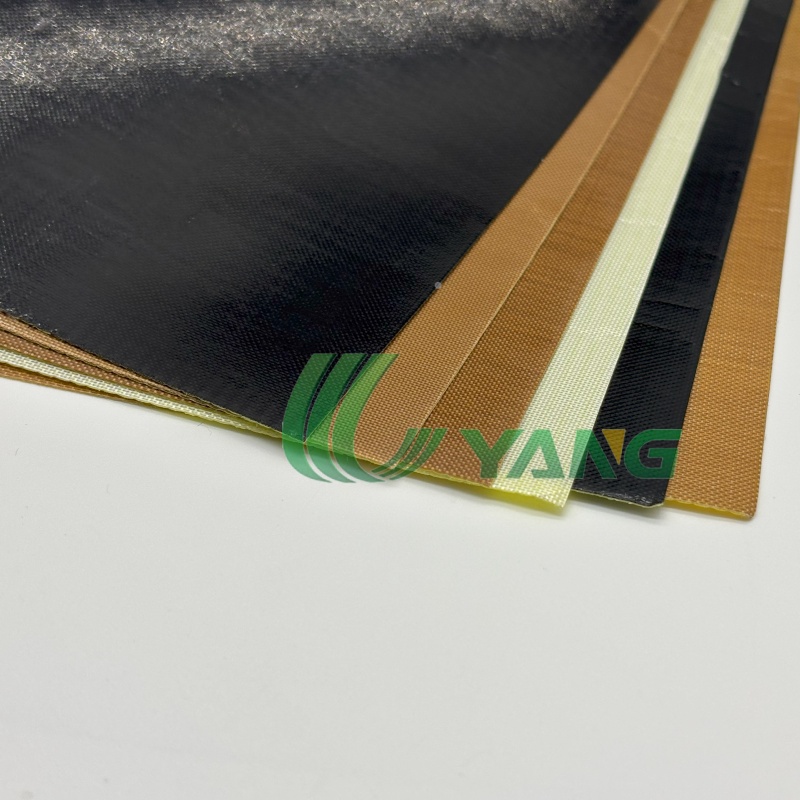

PTFE coated high-temperature adhesive fabric is a high-performance composite material manufactured from premium fiberglass fabric coated with fine PTFE (Polytetrafluoroethylene) resin. Designed for demanding thermal and industrial applications, it combines outstanding heat resistance, dimensional stability, and chemical durability in a flexible and easy-to-apply form.
PTFE coated high-temperature adhesive fabric is a high-performance composite material manufactured from premium fiberglass fabric coated with fine PTFE (Polytetrafluoroethylene) resin. Designed for demanding thermal and industrial applications, it combines outstanding heat resistance, dimensional stability, and chemical durability in a flexible and easy-to-apply form.
Excellent dimensional stability at high and low temperatures
Outstanding heat resistance and thermal insulation
Smooth surface with low friction and non-stick properties
Superior electrical insulation performance
Strong chemical resistance to acids, alkalis, and solvents
Weather resistance and aging resistance
Easy peel-off without adhesive residue
Flame-retardant performance
Operating temperature range: -40°C to 260°C (customizable for specific environments)
This material maintains excellent mechanical strength even under low or high temperature conditions. It offers superior dielectric properties, strong insulation performance, and a smooth non-stick surface that resists adhesion from most resins, chemicals, and industrial materials.
The fabric can be supplied with or without adhesive backing. When equipped with a high-temperature silicone adhesive layer, it provides strong bonding performance while remaining easy to install and remove without residue.
| Specification: | |||||||
| Model | Color | PTFE Fabric Type | Thickness (mm) | Weight ( g/sqm) (adhensive tape not included) |
adhesive force (N/4cm) |
Remarks | |
| YS7013A | White | 9008A | 0.13 | 200 | 15 | ||
| YS7013AJ | Brown | 9008AJ | 0.13 | 200 | 15 | ||
| YS7013BJ | Black | 9008BJ | 0.13 | 230 | 15 | anti-static | |
| YS7016AJ | Brown | 9011AJ | 0.16 | 270 | 15 | ||
| YS7018A | White | 9013A | 0.18 | 310 | 15 | ||
| YS7018AJ | Brown | 9013AJ | 0.18 | 310 | 15 | ||
| YS7018BJ | Black | 9013BJ | 0.18 | 290 | 15 | anti-static | |
| YS7020AJ | Brown | 9015AJ | 0.20 | 360 | 15 | ||
| YS7023AJ | Brown | 9018AJ | 0.23 | 430 | 15 | ||
| YS7030AJ | Brown | 9025AJ | 0.30 | 580 | 15 | ||
| YSF7013 | Translucent | 0.05mm Film | 0.13 | 171 | 15 | ||
| YSF7018 | Translucent | 0.13mm Film | 0.18 | 330 | 15 | ||
LCD, FPC, and PCB electronics industry
Food and pharmaceutical packaging
Heat sealing machines, high-speed sealing equipment, shrink packaging systems
Motor, high-voltage cable insulation protection
Plastic processing and molding equipment
Heat press plates, release sheets, high-temperature pressing
Conveyor protection and high-temperature surface covering
Chemical industry environments requiring corrosion resistance
Insulation and release applications in textile and industrial processing
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
