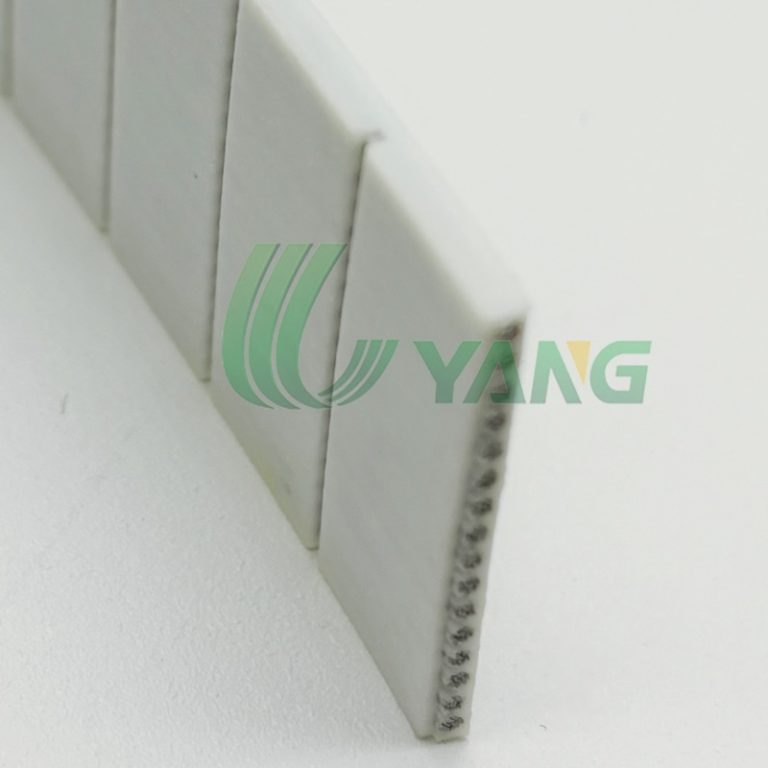

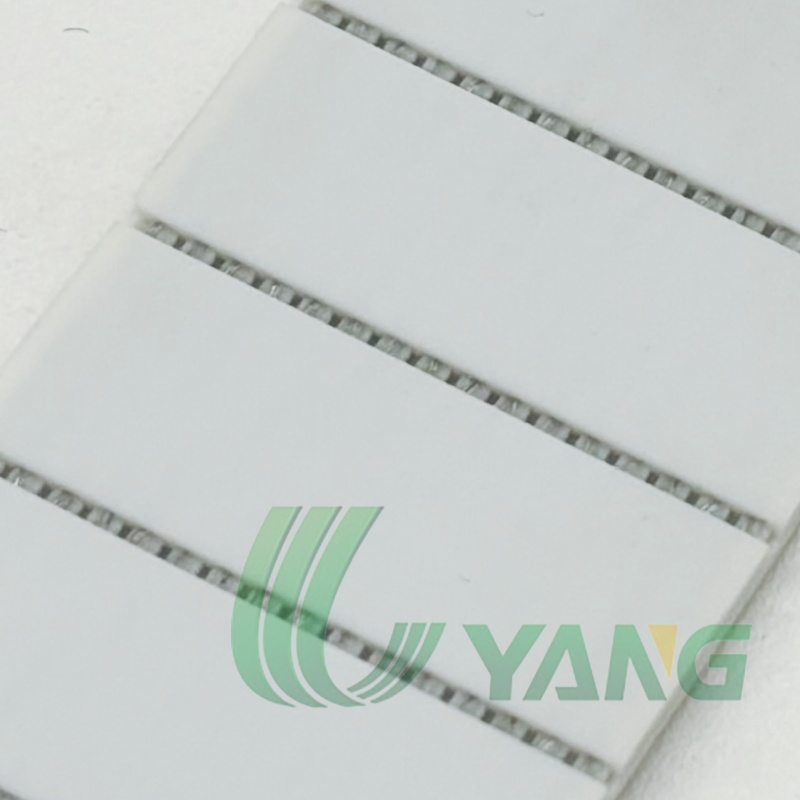

The P2 Flat PU Timing Belt is a small-pitch synchronous belt designed for precision conveying and positioning.
It features a P2 tooth profile on the drive side and a flat, smooth top surface for stable product contact.
Compared with standard timing belts, the flat-top structure allows the belt to work as a conveying belt with accurate synchronization, making it suitable for compact automation systems requiring repeatable positioning and smooth transport.
The P2 Flat PU Timing Belt is a small-pitch synchronous belt designed for precision conveying and positioning.
It features a P2 tooth profile on the drive side and a flat, smooth top surface for stable product contact.
Compared with standard timing belts, the flat-top structure allows the belt to work as a conveying belt with accurate synchronization, making it suitable for compact automation systems requiring repeatable positioning and smooth transport.
Brand: UYANG BELTING
Model: P2 Flat PU Timing Belt
Pitch: P2 (2 mm pitch)
Structure: Tooth side (P2) + Flat top conveying surface
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
P2 Small Pitch (2 mm)
Ideal for precise motion and compact pulley systems.
Flat Top Conveying Surface
Smooth surface contact for stable product handling.
Accurate Synchronization
Eliminates slip, ensuring consistent indexing and positioning.
Low Elongation Reinforcement
Steel or aramid cords provide dimensional stability.
Durable TPU Construction
Good wear resistance and suitable for common industrial environments.
Precision conveying and indexing lines
Small automation equipment and compact transfer units
Electronics / light parts positioning systems
Packaging, labeling, and inspection machines
OEM equipment requiring small pitch + flat conveying surface
| Item | Specification |
|---|---|
| Tooth Profile | P2 |
| Pitch | 2 mm |
| Top Surface | Flat (PU) |
| Standard Widths | Custom available |
| Operating Temperature | −20 °C to +80 °C |
| Endless Type | Open End / Endless / Truly Endless |
Top surface hardness, friction, and thickness can be customized.
Brand: UYANG BELTING
Small pitch timing belts (P1 / P2 / P3) are designed for high-precision synchronous conveying applications where compact pulley diameters, accurate positioning, and repeatable motion are required.
Unlike standard transmission belts, P-series belts are widely used in:
Indexing systems
Precision automation
Electronic component handling
Compact transfer conveyors
Labeling and inspection machines
UYANG offers multiple configurations based on application requirements:
Flat Top (conveying surface)
Cleats (product separation)
Guide profiles (tracking stability)
The “P” profile refers to small pitch synchronous belts, typically:
| Model | Pitch | Application Level |
|---|---|---|
| P1 | 1 mm | Ultra-compact precision systems |
| P2 | 2 mm | High precision small conveyors |
| P3 | 3 mm | Medium precision compact drives |
Small pitch belts allow:
Smaller pulley diameters
Higher positioning accuracy
Lower vibration
Compact mechanical layouts
Teeth on drive side
Flat PU top surface
Used for product transport with synchronous indexing
Typical Use: electronics, inspection systems, light automation.
Transverse PU cleats
Fixed spacing for indexing
Ideal for push, carry, and separation
Typical Use: packaging lines, sorting systems.
K-type guides on belt back
Improves lateral stability
Prevents belt wandering
Typical Use: guided conveyors, narrow frame systems.
| Requirement | Recommended Option |
|---|---|
| Smooth product transport | Flat Top |
| Fixed interval positioning | Cleated Version |
| Lateral tracking control | Guide Profile |
| High accuracy + compact layout | P1 / P2 |
| Slightly higher load | P3 |
Higher positioning precision
Reduced backlash
Compact mechanical design
Stable synchronization
Low noise operation
Small pitch belts are selected when precision and space efficiency are more important than high torque capacity.
Accurate small-pitch molding
Stable steel / aramid reinforcement
Custom surface treatments available
Cleat and guide integration capability
OEM production support
UYANG BELTING focuses on precision synchronous conveying solutions for automation industries.
To recommend the correct P-series configuration, please provide:
Required pitch (P1 / P2 / P3)
Belt width and length
Load and speed
Top surface requirements
Whether cleats or guides are needed
Conveyor frame design
📩 Contact UYANG BELTING for precision conveying timing belt solutions.
