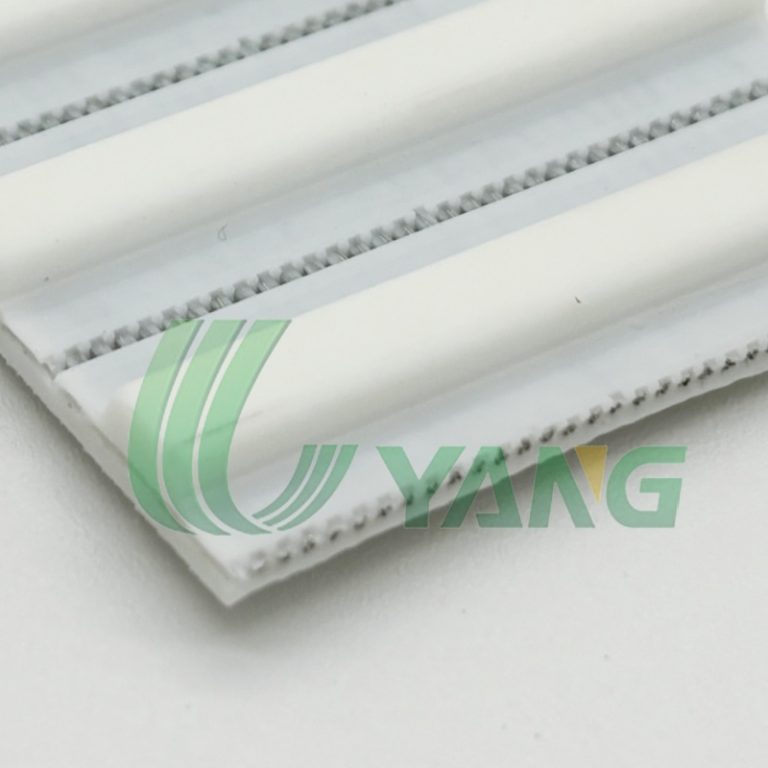

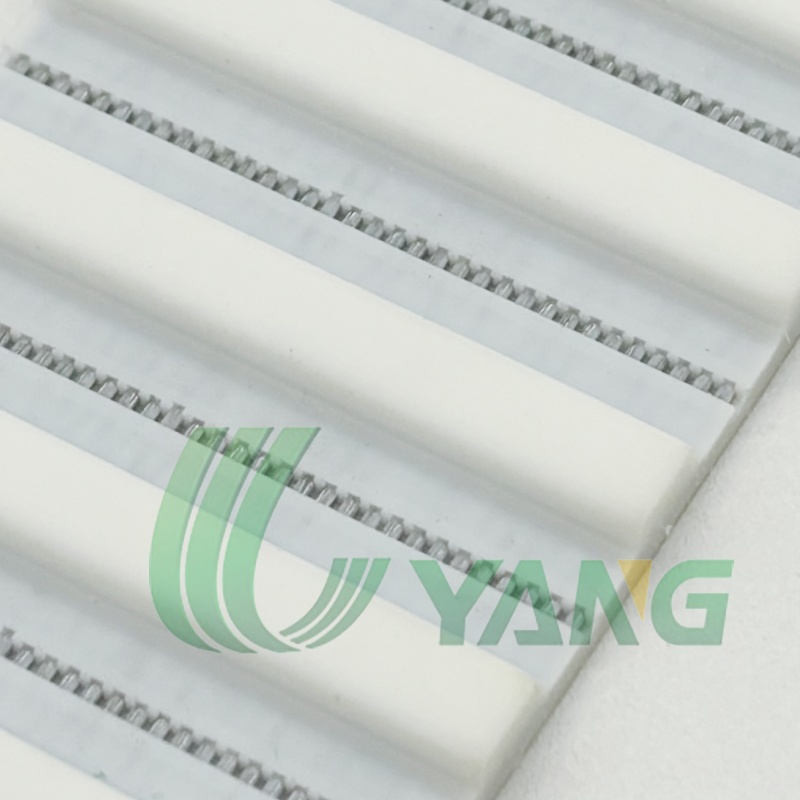

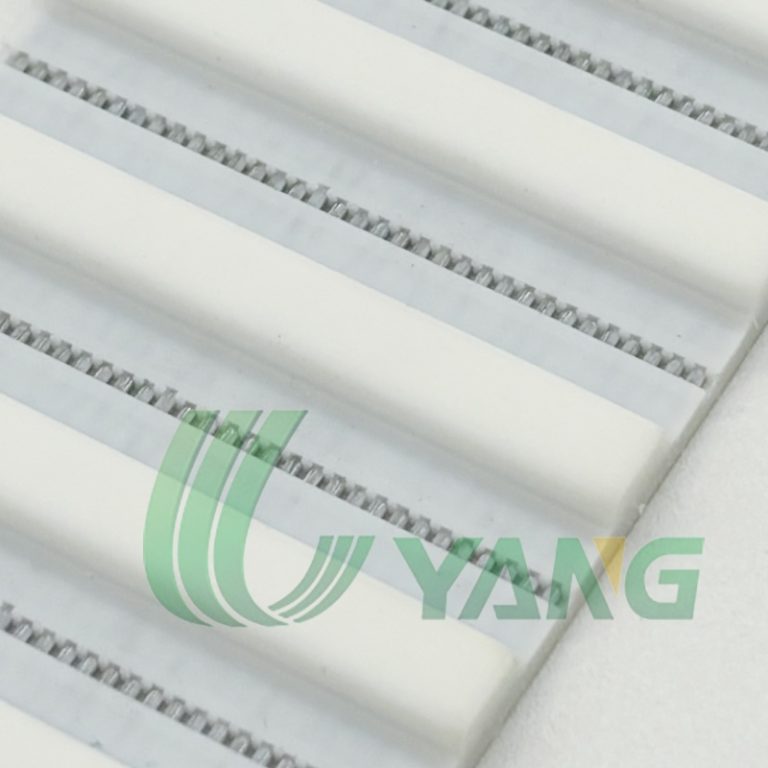

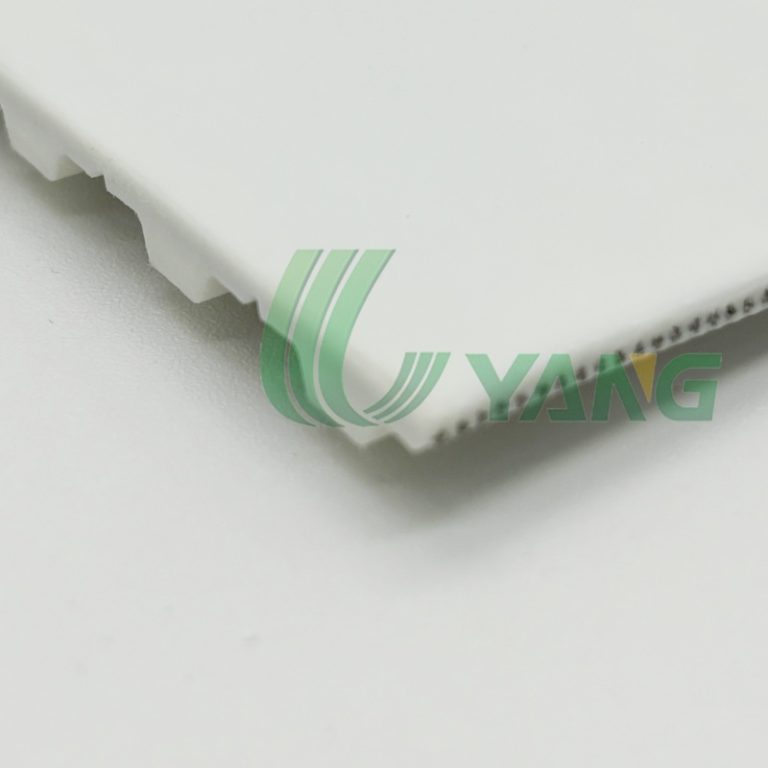

The UYANG H Type Polyurethane Timing Belt is designed for medium to high load power transmission applications in inch-based drive systems.
With a 0.500 inch trapezoidal tooth profile, H type timing belts provide strong tooth engagement, reliable synchronization, and stable torque transmission in industrial machinery.
Manufactured from wear-resistant thermoplastic polyurethane and reinforced with high-strength tensile cords, UYANG H type timing belts deliver low elongation, consistent speed ratio, and long service life, making them suitable for continuous-duty industrial environments.
The UYANG H Type Polyurethane Timing Belt is designed for medium to high load power transmission applications in inch-based drive systems.
With a 0.500 inch trapezoidal tooth profile, H type timing belts provide strong tooth engagement, reliable synchronization, and stable torque transmission in industrial machinery.
Manufactured from wear-resistant thermoplastic polyurethane and reinforced with high-strength tensile cords, UYANG H type timing belts deliver low elongation, consistent speed ratio, and long service life, making them suitable for continuous-duty industrial environments.
Brand: UYANG BELTING
Model: H Type PU Timing Belt
Pitch: 0.500 inch (12.7 mm)
Tooth Profile: Trapezoidal (Inch Standard)
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
H Inch Pitch Tooth Profile (0.500″)
Proven trapezoidal geometry for stable meshing and reliable synchronization.
Medium–High Load Capacity
Suitable for industrial transmission systems requiring higher torque than L type.
Low Elongation & Dimensional Stability
Steel or aramid cords ensure accurate pitch under sustained loads.
Excellent Wear & Chemical Resistance
TPU body resists oils, grease, ozone, and harsh industrial conditions.
Reliable Continuous Operation
Designed for long-term industrial use with reduced maintenance.
| Item | Value |
|---|---|
| Tooth Profile | Trapezoidal (Inch Series) |
| Pitch | 0.500 inch (12.7 mm) |
| Standard Widths | 25 / 38 / 50 / 75 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Color | White / Natural (custom colors available) |
| Manufacturing Type | Open End / Welded Endless / Truly Endless |
Dimensions and constructions can be customized according to application requirements.
H type timing belts can be supplied with various functional options:
PAZ (Tooth Side Fabric):
Reduced friction, quieter operation, improved durability.
PAR (Back Side Fabric):
Low friction backside for slider beds and idlers.
PAZ + PAR:
Recommended for continuous-duty systems.
PU or Rubber Backings:
For inclined conveying or controlled transport.
Industrial power transmission systems
Conveyors and material handling equipment
Packaging, printing, and woodworking machinery
Textile and rubber processing equipment
OEM machinery using inch pitch standards
H type belts are commonly selected where higher load capacity than L type is required, but extra heavy-duty XH is not necessary.
| Feature | L | H | XH |
|---|---|---|---|
| Pitch | 0.375″ | 0.500″ | 0.875″ |
| Load Capacity | Medium | Medium–High | High |
| Pulley Size | Medium | Medium–Large | Large |
| Typical Use | General machinery | Industrial transmission | Heavy-duty drives |
Choose H type for robust industrial transmission with balanced size and torque capability.
Compatible with inch-based pulley systems
Stable pitch accuracy and consistent quality
OEM customization and engineering support
Export-oriented manufacturing standards
UYANG BELTING focuses on reliable, application-driven timing belt solutions for global industrial markets.
For fast quotation and technical support, please provide:
Required belt width and length
Endless type (open / welded / truly endless)
Tension member preference
Backing or surface requirements
Application details (load, speed, environment)
