The UYANG Green /Yellow Fabric Flat Drive Rubber Belt is a high-stability transmission belt designed for applications where consistent traction, dimensional stability, and reliable power transmission are required.

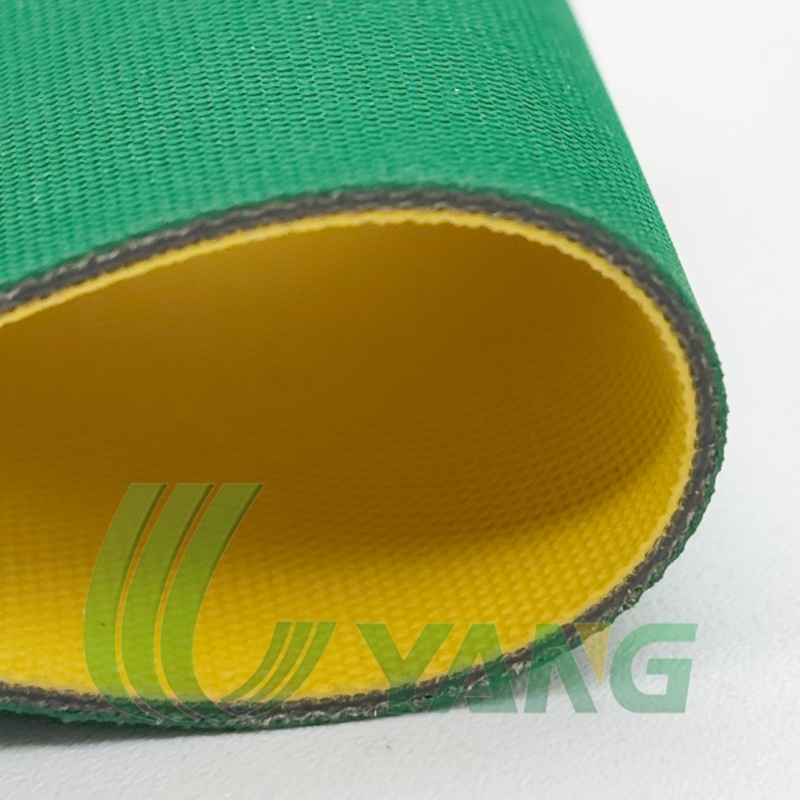

It features a green woven high-friction top surface combined with a yellow multi-ply fabric core, providing excellent grip, low elongation, and long service life under continuous operation.
This belt is widely used in industrial conveying and mechanical transmission systems, especially where slip is not acceptable.
The UYANG Green /Yellow Fabric Flat Drive Rubber Belt is a high-stability transmission belt designed for applications where consistent traction, dimensional stability, and reliable power transmission are required.
It features a green woven high-friction top surface combined with a yellow multi-ply fabric core, providing excellent grip, low elongation, and long service life under continuous operation.
This belt is widely used in industrial conveying and mechanical transmission systems, especially where slip is not acceptable.
Printing and paper processing machines
Packaging and carton handling equipment
Industrial conveying systems
Light mechanical transmission lines
Equipment requiring anti-slip positioning
| Item | UY-30N10 | Antistatic | NO |
| Thickness(mm) | 3.0 (+-0.05mm) | Traction Layer | polyamide |
| Belt Weight(kg/m2 ) |
3.44 (+-0.1mm)
|
Friction Cover | NBR |
| Max Width (mm) | 500 | Color | GREEN |
| 1% Elongation (N/mm) | 10.0 | Reverse Cover | NBR |
| MPD (mm) | 100 | Color | YELLOW |
| Working Tempreture(°c) | -20~80 | Jointing Method | SKIVED |

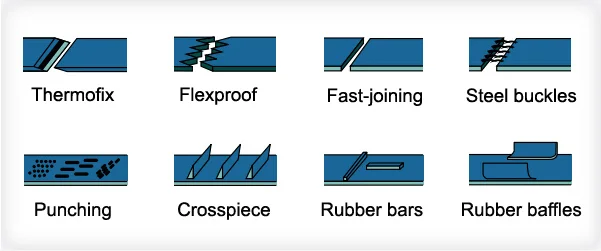

Belt joint Ways:
Contact us for detailed technical drawings, custom widths, and endless splicing options.
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
