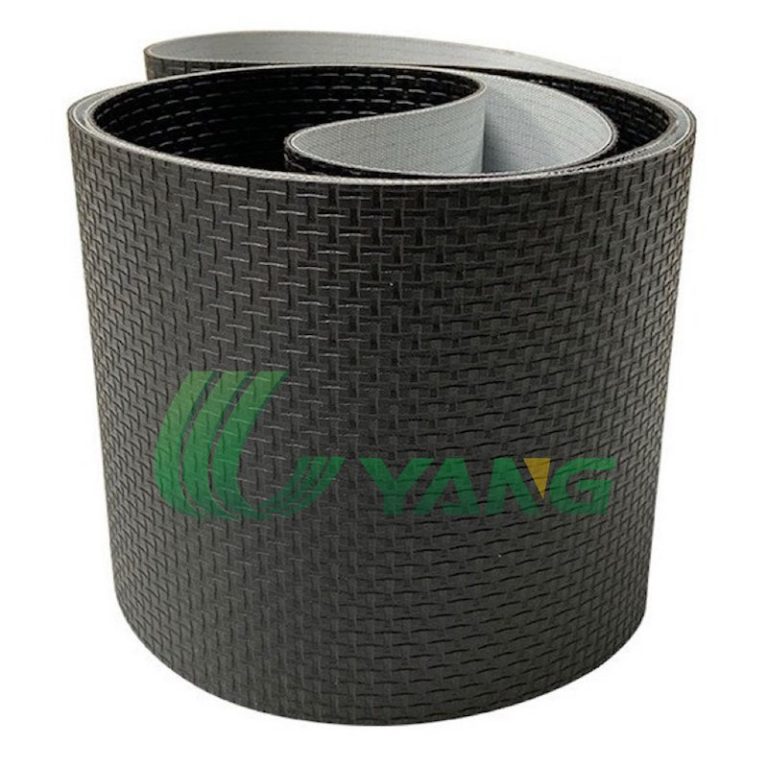

The UYANG Black Lattice Pattern PVC Conveyor Belt features a structured cross-grid surface designed to enhance friction control and improve conveying stability.
The lattice texture provides uniform grip distribution across the belt surface, making it suitable for medium-duty conveying applications where smooth belts may not provide sufficient traction.
This belt is widely used in packaging, logistics, and general industrial material handling systems.
The UYANG Black Lattice Pattern PVC Conveyor Belt features a structured cross-grid surface designed to enhance friction control and improve conveying stability.
The lattice texture provides uniform grip distribution across the belt surface, making it suitable for medium-duty conveying applications where smooth belts may not provide sufficient traction.
This belt is widely used in packaging, logistics, and general industrial material handling systems.

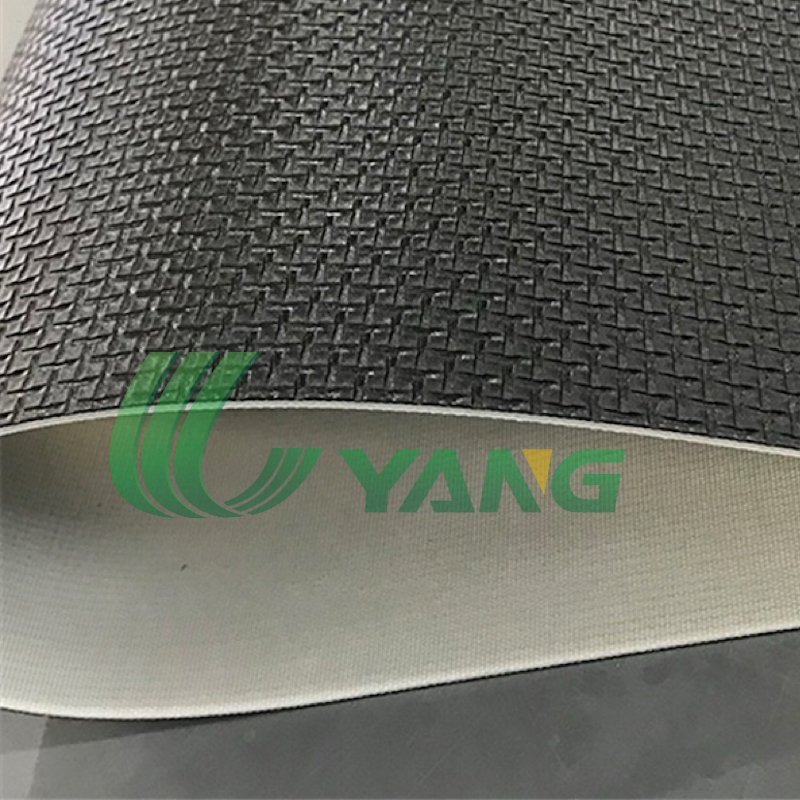

Top Cover: Black PVC with lattice pattern
Carcass: Multi-ply polyester fabric reinforcement
Bottom Surface: Fabric backing
Surface Type: Lattice embossed texture
Operating Temperature: -10°C to +80°C
Antistatic option available
The cross-grid lattice structure:
Increases surface friction evenly
Reduces slippage of cartons and packaged goods
Maintains smooth discharge
Suitable for horizontal and slight incline conveyors
Compared with straight rib patterns, lattice texture provides multi-directional grip.
The PVC cover offers:
Good abrasion resistance
Resistance to moisture and light chemicals
Long operational lifetime
The black surface is suitable for industrial environments where dust and wear marks are common.
Multi-ply fabric carcass ensures:
High tensile strength
Controlled elongation
Reliable tracking performance
Compatibility with moderate load systems
Carton box conveying
Parcel sorting systems
Warehouse distribution lines
Packaging and assembly conveyors
General industrial transport
Surface texture directly impacts conveying stability.
The lattice pattern:
Provides balanced friction in multiple directions
Reduces product movement on slightly inclined systems
Maintains controlled contact without aggressive wear
Improves system reliability
It is suitable when smooth belts lack grip and heavy cleated belts are unnecessary.
Endless fabrication
Different ply configurations
Antistatic treatment
Custom width and length
Edge sealing
