UYANG BELTING PRODUCTS

Easy-to-Clean Positive Drive Homogeneous Belt-K 25 Series-UYANG BELTING

UYANG BELTING products have higher industry relevance and stronger scene directivity and can choose delivery solutions according to the mechanical specifications of the food, the use environment, texture, match and load, as well as the required output volume, helping food manufacturers to maintain high hygiene standards, reduce the risk of food contamination, and better provide safe food to the market.

Easy-to-Clean Positive Drive Homogeneous Belt-K 25 Series-UYANG BELTING

UYANG BELTING products have higher industry relevance and stronger scene directivity and can choose delivery solutions according to the mechanical specifications of the food, the use environment, texture, match and load, as well as the required output volume, helping food manufacturers to maintain high hygiene standards, reduce the risk of food contamination, and better provide safe food to the market.

Product Details

Key Feature:

The belt can effectively inhibit the growth of bacteria, avoid infection of transported products,

and provide customers with a safe and healthy use environment.

  • Zero Risk fabric contamination
  • Low-Cost cleaning & maintenance
  • Good Sealing waterproof performance
  • No aging delamination;
  • Stable low-temperature operation
Homogeneous belt

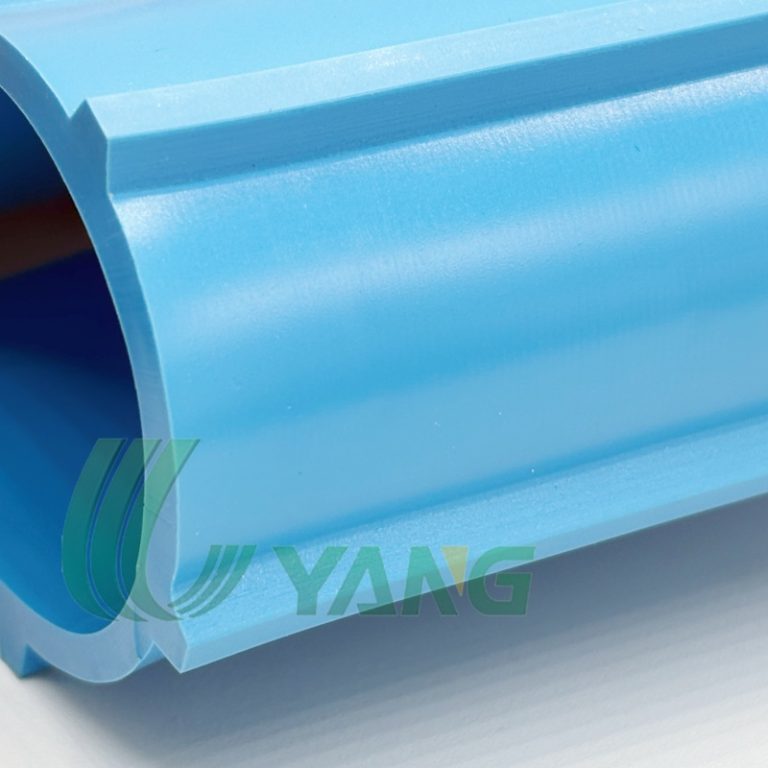

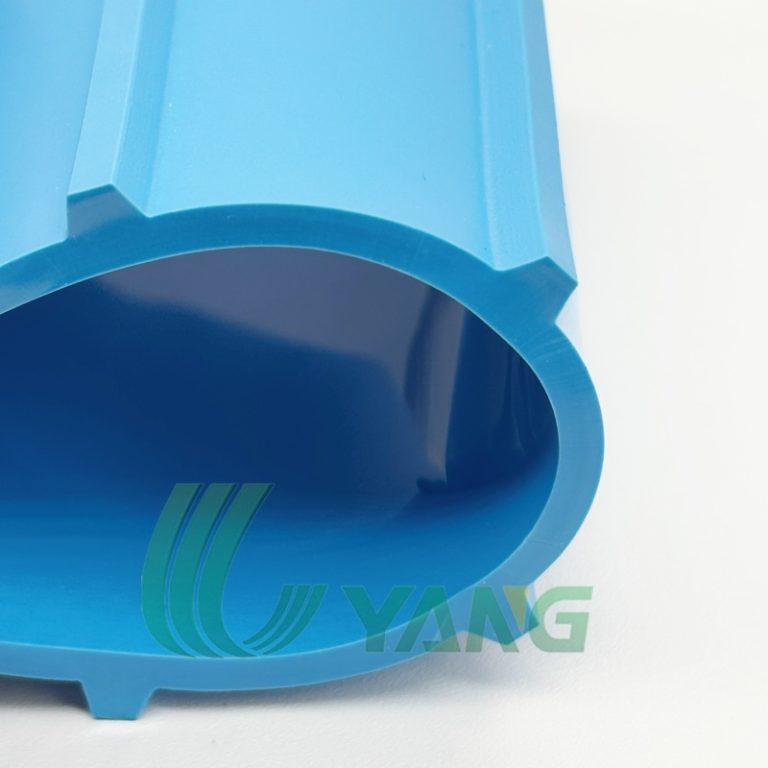

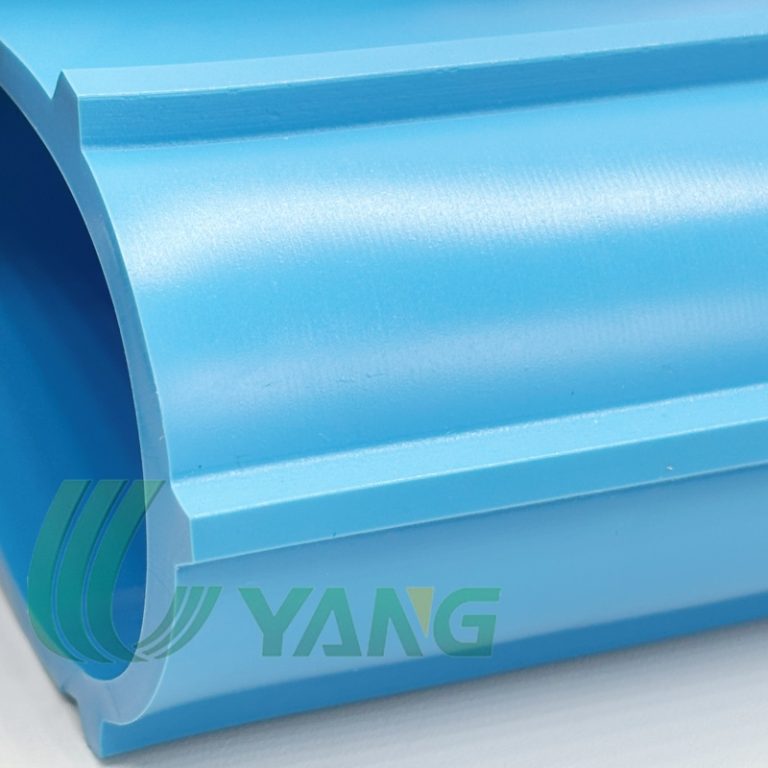

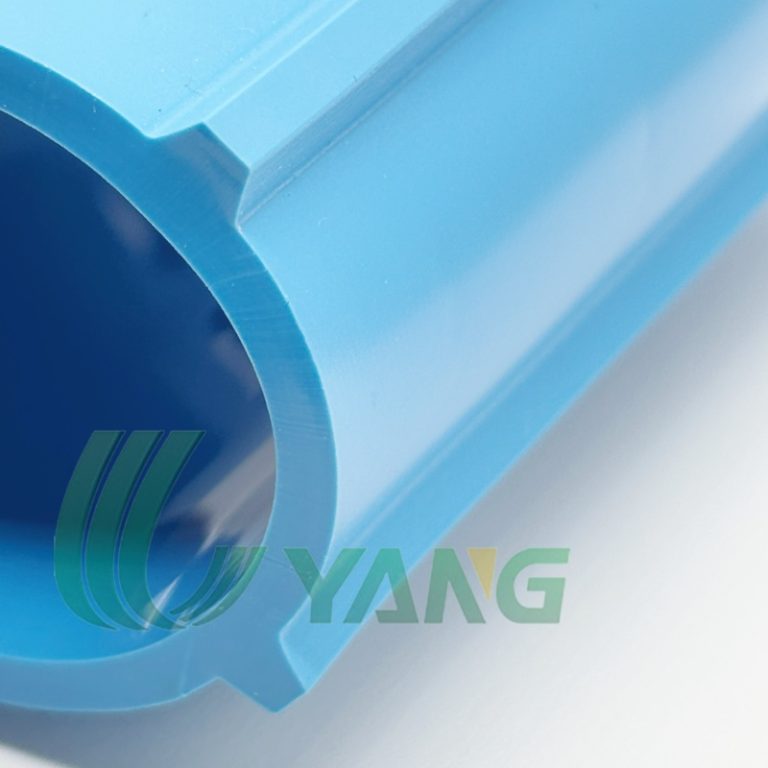

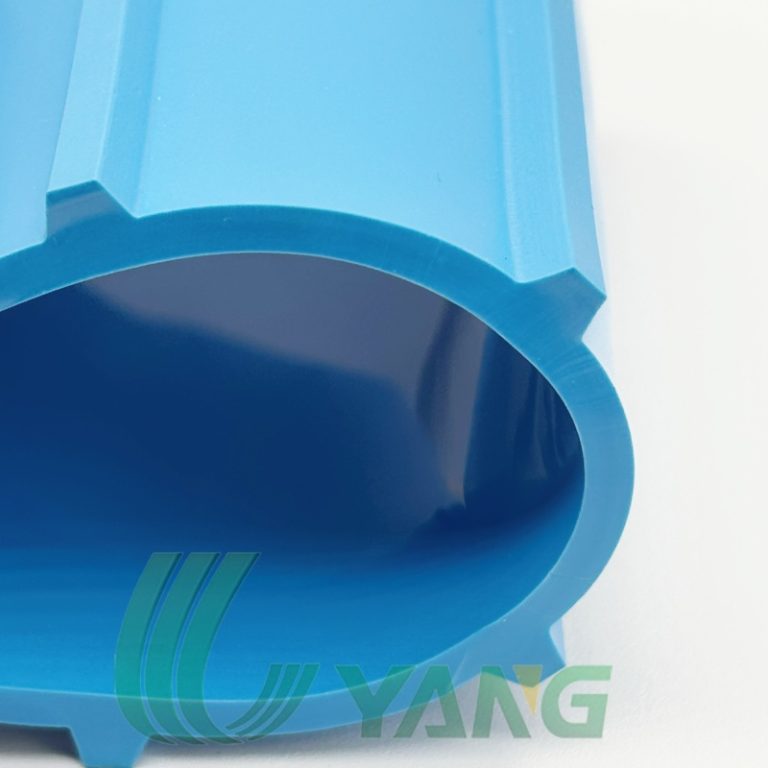

Easy-to-Clean Homogeneous Belt-K 25 Series

UYANG BELTING Homogeneous belt

Selection reference:

The connection of the conveying equipment requires small wheel strength and the load is not heavy.

Technical Parameters:

Code

color

Material

Hard

ness

Anti

bacterial class

Thick

ness

(mm)

Depth of tooth(mm)

Maximum load (kg/m2)

Working temperature

(°C)

Surface design

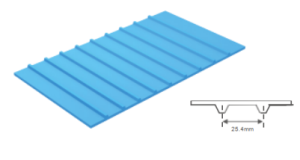

Pitch(mm)

Minimum

roll diameter

(mm)

S25-U28Y BLUE TPU 90A Grade one 2.8 3 210 -5/+80 glossy 25.4 79.5
S25-U23 BLUE TPU 50D Grade one 2.3 3 80 -5/+80 glossy 25.4 63.6
S25-W28Y White TPU 90A Grade one 2.8 3 210 -5/+80 glossy 25.4 79.5
S25-W23 White TPU 50D Grade one 2.3 3 80 -5/+80 glossy 25.4 63.6
H25-DU28Y Dark

Blue

TPU 90A Grade zero 2.8 3 210 -20/+60 glossy 25.4 79.5
H25-DU23 Dark

Blue

TPU 50D Grade zero 2.3 3 80 -20/+60 glossy 25.4 63.6
H25-NW28Y milk

white

TPU 90A Grade zero 2.8 3 210 -20/+60 glossy 25.4 79.5
H25-NW23 milk

white

TPU 50D Grade zero 2.3 3 80 -20/+60 glossy 25.4 63.6

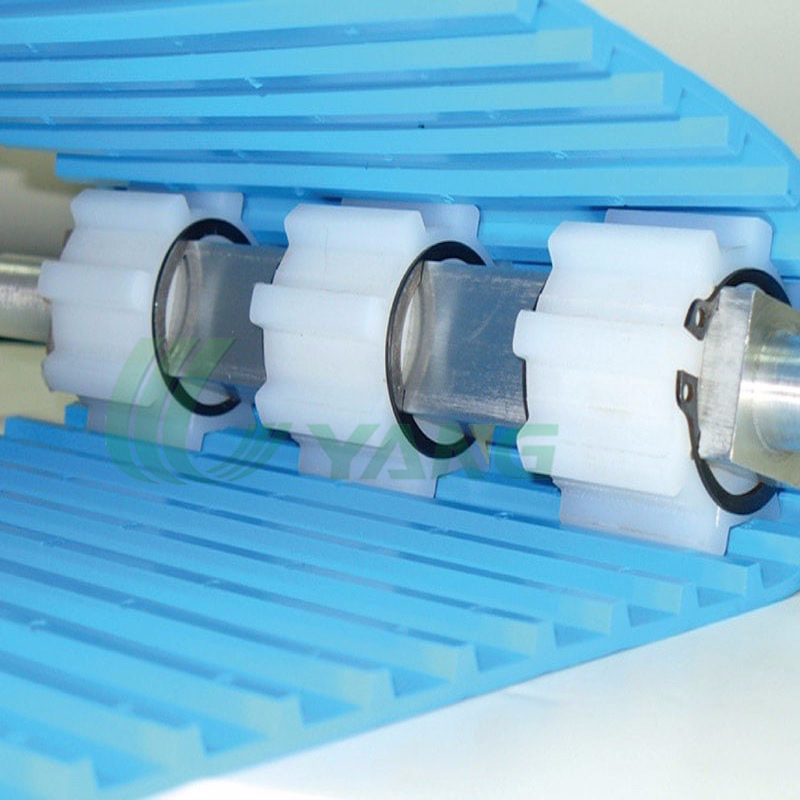

Wheels and Parameters

Category Model Number Outside

diameter

(mm)

thickness

(mm)

Material Bore

Shape

Bore Specification Schematic
Action

wheel

C25-8E 8 63.6 30 POM/PA/PE Square hole 40mm
Circular hole 25-35mm
Action

wheel

C25-10E 10 79.5 30 POM/PA/PE Square hole 40mm
Circular hole 25-35mm
Action

wheel

C25-12E 12 95.4 30 POM/PA/PE Square hole 40mm
Circular hole 25-35mm
Action

wheel

C25-14E 14 113.3 30 POM/PA/PE Square hole 40mm
Circular hole 25-35mm



Application:

  • Raw meat processing
  • Fresh fruits & vegetables
  • Frozen food
  • Fried food
