Chevron Conveyor Belt is designed for inclined conveying of bulk materials where conventional smooth belts are not sufficient.
The integrally molded V-shaped cleats prevent material rollback and increase friction between belt surface and material.
Suitable for medium to high incline conveying of loose, bulk, or bagged materials.
Chevron Conveyor Belt is designed for inclined conveying of bulk materials where conventional smooth belts are not sufficient.
The integrally molded V-shaped cleats prevent material rollback and increase friction between belt surface and material.
Suitable for medium to high incline conveying of loose, bulk, or bagged materials.

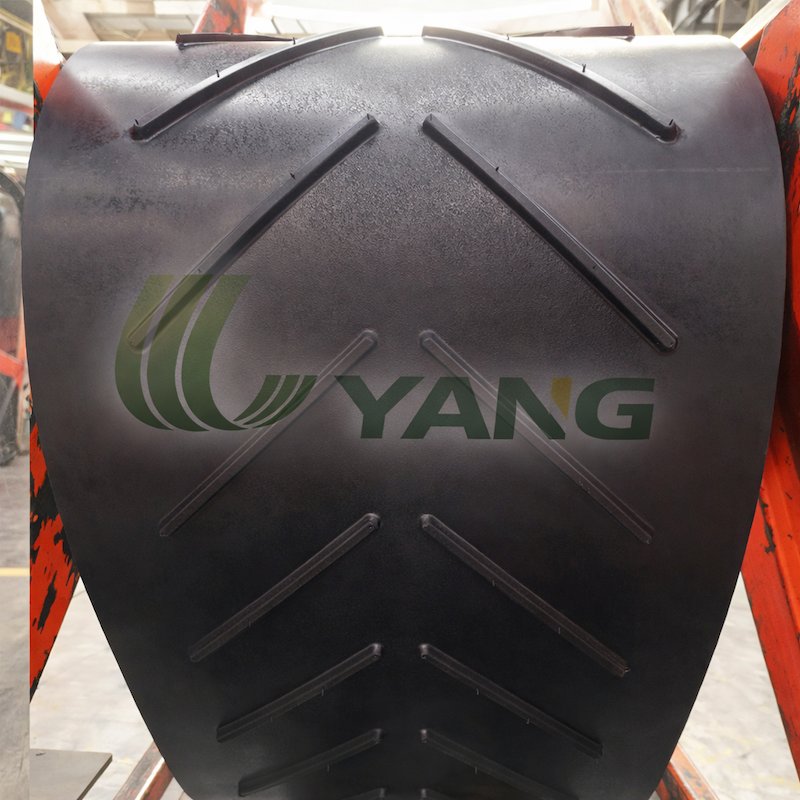

From the picture provided:
Pattern Type: Closed V / Continuous Chevron
Cleat Height: typically 10–32 mm (customizable)
Pattern Layout: Symmetrical V arrangement
Suitable Incline: up to 40°
This pattern provides:
Strong anti-slip performance
Uniform load distribution
Better material retention
Base Belt:
EP Fabric Conveyor Belt (Polyester/Nylon)
Available strength: EP100 – EP800
Cover Rubber:
Abrasion resistant
Optional: Heat resistant / Oil resistant / Cold resistant
Cleats:
Molded integrally with top cover
Same rubber compound as cover
| Item | Range |
|---|---|
| Belt Width | 400 – 2000 mm |
| Cleat Height | 10 / 15 / 20 / 25 / 32 mm |
| Base Strength | EP200 – EP800 |
| Top/Bottom Cover | 3+1.5 / 4+2 / 5+2 mm |
| Max Incline | 35–40° (depends on material) |
| Standard | DIN / ISO / GB |
Sand & gravel
Crushed stone
Coal
Cement
Fertilizer
Agricultural products
Bagged materials
Not recommended for:
Extremely sticky materials (requires special surface)
Vertical conveying (sidewall belt recommended)
Prevents material sliding on incline
Higher conveying efficiency vs smooth belt
Lower system cost compared to sidewall belt
Stable and durable cleat bonding (integral molding)
Chevron Belt
Width: 800 mm
Strength: EP400/3
Cover: 4+2 mm
Cleat Height: 20 mm
Standard: DIN Y
To recommend correct chevron type, please provide:
Material type
Material size
Incline angle
Required capacity (t/h)
Belt width
Working temperature
Required standard
