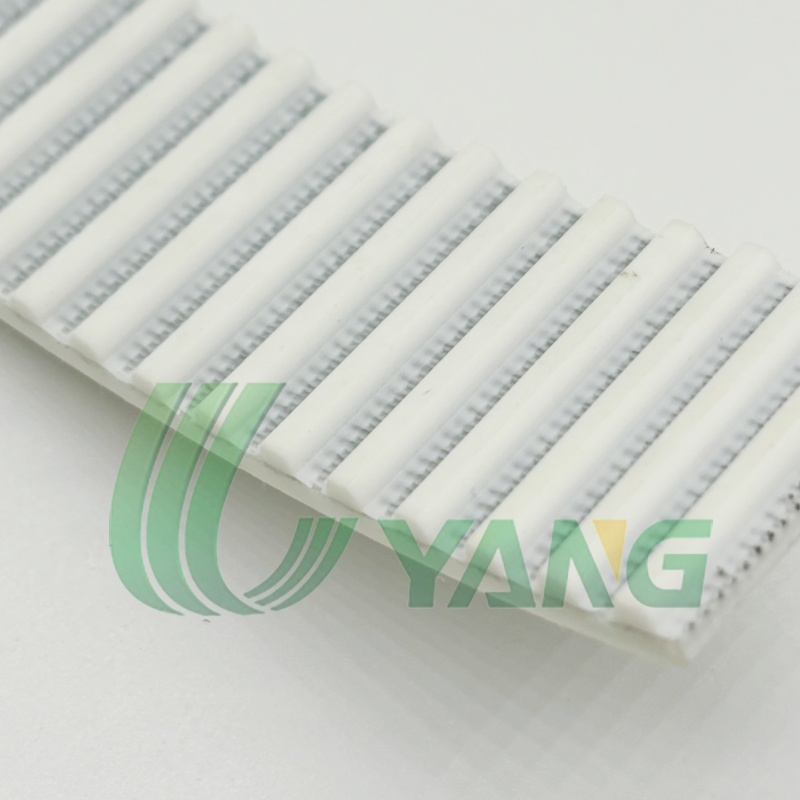

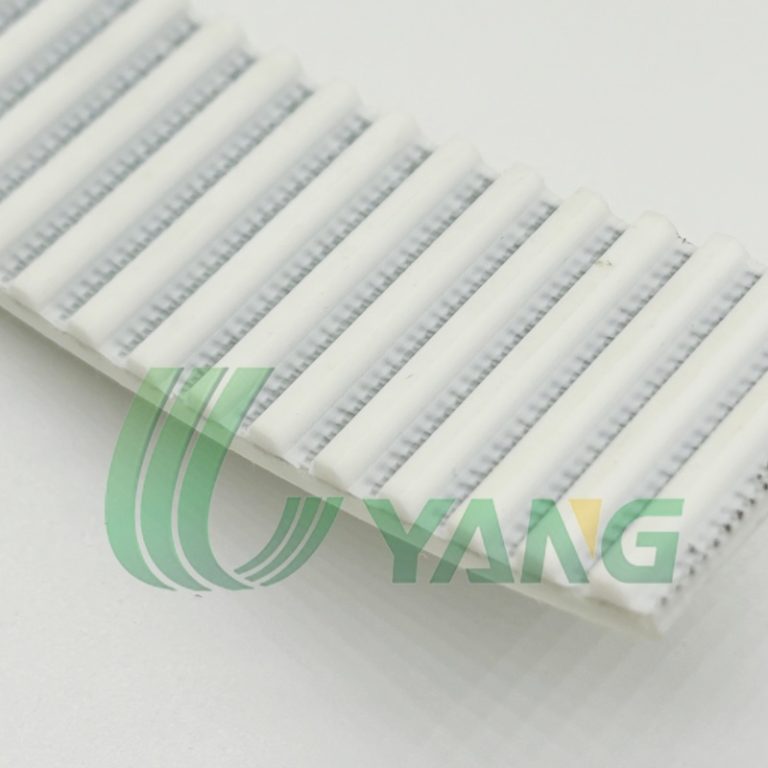

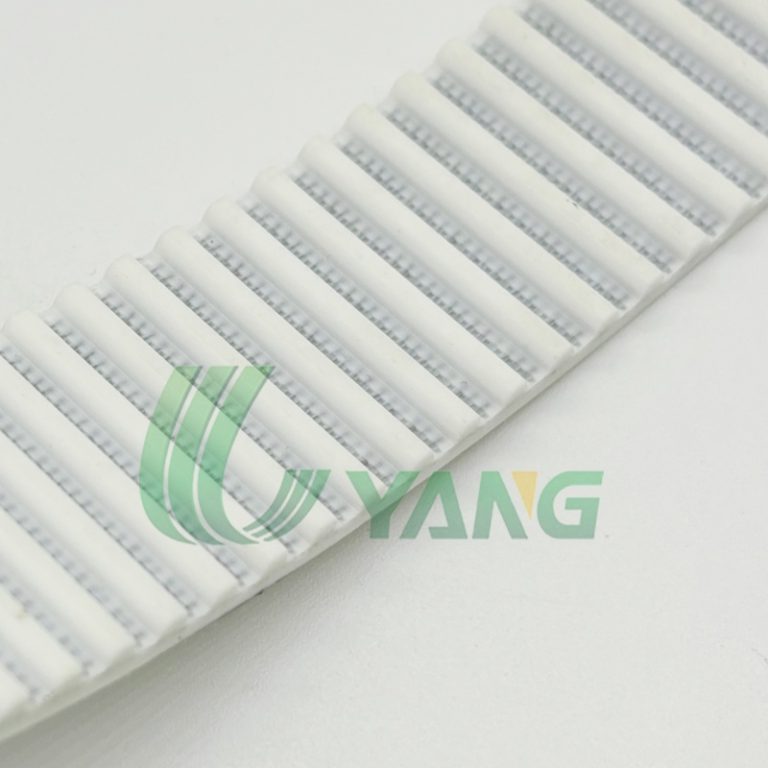

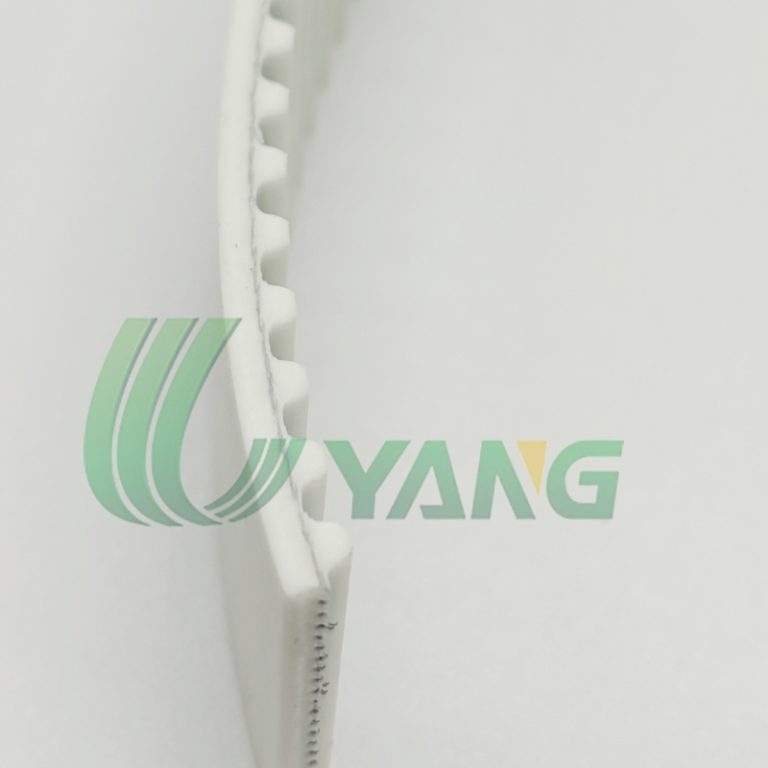

The UYANG STD 5M Polyurethane Timing Belt is a curvilinear synchronous belt developed to provide higher torque transmission and improved tooth engagement stability compared to standard trapezoidal belts and conventional HTD profiles.
With its optimized tooth geometry, STD 5M belts offer:
Increased load-carrying capacity
Reduced tooth deformation under load
Improved meshing stability
Lower backlash in dynamic applications
Manufactured from high-performance TPU and reinforced with low-elongation tensile cords, UYANG STD 5M belts deliver precise synchronization, smooth operation, and extended service life.
The UYANG STD 5M Polyurethane Timing Belt is a curvilinear synchronous belt developed to provide higher torque transmission and improved tooth engagement stability compared to standard trapezoidal belts and conventional HTD profiles.
With its optimized tooth geometry, STD 5M belts offer:
Increased load-carrying capacity
Reduced tooth deformation under load
Improved meshing stability
Lower backlash in dynamic applications
Manufactured from high-performance TPU and reinforced with low-elongation tensile cords, UYANG STD 5M belts deliver precise synchronization, smooth operation, and extended service life.
Brand: UYANG BELTING
Model: STD 5M PU Timing Belt
Pitch: 5 mm
Tooth Profile: STD (Super Torque Drive – Curvilinear)
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
5 mm Super Torque Drive Profile
Enhanced curvilinear tooth design for better load distribution.
Higher Torque Density Than T5
Suitable for medium-duty industrial transmission systems.
Improved Engagement Stability
Reduces tooth shear stress and vibration.
Low Elongation Reinforcement
Steel or aramid cords maintain dimensional accuracy.
Durable TPU Construction
Resistant to abrasion, oils, grease, and industrial environments.
| Item | Specification |
|---|---|
| Tooth Profile | STD 5M |
| Pitch | 5 mm |
| Standard Widths | 9 / 15 / 25 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Endless Type | Open End / Endless / Truly Endless |
Lengths and widths can be customized based on application requirements.
Automation and motion control systems
Packaging and labeling equipment
Precision conveyor drives
Robotics and indexing systems
Medium-load industrial drives
STD 5M belts are selected where higher torque transmission and smoother operation are required compared to trapezoidal belts.
| Feature | STD 5M | HTD 5M |
|---|---|---|
| Tooth Geometry | Optimized curvilinear | Standard curvilinear |
| Torque Capacity | Higher | High |
| Engagement Stability | Improved | Good |
| Backlash | Lower | Standard |
| Typical Use | Precision torque drives | General high-torque drives |
Choose STD 5M when improved meshing stability and reduced backlash are required.
Accurate STD tooth geometry
Stable pitch accuracy and low elongation
Suitable for precision torque transmission
OEM customization capability
UYANG BELTING focuses on performance-driven timing belt solutions built for industrial reliability.
To prepare an accurate quotation, please provide:
Required belt width and length
Endless type (open / endless / truly endless)
Tension member preference
Load, speed, and pulley size
Application environment
