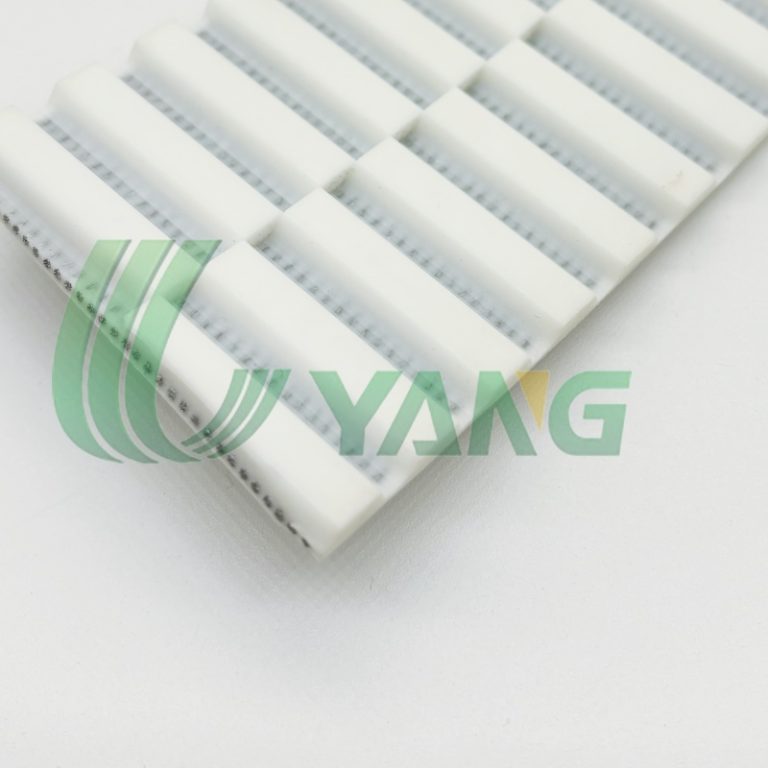

The SFAT10 Polyurethane Timing Belt is based on the AT10 metric profile (10 mm pitch) and features integrated transverse polyurethane flights molded directly onto the belt back.
Unlike glued or welded cleats, the flights in SFAT10 belts are formed as part of the belt structure, ensuring:
High mechanical integrity
Stable load transfer
Improved durability under cyclic operation
SFAT10 belts are designed for synchronous conveying applications where products must be separated, positioned, or pushed at fixed intervals.
The SFAT10 Polyurethane Timing Belt is based on the AT10 metric profile (10 mm pitch) and features integrated transverse polyurethane flights molded directly onto the belt back.
Unlike glued or welded cleats, the flights in SFAT10 belts are formed as part of the belt structure, ensuring:
High mechanical integrity
Stable load transfer
Improved durability under cyclic operation
SFAT10 belts are designed for synchronous conveying applications where products must be separated, positioned, or pushed at fixed intervals.

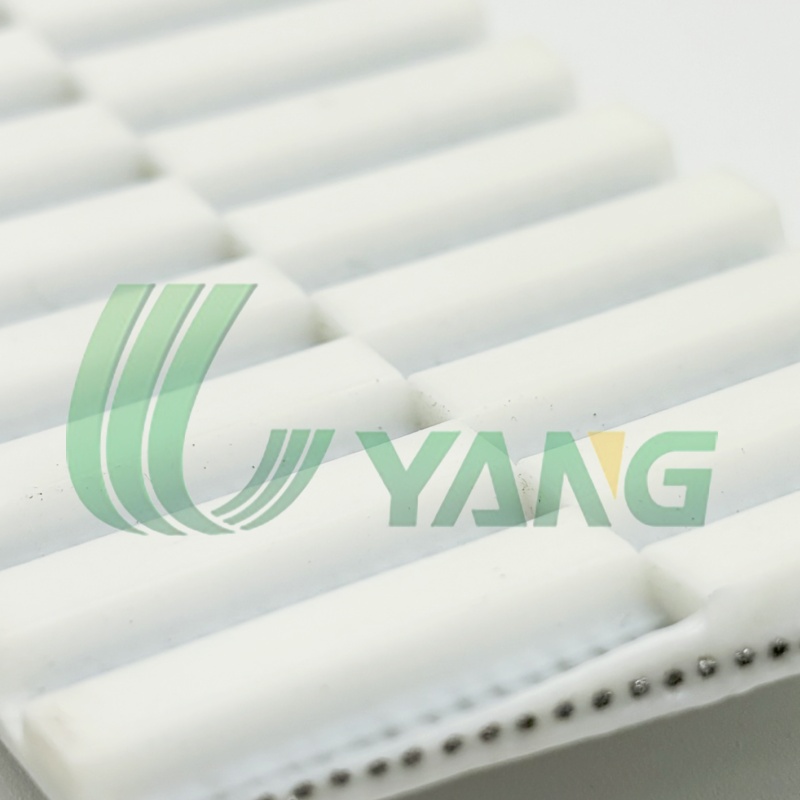

UYANG SFAT10 Polyurethane Timing Belt
Brand: UYANG BELTING
Model: SFAT10 PU Timing Belt
Base Belt Type: AT10 Timing Belt
Pitch: 10 mm
Back Structure: Integrated PU Transverse Flights
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
S = Special / Structured back design
F = Flights (transverse ribs)
AT10 = 10 mm AT profile base belt
Structurally, SFAT10 combines the high torque and precision characteristics of AT10 belts with integrated conveying elements.

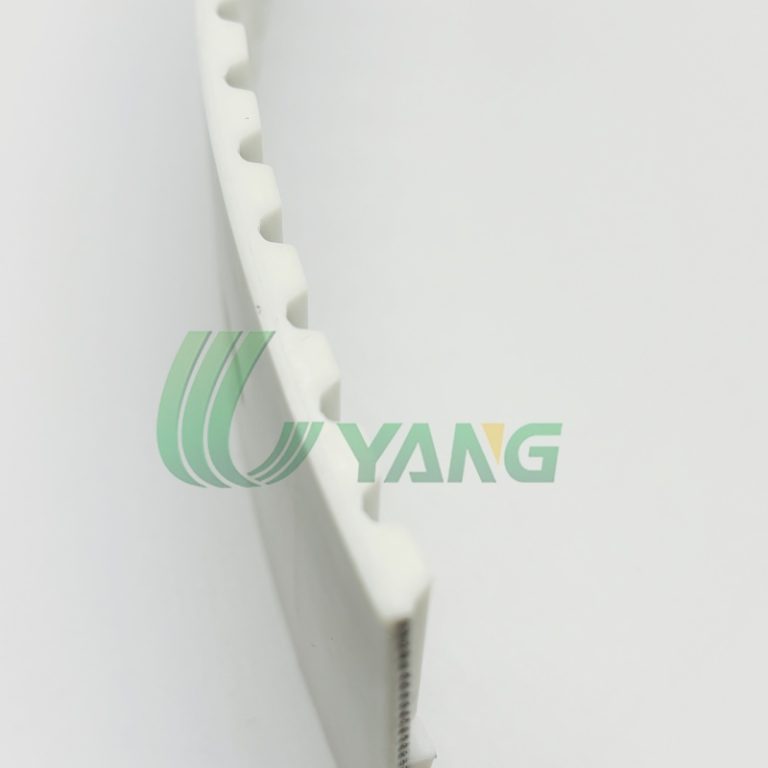

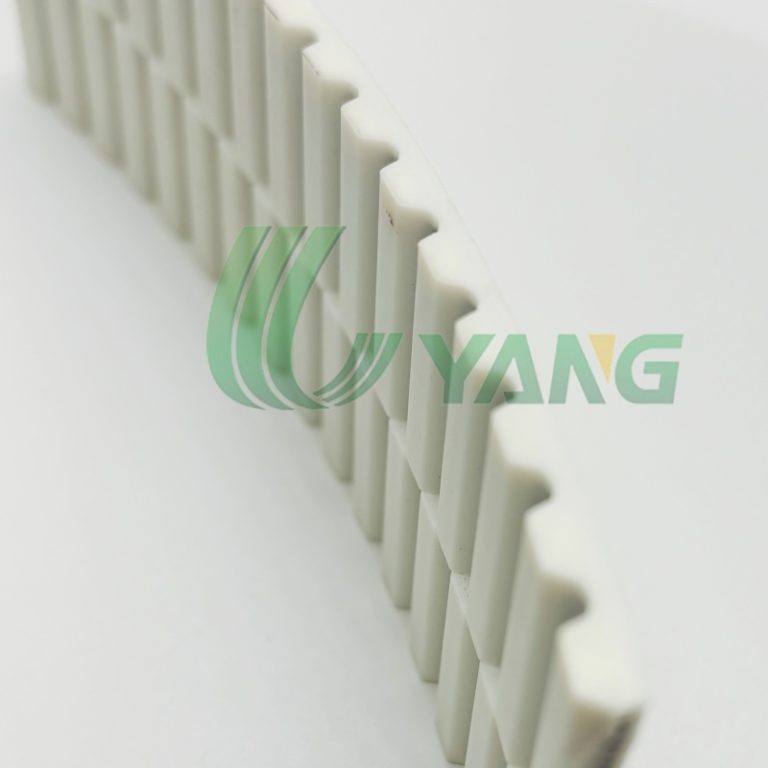

AT10 Curvilinear Tooth Profile
High load capacity and stable synchronization.
Integrated Transverse PU Flights
Designed for product separation and positioning.
One-Piece Molded Construction
No detachment risk compared to welded cleats.
High Positioning Repeatability
Ideal for indexing conveyors.
Durable TPU Body
Resistant to abrasion, oils, and industrial environments.
| Item | Specification |
|---|---|
| Tooth Profile | AT10 |
| Pitch | 10 mm |
| Back Structure | Integrated PU transverse flights |
| Standard Widths | 25 / 32 / 50 mm (custom available) |
| Operating Temperature | −20 °C to +80 °C |
| Belt Construction | TPU body + steel/aramid cords |
| Endless Type | Endless / Truly Endless |
Flight height, width, spacing, and layout can be customized.
Indexing conveyors
Packaging and sorting lines
Automated assembly systems
Product separation and positioning equipment
OEM machines requiring fixed-pitch carriers
SFAT10 belts are selected when synchronous conveying with built-in product handling elements is required.
| Feature | SFAT10 | AT10 + Welded Cleats |
|---|---|---|
| Flight Construction | One-piece molded | Welded |
| Mechanical Strength | Higher | Medium |
| Detachment Risk | Very Low | Possible |
| Positioning Stability | High | Moderate |
| Service Life | Longer | Standard |
Choose SFAT10 when long-term stability and structural integrity are critical.
Precision AT10 base geometry
Integrated molded flight structure
Stable pitch accuracy and load distribution
OEM customization based on drawings
UYANG BELTING focuses on function-integrated timing belt solutions built for industrial automation systems.
To provide an accurate quotation, please share:
Belt width and length
Flight height, thickness, and spacing
Endless type (endless / truly endless)
Load and conveying speed
Application environment
