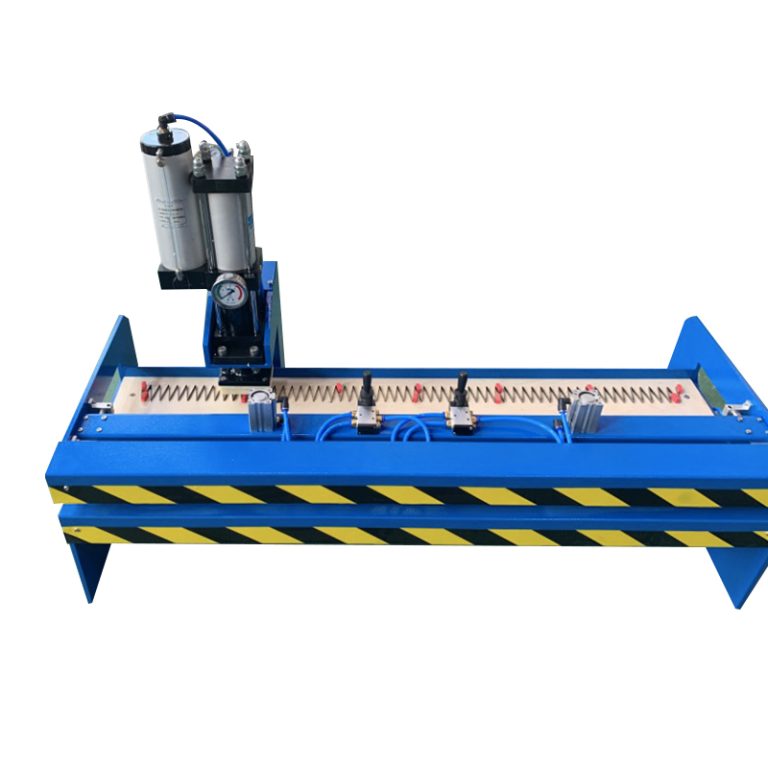

The UYANG Semi-Automatic Finger Puncher uses a compressed air–driven punching system to deliver stable, repeatable punching force for PVC and PU conveyor belt finger joints.
The pneumatic system replaces manual force with controlled air pressure, improving consistency and reducing operator fatigue.
The UYANG Semi-Automatic Finger Puncher uses a compressed air–driven punching system to deliver stable, repeatable punching force for PVC and PU conveyor belt finger joints.
The pneumatic system replaces manual force with controlled air pressure, improving consistency and reducing operator fatigue.
Consistent punching force across the entire belt width
Reduced physical effort compared with manual punchers
Improved repeatability for medium-volume production
Simple pneumatic structure, easy maintenance
| Item | Requirement |
| Air source | Industrial compressed air |
| Recommended pressure | Stable working pressure (typ. 0.6–0.8 MPa)* |
| Air quality | Clean, dry, oil-free air recommended |
| Connection | Standard pneumatic fittings |
| Control | Manual or foot-operated pneumatic valve |
* Actual pressure requirement may vary depending on punching board and belt thickness.
|
Size
|
UY1000
|
UY1600
|
UY2100
|
|
Max belt width
|
No Limited
|
No Limited
|
No Limited
|
|
Length
|
1250mm
|
1780mm
|
2280mm
|
|
Width
|
650mm
|
650mm
|
650mm
|
|
Height
|
1680mm
|
1700mm
|
1700mm
|
|
Weight
|
65kgs
|
111kgs
|
185kgs
|
|
Gross Weight
|
130kgs
|
208kgs
|
250kgs
|
|
Packing Information
|
1300*670*960mm
|
1800*670*960mm
|
2360*670*960mm
|
The machine is designed following basic industrial pneumatic safety principles, focusing on operator protection and predictable system behavior.
Key design considerations:
Controlled pneumatic actuation
Stable machine frame to prevent movement during punching
Clearly defined punching area
To ensure safe operation, the following guidelines should be strictly observed:
Always disconnect air supply before installing or changing punching boards
Keep hands and fingers away from the punching area during operation
Ensure the belt is properly positioned before activating the pneumatic system
Use appropriate personal protective equipment (PPE), such as safety gloves
Do not exceed recommended air pressure
Install the machine on a stable workbench or floor-mounted base
Ensure sufficient space around the machine for safe belt handling
Keep pneumatic hoses secured and free from sharp bends
Regularly check fittings and air lines for leakage
Periodically inspect pneumatic cylinders and valves
Check punching boards for wear or damage
Keep the punching area clean to avoid material buildup
Replace worn components promptly to maintain safety and accuracy
This equipment is intended for industrial use by trained personnel only.
Proper installation, operation, and maintenance are the responsibility of the user.
