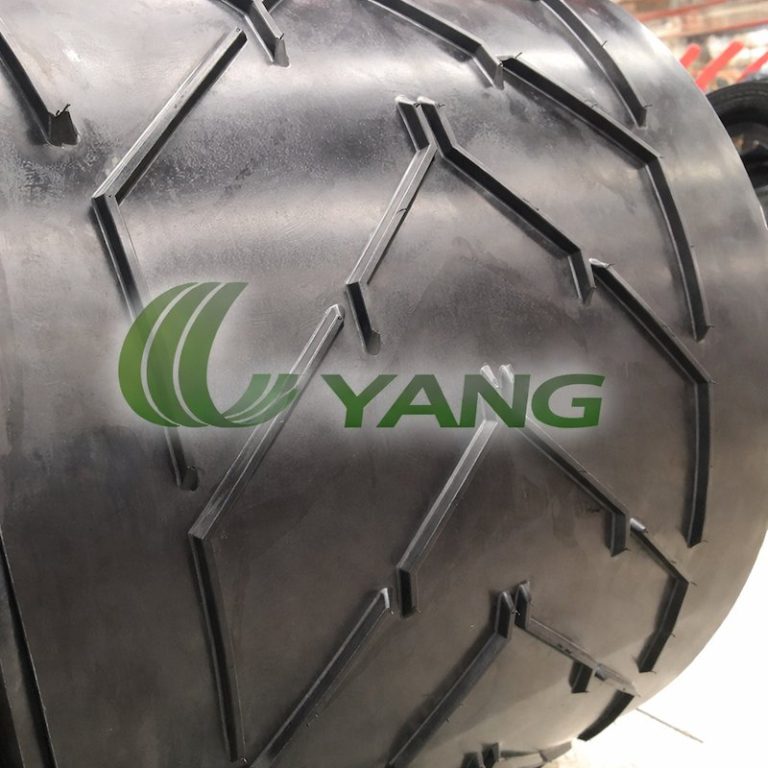

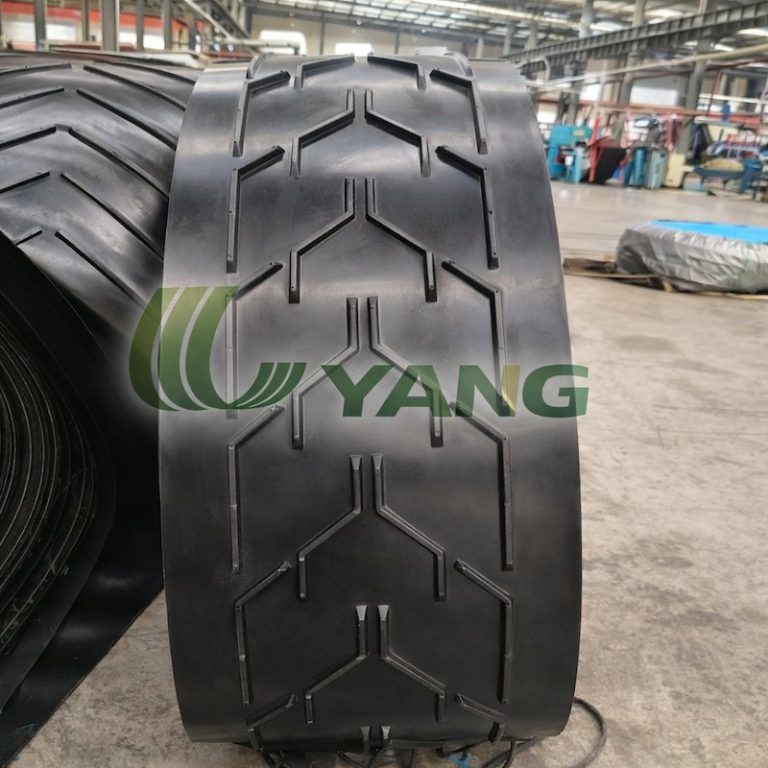

This is a closed / high-profile Chevron pattern conveyor belt.
Compared with open V patterns, the cleats are wider and partially connected, providing stronger material retention and improved stability under higher load.
Recommended for medium-to-steep incline conveying where smooth belts are insufficient and sidewall belts are not required.
This is a closed / high-profile Chevron pattern conveyor belt.
Compared with open V patterns, the cleats are wider and partially connected, providing stronger material retention and improved stability under higher load.
Recommended for medium-to-steep incline conveying where smooth belts are insufficient and sidewall belts are not required.
Base Belt
EP fabric (Polyester warp / Nylon weft)
Typical strength: EP200 – EP800
2–4 plies common for this pattern
Top Cover + Integrated Cleats
Molded in one process (no secondary bonding)
Cleat height: typically 15 / 20 / 25 / 32 mm
Abrasion-resistant rubber (DIN Y / W equivalent optional)
Bottom Cover
1.5 – 3 mm standard
| Item | Range |
|---|---|
| Belt Width | 500 – 2000 mm |
| Cleat Height | 15 – 32 mm |
| Max Incline | 35°–40° (material dependent) |
| Working Temp | -20°C to +80°C (standard compound) |
| Standard | DIN / ISO / GB / AS |
Incline capability depends on:
Particle size
Moisture content
Belt speed
Cleat height
Improved anti-rollback capacity
Higher load retention vs open V pattern
Better force distribution on cleats
Suitable for larger particle bulk material
Lower cost vs sidewall system
Crushed stone
Aggregates
Coal
Fertilizer
Wood chips
Agricultural grains
Not suitable for:
Extremely sticky clay without special compound
Fully vertical lifting (use sidewall belt)
When to choose this pattern:
| Condition | Recommended |
|---|---|
| Incline 20–30° | 15–20 mm cleat |
| Incline 30–35° | 20–25 mm cleat |
| Incline 35–40° | 25–32 mm cleat |
| Large lump size | Higher cleat preferred |
| Fine dry material | Medium cleat sufficient |
If incline > 40° → consider sidewall conveyor belt.

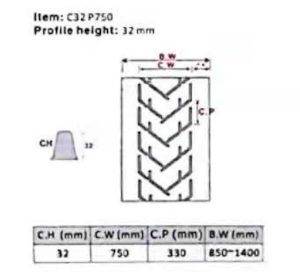

Closed Chevron Belt
Width: 1000 mm
Strength: EP500/4
Cover: 5+2 mm
Cleat Height: 25 mm
Standard: DIN Y
