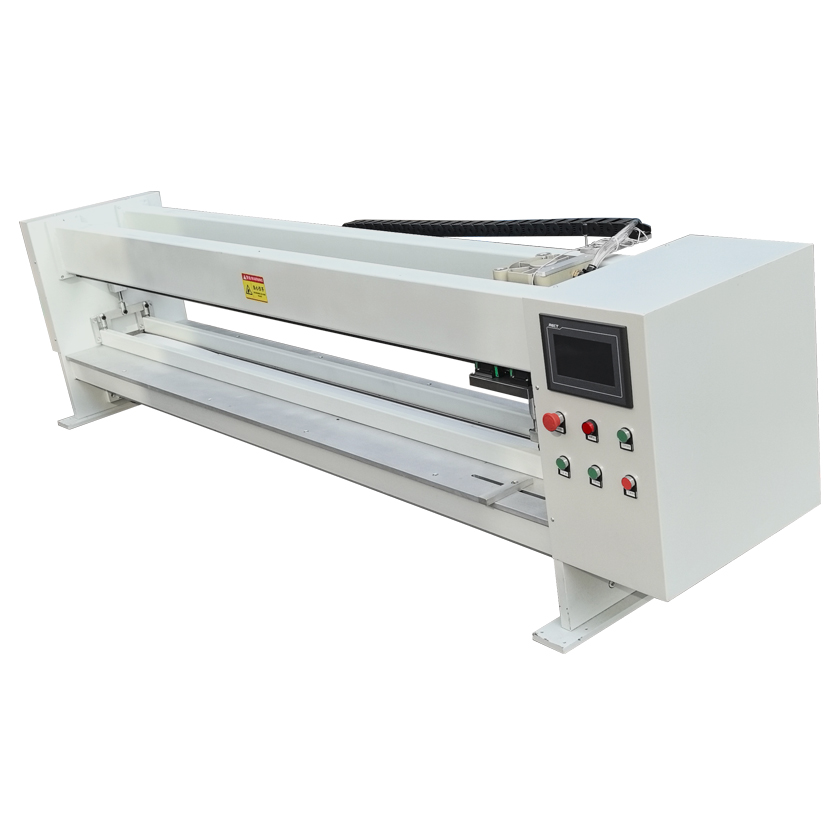

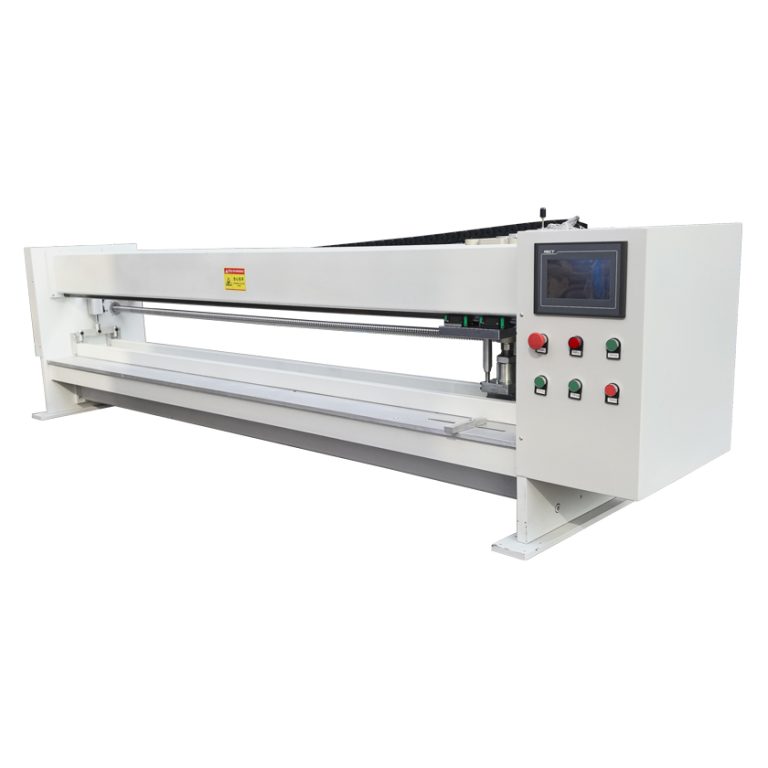

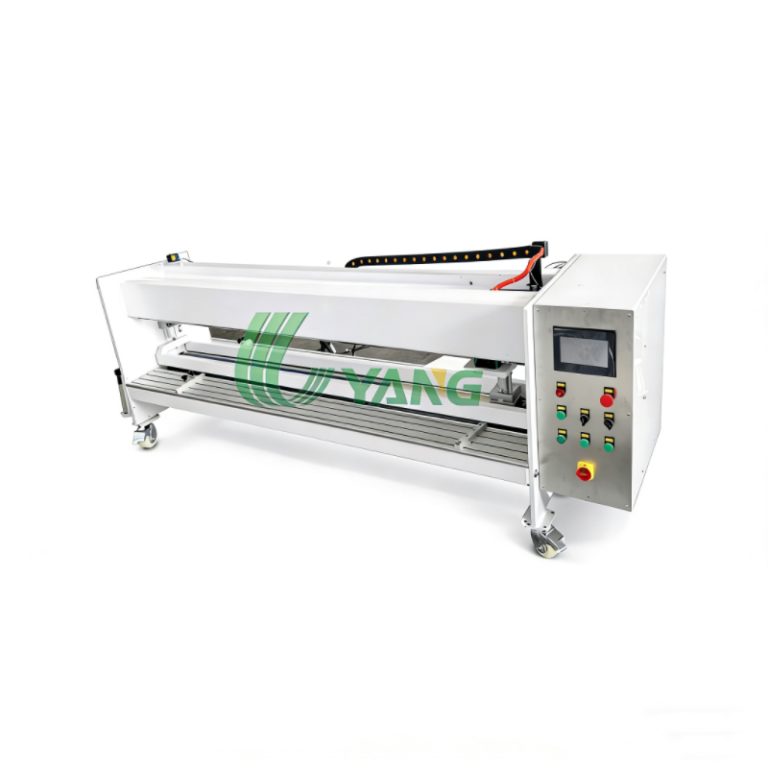

The UYANG Automatic Finger Puncher is designed for high-efficiency, high-precision finger joint preparation on PVC and PU light-duty conveyor belts.
It integrates automatic belt feeding, positioning, and punching, ensuring uniform finger geometry across the entire belt width.
This machine is intended for belt manufacturers and workshops with standardized or high-volume production requirements.
The UYANG Automatic Finger Puncher is designed for high-efficiency, high-precision finger joint preparation on PVC and PU light-duty conveyor belts.
It integrates automatic belt feeding, positioning, and punching, ensuring uniform finger geometry across the entire belt width.
This machine is intended for belt manufacturers and workshops with standardized or high-volume production requirements.
Fully automatic punching cycle
Uniform finger depth and pitch
Stable performance across full belt width
Suitable for continuous and batch production
Reduced labor input and operator dependency
The machine consists of:
Automatic belt feeding and positioning system
Precision-guided punching unit
Interchangeable punching boards
Integrated electrical control system
Heavy-duty machine frame for industrial operation
| Parameter | Specification |
| Application | PVC & PU conveyor belts |
| Operation mode | Fully automatic |
| Punching type | Finger joint |
| Effective width | Multiple widths available |
| Max. belt thickness | Depends on punching board configuration |
| Punching boards | Single finger / Double finger / Customized |
| Control system | Integrated electrical control |
| Power supply | Industrial power |
| Installation | Factory floor / Production workshop |
High repeatability for standardized belt joints
Improved production efficiency compared with manual and semi-automatic machines
Consistent joint quality across batches
Suitable for OEM and in-house belt manufacturing
Conveyor belt manufacturing plants
OEM belt processing lines
High-volume belt fabrication workshops
Customers requiring consistent joint quality
Custom effective punching width
Finger pitch and profile matched to belt type
Punching boards optimized for belt thickness
Electrical configuration adapted to local standards
Designed for operation by trained personnel only
Integrated emergency stop and control interface
Stable enclosure and guided punching area
Regular inspection and preventive maintenance recommended
(Detailed electrical and safety instructions are provided in the operation manual.)
