UYANG BELTING silicone belts deliver unmatched durability in food, pharmaceutical, and high-temperature applications, are Engineered for extreme heat resistance (-80°C to +300°C) and hygienic performance, The reinforced fabric construction ensures superior tear resistance while maintaining FDA-compliant food safety standards for demanding production environments.
UYANG BELTING silicone belts deliver unmatched durability in food, pharmaceutical, and high-temperature applications, are Engineered for extreme heat resistance (-80°C to +300°C) and hygienic performance, The reinforced fabric construction ensures superior tear resistance while maintaining FDA-compliant food safety standards for demanding production environments.
Why Choose This Belt?
→ Heavy-Duty for industrial abuse
→ Temperature-Proof for extremely hot/cold
→ Hygienic for food/pharma compliance
→ Customizable for specialized needs

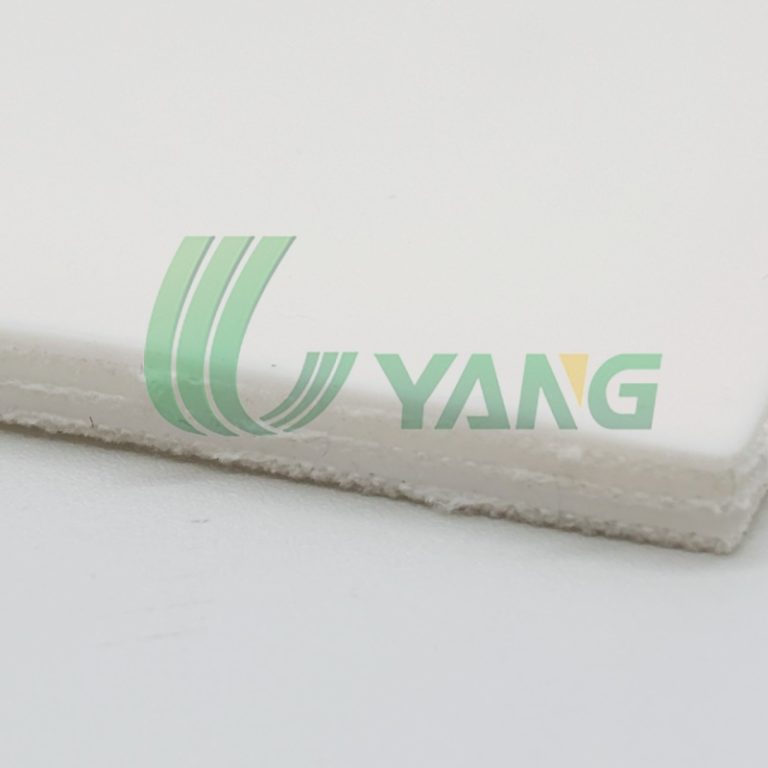

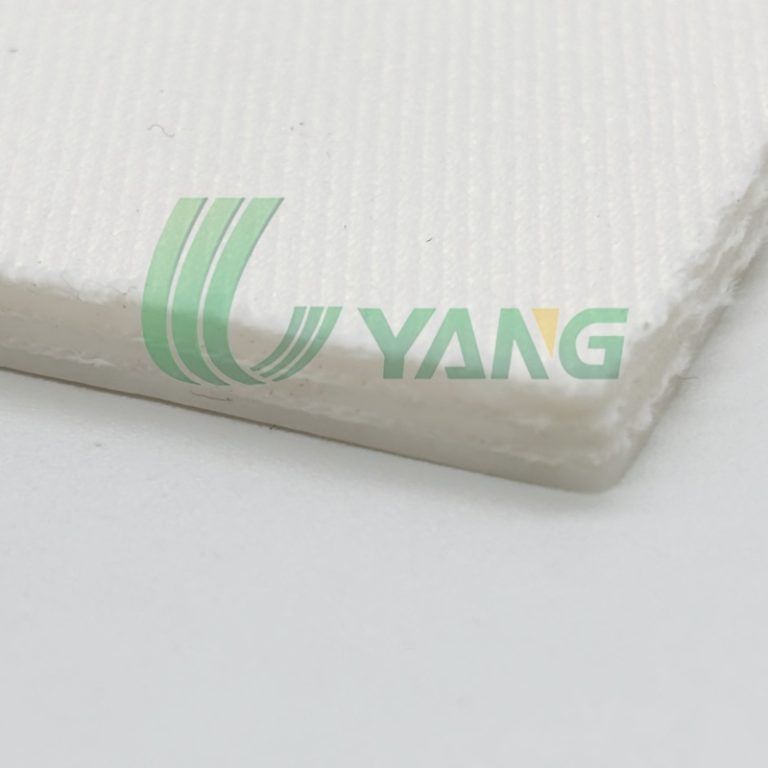

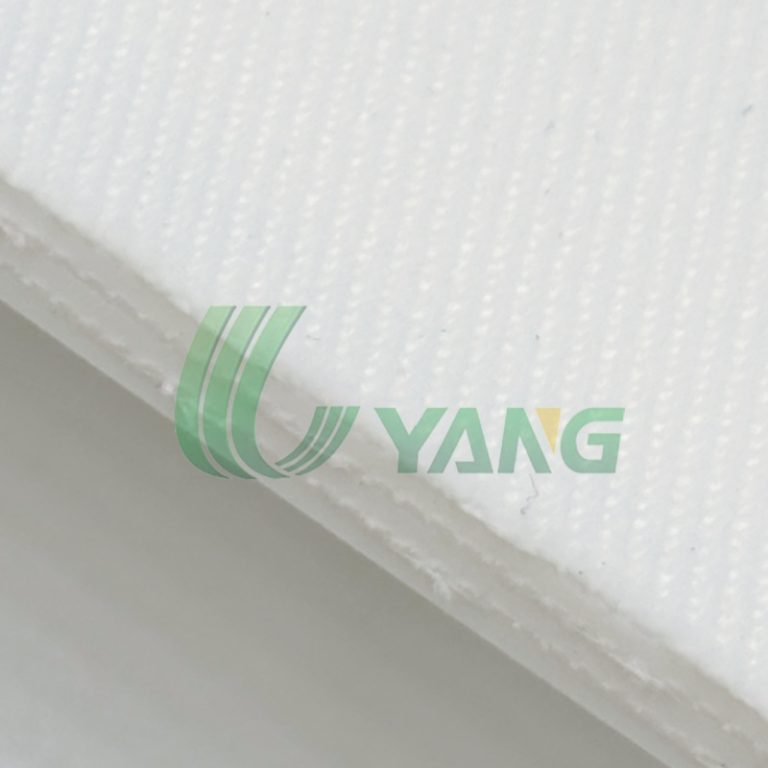

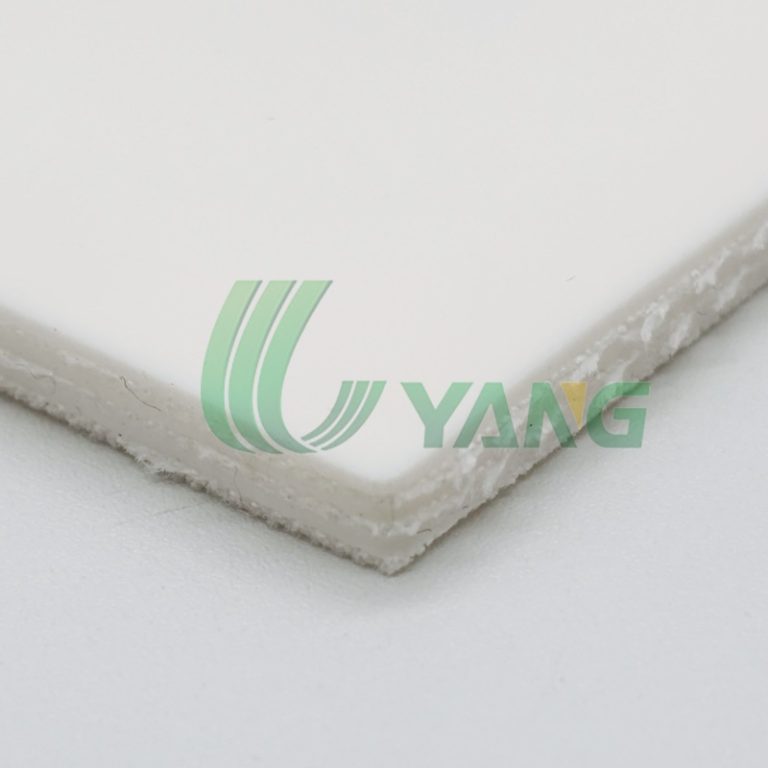

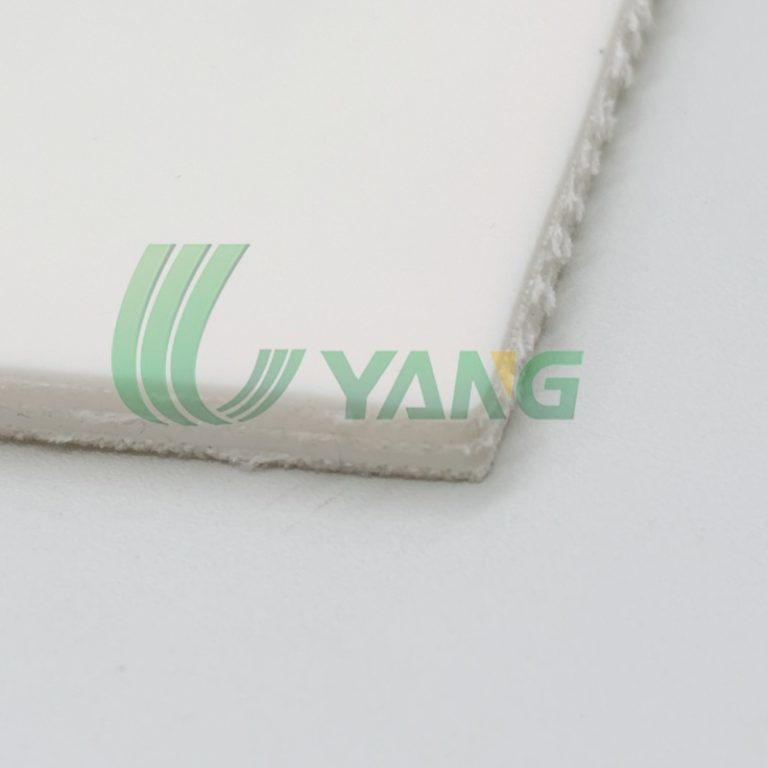

This triple-reinforced silicone belt features a 3-layer high-tensile polyester fabric + 3-layer food-grade silicone construction, delivering ultimate performance for extreme industrial applications.
✓ Military-Grade Strength: 3F3R structure provides 40MPa tensile strength for heavy-load conveying
✓ Ultra-Wide Temperature Range: Stable performance from -80°C to 320°C with ≥90° whiteness (Hunter Standard)
✓ Hygienic & Safe: FDA 21CFR177.2600 compliant, non-contaminating
| Top cover Material | Silicone |
| Top cover Thickness | 0.5 mm |
| Features | heat Resistance |
| Color | White |
| Surface | Smooth |
| Bottom Cover Material | fabrics |
| Bottom Cover Thickness | 0.5mm |
| Surface | smooth |
| Color | White |
Technical data:
| Total Thickness | 3.0 mm |
| Belt Weight: | 3.3 KG/M² |
| Fabric Plies | 3 ply |
| Tensile STRENGTH: | 300 N/MM |
| Min Wheel Diameter | 60/100 |
| 1% Elongational specified load | 18 N/mm |
Performance Comparison
| Feature | Standard Rubber Belt | Our Silicone Belt |
|---|---|---|
| Temp. Range | -20°C to 120°C | -60°C to 250°C |
| Tensile Strength | 8 MPa | ≥15 MPa |
| Service Life | 6–12 months | 3–5 years |
