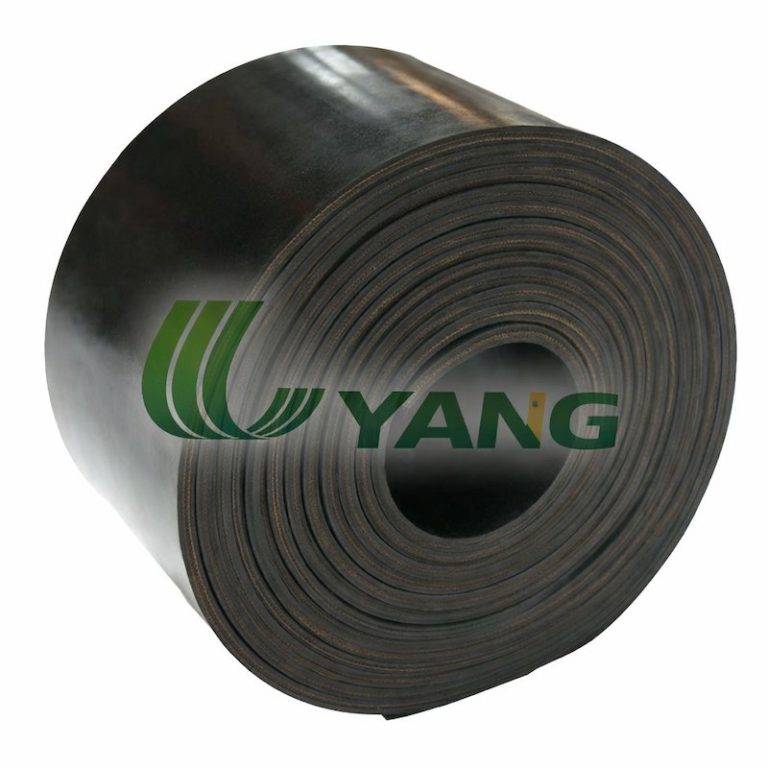

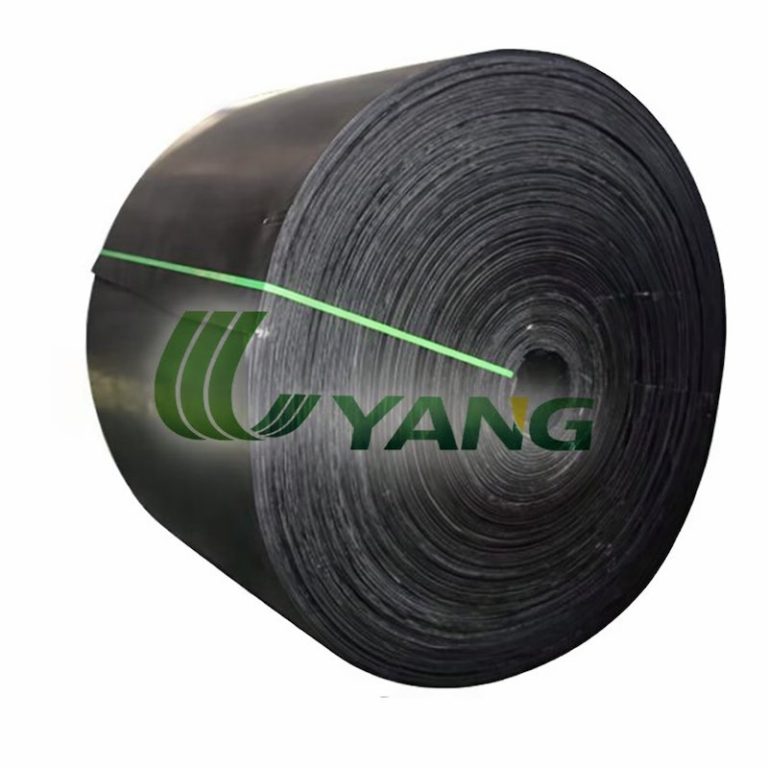

EP Fabric Conveyor Belt is a multi-ply rubber conveyor belt reinforced with polyester (E) warp + polyamide/nylon (P) weft fabric. It is designed for medium to heavy-duty bulk material handling with stable elongation, high tensile strength, and good impact resistance.
Suitable for mining, aggregates, cement, ports, metallurgy, fertilizer, power plants, and general industrial conveying.
EP Fabric Conveyor Belt is a multi-ply rubber conveyor belt reinforced with polyester (E) warp + polyamide/nylon (P) weft fabric. It is designed for medium to heavy-duty bulk material handling with stable elongation, high tensile strength, and good impact resistance.
Suitable for mining, aggregates, cement, ports, metallurgy, fertilizer, power plants, and general industrial conveying.
Top Cover Rubber
Wear-resistant / impact-resistant / optional heat, oil, or chemical resistant compound

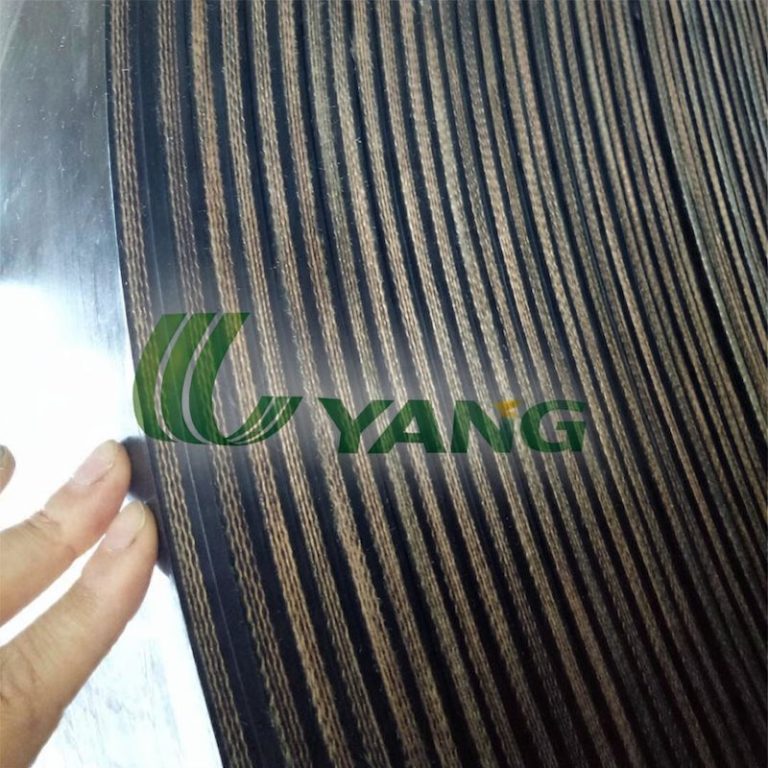

EP Fabric Plies (EP100–EP400 or higher)
Low elongation in warp direction (polyester)
Good troughability and impact absorption (nylon weft)
Bottom Cover Rubber
Standard abrasion-resistant rubber
Edge Type
Molded edge
Cut edge
| Item | Range |
|---|---|
| Belt Width | 300 – 2400 mm |
| Tensile Strength | EP100 – EP1000 (N/mm) |
| Ply Number | 2 – 6 plies (customizable) |
| Top Cover Thickness | 1.5 – 10 mm |
| Bottom Cover Thickness | 1.5 – 6 mm |
| Standard | DIN 22102 / ISO / GB / AS / JIS |
| Temperature | -20°C to +80°C (standard) |
Minimum pulley diameter depends on strength class and ply number.
General abrasion resistant (DIN Y / DIN W equivalent)
Heat resistant (T1 / T2 / T3)
Oil resistant
Cold resistant
Flame resistant (optional)
Selection is based on material type, temperature, and working environment.
Low elongation under load
High tensile strength per unit width
Good troughability
Stable dimensional performance
Suitable for long conveying distance
Cost-effective compared to steel cord belts for medium load systems
Crushed stone / aggregates
Sand & gravel
Coal
Cement clinker
Fertilizer
General bulk materials
Not recommended for steep incline conveying (Chevron or sidewall belt required).
EP400/3
Belt width: 1000 mm
Top/Bottom cover: 4+2 mm
Standard: DIN Y
Edge: Molded
Material name and size
Material temperature
Capacity (t/h)
Belt speed (m/s)
Conveyor length
Inclination angle
Required standard
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
