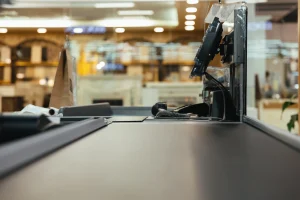

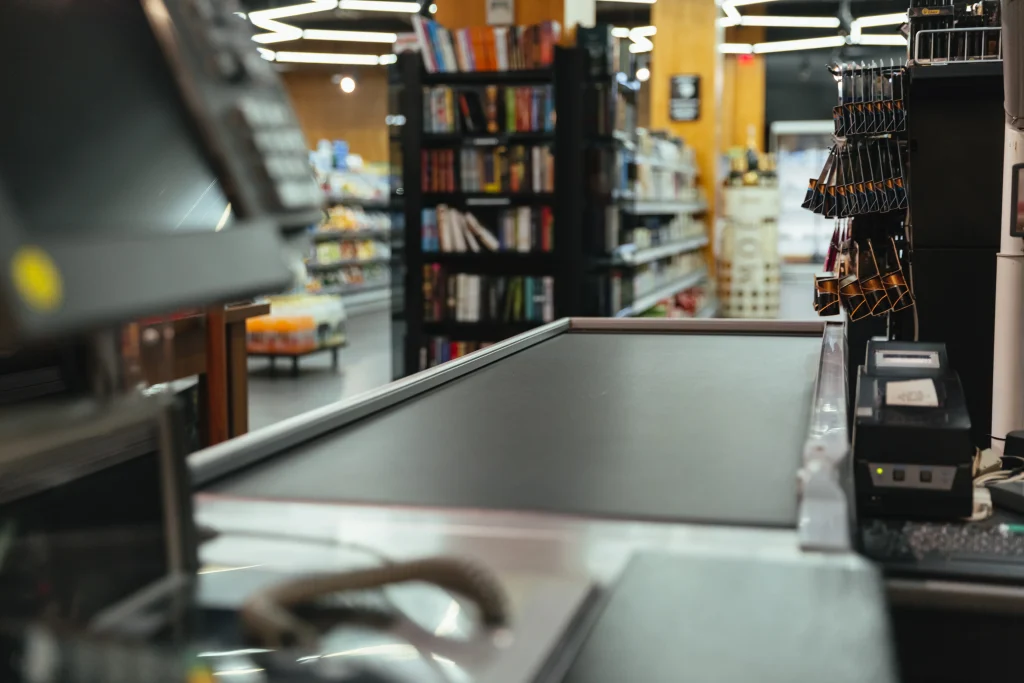

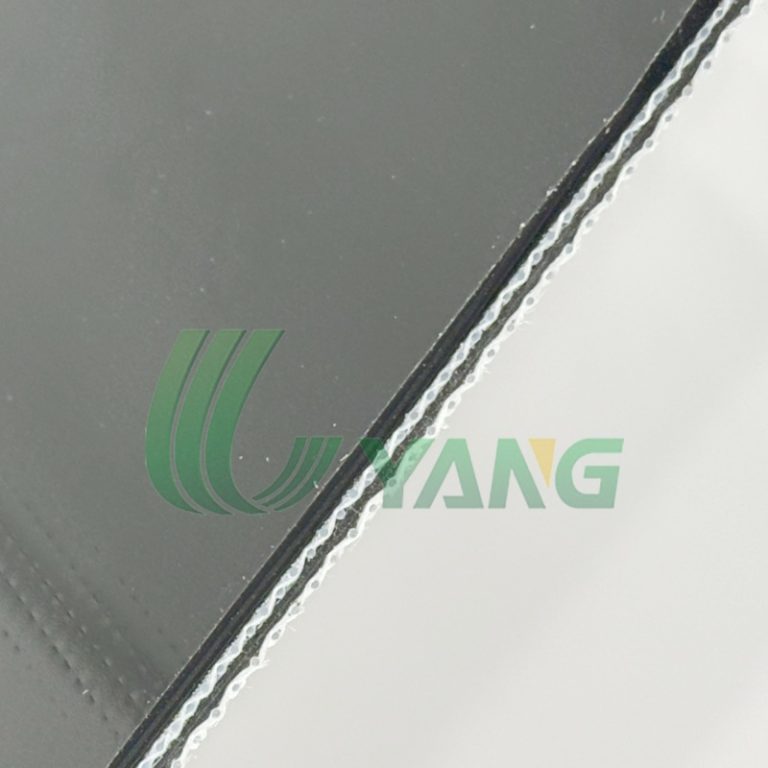

This matte black PVC conveyor belt is designed for supermarket checkout counters. It features a non-reflective surface and low-noise construction, ensuring smooth and quiet operation. Durable and easy to clean, it’s ideal for high-traffic retail environments.

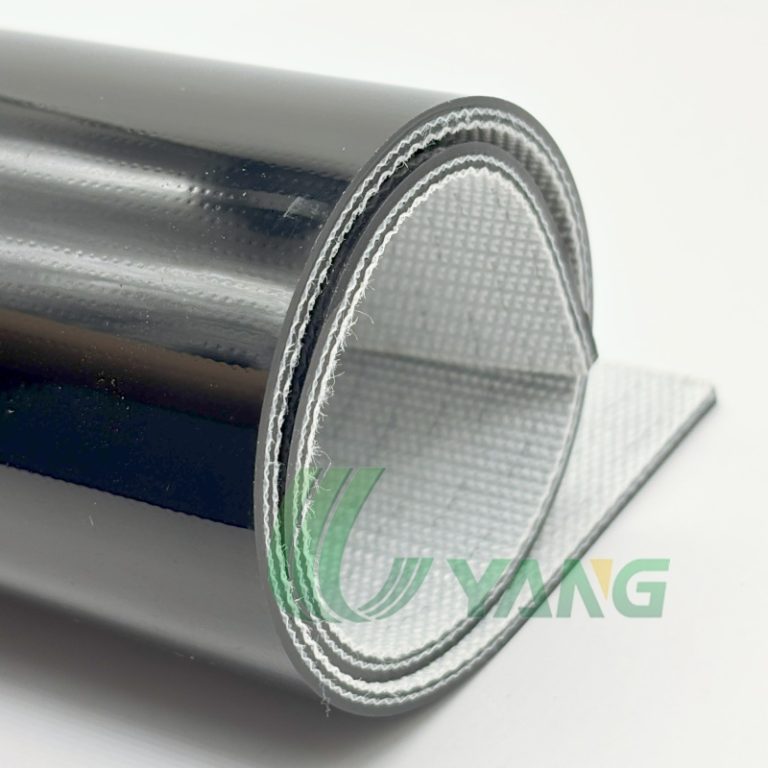

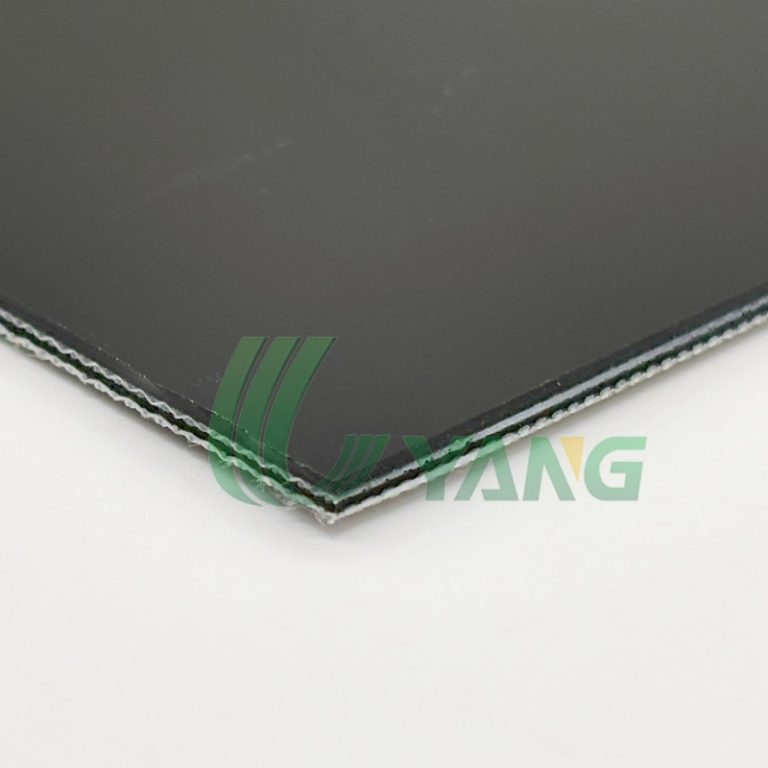

This matte black PVC conveyor belt is specially designed for supermarket checkout counters. Its non-reflective surface enhances visual aesthetics, while the low-noise fabric layer ensures quiet, smooth operation—ideal for customer-facing environments. The belt offers excellent wear resistance and easy cleaning, making it perfect for high-traffic retail applications where durability and quiet performance are essential.
|
Technical Specifications for Conveyor Belt |
||||
| 1. Functional purpose | ||||
| 1.1 | The conveyor belt is designed to be used as a driving element in the checkout counter and fulfils the function of moving the goods. | |||
| 2. Description | ||||
| 2.1 | Polyvinylchloride top coating | |||
| 2.2 | Significant elongation under tension | |||
| 2.3 | The fabric structure is resistant to abrasion in the transverse direction | |||
| 2.4 | Antistatic | |||
| 2.5 | Abrasion resistance | |||
| 2.6 | Suitable for small diameter pulleys | |||
| 2.7 | Lower fabric coating ensures low noise levels | |||
| 2.8 | Conveyor belt connection by the Z-tooth method | |||
| 3. Technical specifications | ||||
| 3.1 | Thickness | 2 mm | ||
| 3.2 | Length | 1860 mm; 2160 mm; 3460 mm; 4260 mm, or customized ; | ||
| 3.3 | Width | 500 mm,or customized ; | ||
| 3.4 | Specific weight | 2,3±10% kg/m2 | ||
| 3.5
|
Upper layer
|
Material | PVC | |
| Pattern | Matt | |||
| Type of surface | Matte smooth | |||
| Colour | Black | |||
| Shore hardness number | 80-92 shoreA | |||
| 4.6
|
Lower layer
|

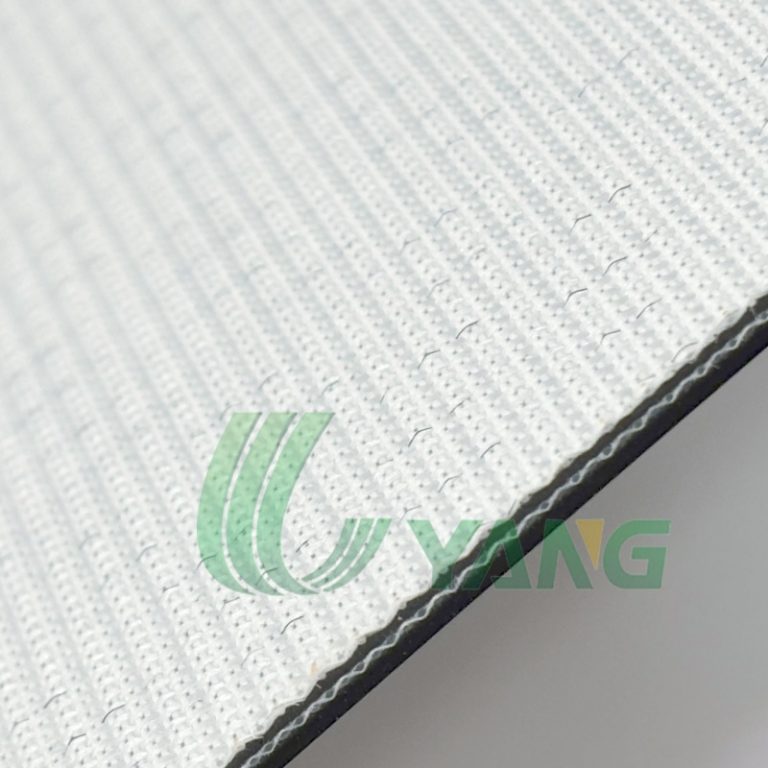

Material | Fabric ‒ polyester – 2 layers | |
| Pattern | Low Noise | |||
| Colour | Natural, no colour | |||
| 4.7 | Effective pull at 1% elongation | 10 N/mm | ||
| 4.8 | Tensile strength | 150 N/mm | ||
| 4.9 | Belt tension | 0,2 – 0,3% | ||
| 4.10 | Temperature range | -15°C to 80°C | ||
| 4.11 | Min. straight rounding | 30 mm | ||
| 4. Special requirements | ||||
| 4.1 | Warranty | ≥ 24 months | ||
| 4.2 | Necessary documentation supplied with the product in the Russian language | Technical specifications datasheet, operating instructions | ||
| 4.3 | Labelling on the inner surface | |||
| 4.4 | Dimensional drawing | To provide with a commercial offer | ||
