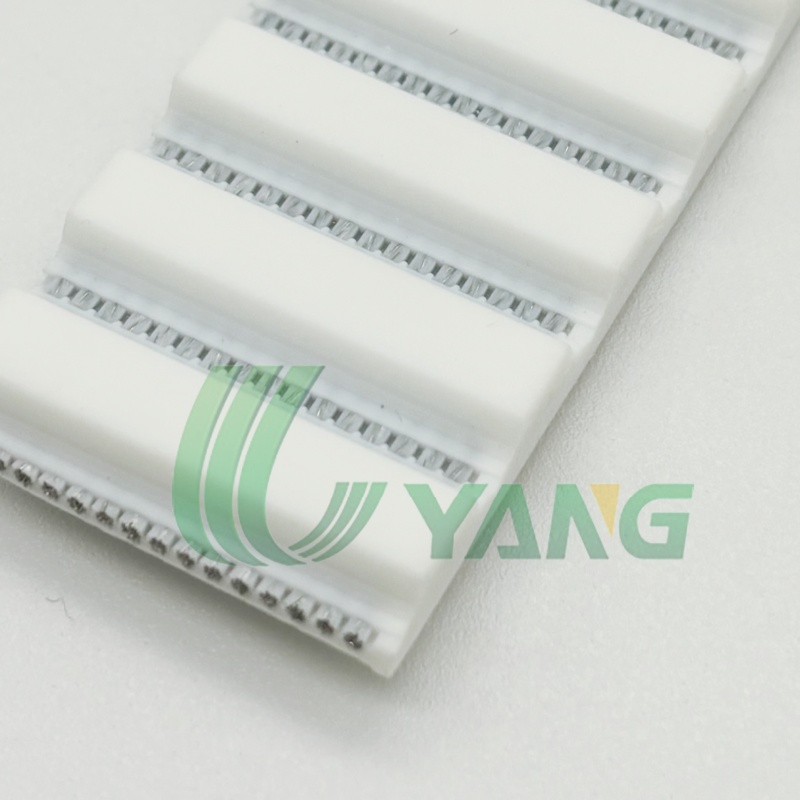

The UYANG AT5 Polyurethane Timing Belt is designed for applications that demand high positioning accuracy, compact design, and smooth, low-noise operation.
With a 5 mm pitch AT tooth profile, AT5 belts provide finer motion control and improved load distribution compared to traditional trapezoidal timing belts.
Manufactured from high-quality thermoplastic polyurethane and reinforced with low-elongation tensile cords, UYANG AT5 timing belts ensure stable synchronization, minimal backlash, and long service life in precision automation systems.
The UYANG AT5 Polyurethane Timing Belt is designed for applications that demand high positioning accuracy, compact design, and smooth, low-noise operation.
With a 5 mm pitch AT tooth profile, AT5 belts provide finer motion control and improved load distribution compared to traditional trapezoidal timing belts.
Manufactured from high-quality thermoplastic polyurethane and reinforced with low-elongation tensile cords, UYANG AT5 timing belts ensure stable synchronization, minimal backlash, and long service life in precision automation systems.
Brand: UYANG BELTING
Model: AT5 PU Timing Belt
Pitch: 5 mm
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
AT Tooth Profile – 5 mm Pitch
Optimized geometry for accurate meshing, reduced backlash, and smooth motion.
High Positioning Accuracy
Ideal for short stroke, high-precision linear drives and indexing systems.
Low Elongation, Stable Performance
Steel or aramid tension members provide excellent dimensional stability.
Wear & Chemical Resistance
TPU body resists oils, grease, ozone, and most industrial chemicals.
Quiet & Smooth Running
Fine pitch design reduces vibration and noise at high operating speeds.
| Item | Value |
|---|---|
| Tooth Profile | AT |
| Pitch | 5 mm |
| Standard Widths | 10 / 16 / 25 mm (custom available) |

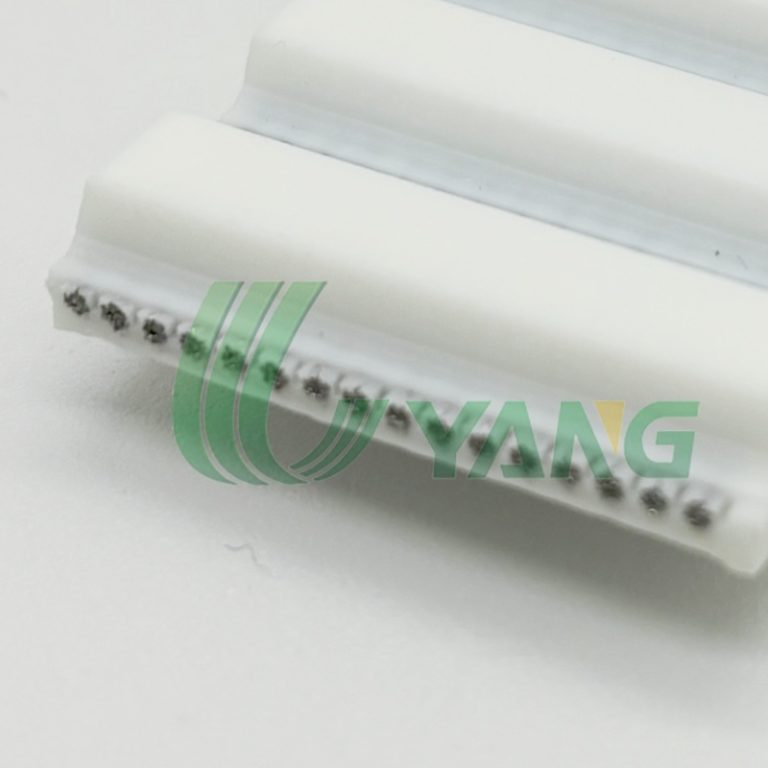

| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Color | White / Natural (custom colors available) |
| Manufacturing Type | Open End / Welded Endless / Truly Endless |
Custom dimensions, tolerances, and constructions are available upon request.
To meet different conveying and positioning requirements, AT5 timing belts can be supplied with:
PAZ (Tooth Side Fabric):
Reduced friction, quieter operation, improved positioning accuracy.
PAR (Back Side Fabric):
Low friction backside for slider beds and idlers.
PAZ + PAR:
Enhanced durability and stability for continuous-duty automation systems.
PU / Rubber / Silicone Backings:
High-friction, food-grade, or temperature-resistant solutions available.
Linear motion systems and positioning units
Pick-and-place automation equipment
Packaging, labeling, and inspection machines
Electronics and photovoltaic production lines
Compact power transmission systems
AT5 belts are especially suitable where compact pulley sizes and high precision are required.
| Feature | AT5 | AT10 |
|---|---|---|
| Pitch | 5 mm | 10 mm |
| Precision | Higher | High |
| Load Capacity | Medium | Higher |
| Typical Use | Linear motion, automation | Conveying, higher torque drives |
Choose AT5 when precision and compact design are the priority;
choose AT10 when higher torque and heavier loads are required.
Consistent pitch accuracy and stable quality
Engineering-driven customization support
Export-ready manufacturing standards
Reliable performance at competitive cost
UYANG focuses on practical industrial reliability, not just catalog specifications.
To receive a fast quotation or technical recommendation, please provide:
Required belt width and length
Endless type (open / welded / truly endless)
Tension member preference
Backing or surface requirements
Application details (speed, load, environment)
