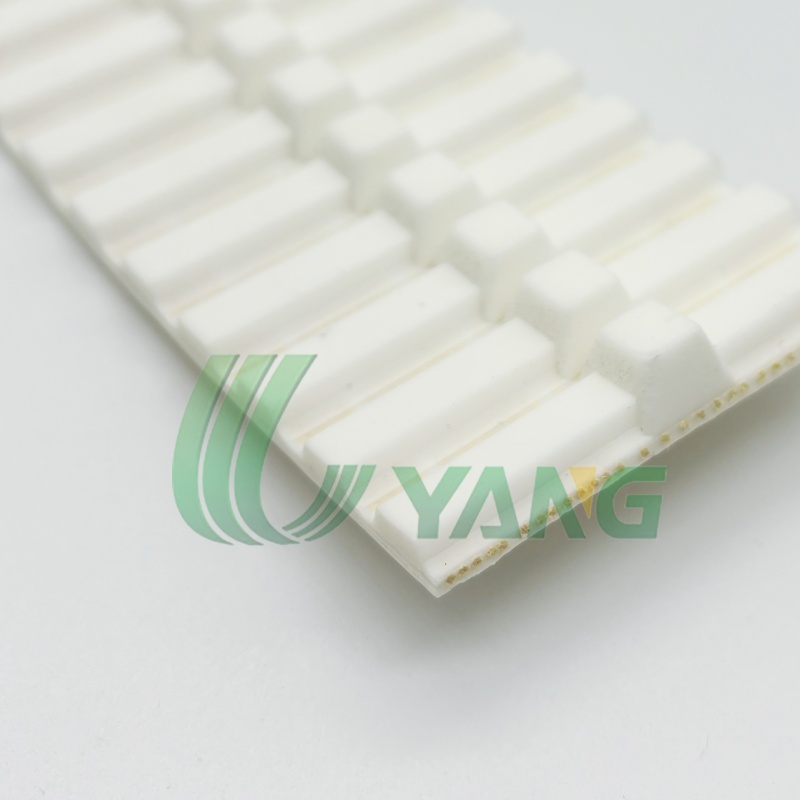

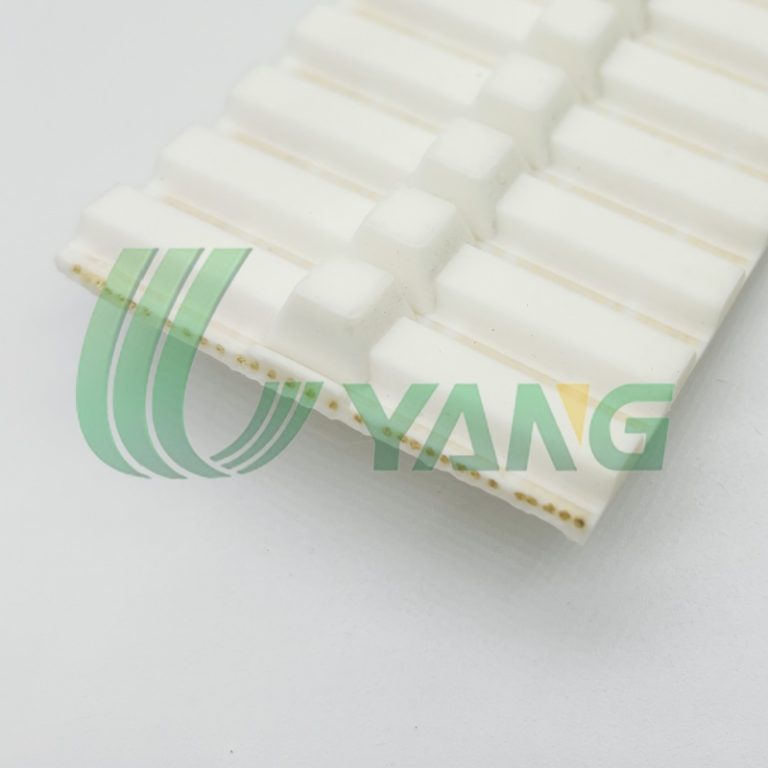

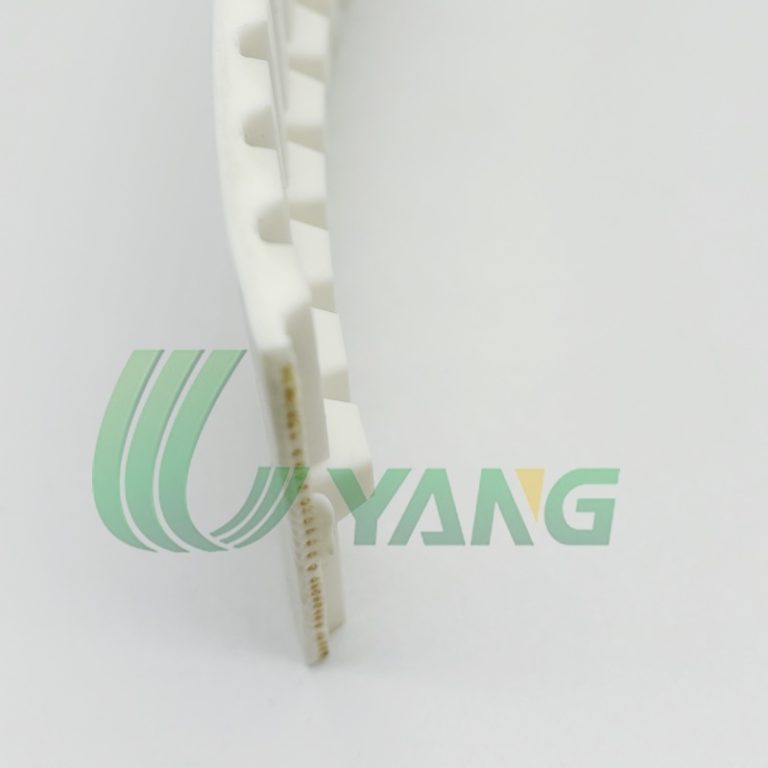

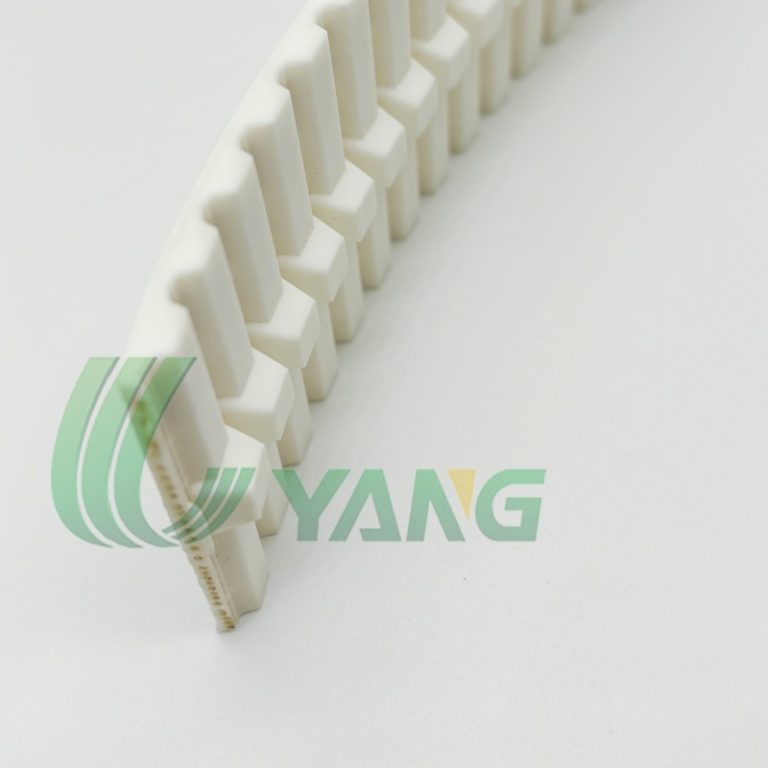

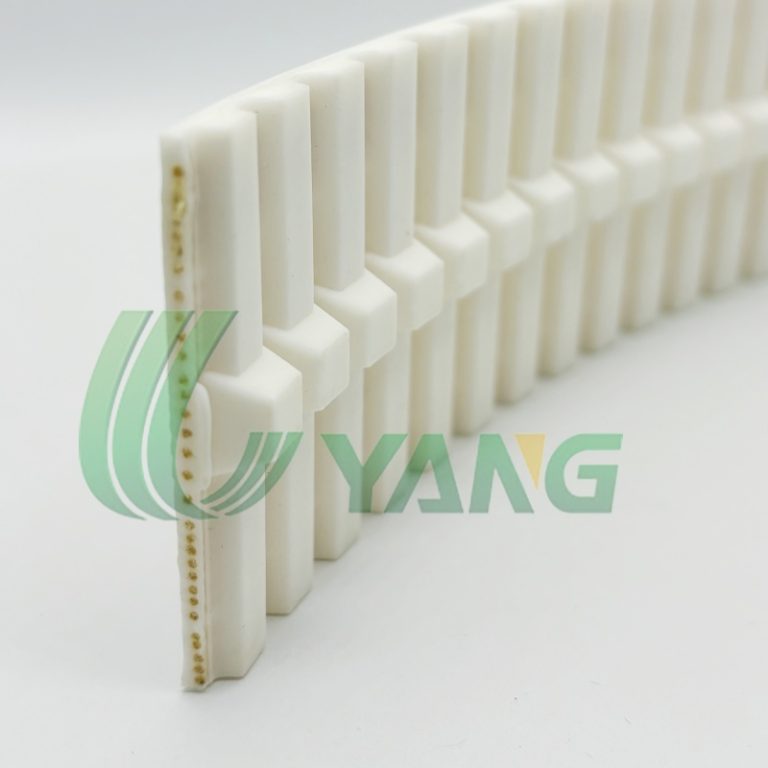

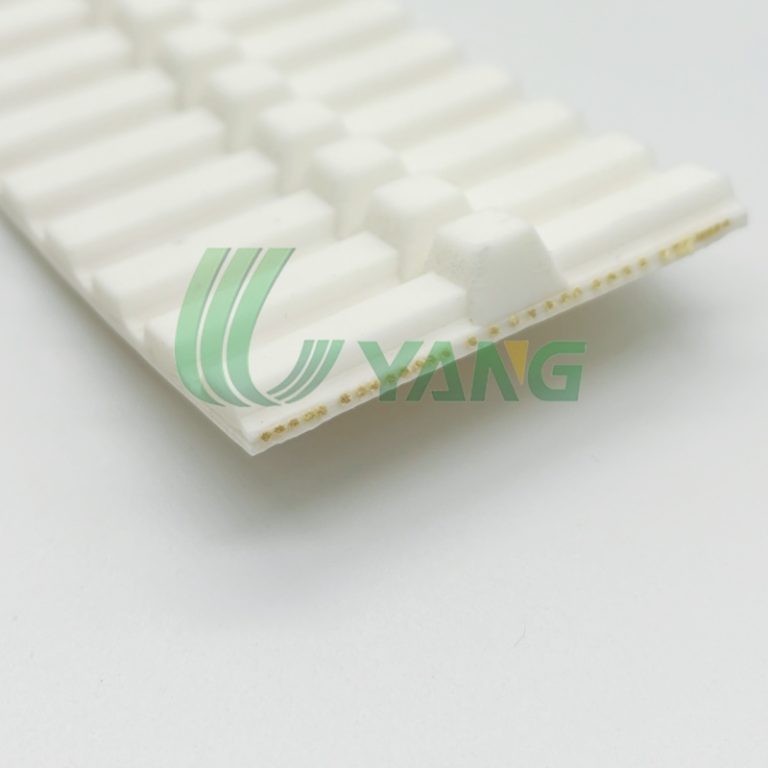

The UYANG AT10K10 Polyurethane Timing Belt is a special version of the AT10 timing belt, designed for synchronous conveying and positioning applications that require enhanced load engagement and precise product control.
Based on the AT10 profile, the K10 geometry allows the belt to be equipped with cleats, special tooth forms, or customized functional elements, making it suitable for applications where standard AT10 belts cannot provide sufficient positioning or conveying stability.
Manufactured from high-quality TPU and reinforced with high-strength tensile cords, UYANG AT10K10 timing belts deliver reliable synchronization, low elongation, and long service life in demanding industrial environments.
The UYANG AT10K10 Polyurethane Timing Belt is a special version of the AT10 timing belt, designed for synchronous conveying and positioning applications that require enhanced load engagement and precise product control.
Based on the AT10 profile, the K10 geometry allows the belt to be equipped with cleats, special tooth forms, or customized functional elements, making it suitable for applications where standard AT10 belts cannot provide sufficient positioning or conveying stability.
Manufactured from high-quality TPU and reinforced with high-strength tensile cords, UYANG AT10K10 timing belts deliver reliable synchronization, low elongation, and long service life in demanding industrial environments.
Brand: UYANG BELTING
Model: AT10K10 PU Timing Belt
Pitch: 10 mm
Tooth Profile: AT10K10
Material: Thermoplastic Polyurethane (TPU)
Tension Member: Steel Cord / Aramid Cord (optional)
| Item | Value |
|---|---|
| Tooth Profile | AT10K10 |
| Pitch | 10 mm |
| Standard Widths | 25 / 32 / 50 mm (custom available) |
| Belt Construction | TPU body + steel / aramid cords |
| Operating Temperature | −20 °C to +80 °C |
| Color | White / Natural (custom colors available) |
| Manufacturing Type | Open End / Welded Endless / Truly Endless |
Dimensions and constructions can be customized according to application requirements.
AT10K10 timing belts are commonly supplied with additional functional features, including:
Cleats / Flights
Straight, inclined, or custom-shaped cleats for precise product positioning.
PAZ / PAR Fabric Options
Reduced friction, quieter running, and improved durability.
PU or Rubber Backings
Increased friction for inclined or controlled conveying.
Machined or Customized Belt Backs
Slots, holes, or special contours available on request.
Synchronous conveying with positioning requirements
Packaging, indexing, and sorting systems
Automated production lines with product separation
Logistics and material handling equipment
Custom conveying solutions for OEM machinery
AT10K10 belts are typically selected where standard AT10 belts are insufficient for product control or functional integration.
| Feature | AT10 | AT10K10 |
|---|---|---|
| Tooth Profile | Standard AT10 | Special AT10K10 |
| Load Engagement | High | Enhanced |
| Customization Capability | Limited | High |
| Typical Use | General transmission | Synchronous conveying & positioning |
Choose AT10K10 when cleats, positioning elements, or customized functions are required.
Engineering-oriented customization capability
Stable quality and consistent pitch accuracy
Suitable for complex conveying and positioning systems
Export-ready production standards
UYANG BELTING focuses on function-driven timing belt solutions, not generic catalog products.
To receive a fast quotation or technical recommendation, please provide:
Required belt width and length
Endless type (open / welded / truly endless)
Cleat type, size, and spacing (if required)
Backing or surface requirements
Application details (load, speed, environment)
| Feature | AT10 | AT10K10 | AT10K13 |
|---|---|---|---|
| Base Pitch | 10 mm | 10 mm | 10 mm |
| Tooth Type | Standard AT | Special K10 | Special K13 |
| Load Engagement | High | Enhanced | Very High |
| Customization Capability | Low | High | Very High |
| Cleats / Flights | Limited | Recommended | Highly Recommended |
| Positioning Accuracy | High | High | Very High |
| Typical Use | Transmission & basic conveying | Synchronous conveying | Precision positioning & indexing |
The standard AT10 profile is suitable for general power transmission and precision conveying, offering a balance of load capacity, accuracy, and durability.
Typical applications:
Automation equipment, packaging machines, precision conveyors.
The AT10K10 profile is designed for synchronous conveying systems that require stable product separation, cleats, or functional belt elements.
Compared to standard AT10, AT10K10 offers improved engagement stability when used with flights or customized belt backs.
Typical applications:
Indexing conveyors, packaging lines, material separation systems.
The AT10K13 profile provides maximum load engagement and positioning stability within the AT10 pitch family.
It is typically selected for high-precision positioning, repetitive indexing, or heavy functional loads, where belt deformation must be minimized.
Typical applications:
Pick-and-place systems, precision indexing conveyors, OEM custom machinery.
Choose AT10
For standard transmission and precision conveying without functional elements.
Choose AT10K10
For synchronous conveying with cleats or moderate positioning requirements.
Choose AT10K13
For high-precision positioning, indexing, and demanding functional loads.
Engineering-driven profile selection
Stable pitch accuracy and low elongation
Designed for customized conveying solutions
Export-oriented manufacturing standards
UYANG BELTING focuses on function-first timing belt solutions, helping OEMs reduce system complexity and improve reliability.
