Built for the demanding conditions of tire production, the UY-38100Z modular ball net belt delivers excellent strength and flexibility. Its open-mesh design and integrated roller structure ensure efficient air circulation and smooth product transfer, reducing wear and improving cooling efficiency across the production line.
Built for the demanding conditions of tire production, the UY-38100Z modular ball net belt delivers excellent strength and flexibility. Its open-mesh design and integrated roller structure ensure efficient air circulation and smooth product transfer, reducing wear and improving cooling efficiency across the production line.
Smooth ball-transfer design for effortless product movement
Strong PP + nylon construction for long service life
37% open area for faster cooling and airflow
Easy to install, clean, and maintain
Stable conveying with precise sprocket engagement
Customizable width and sprocket options
Ideal for tire cooling and transfer lines

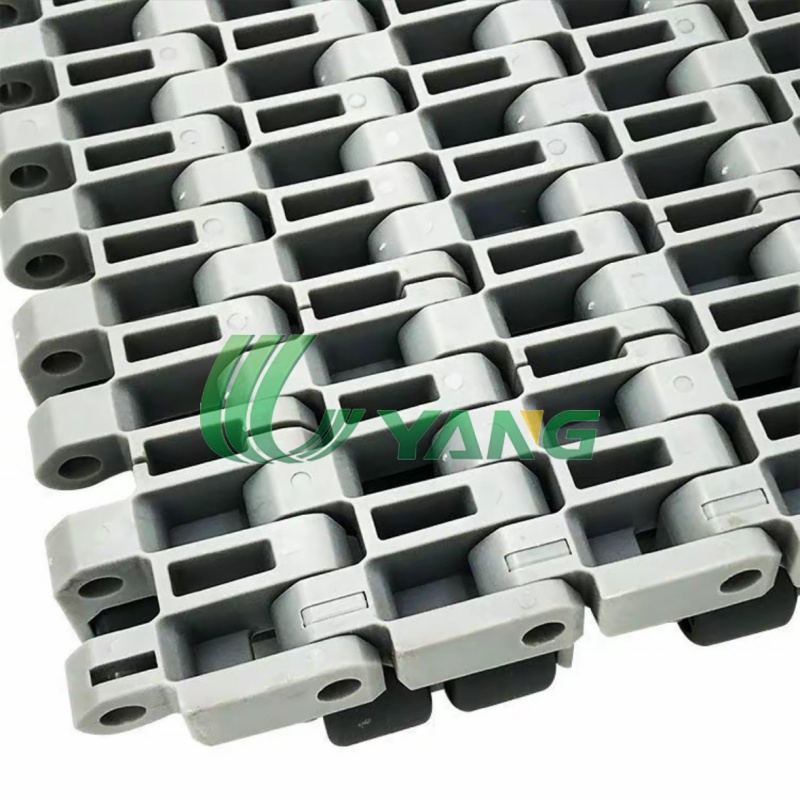

The UY-38100Z Ball Net Conveyor Belt is purpose-built for tire factories and heavy industrial conveying systems.

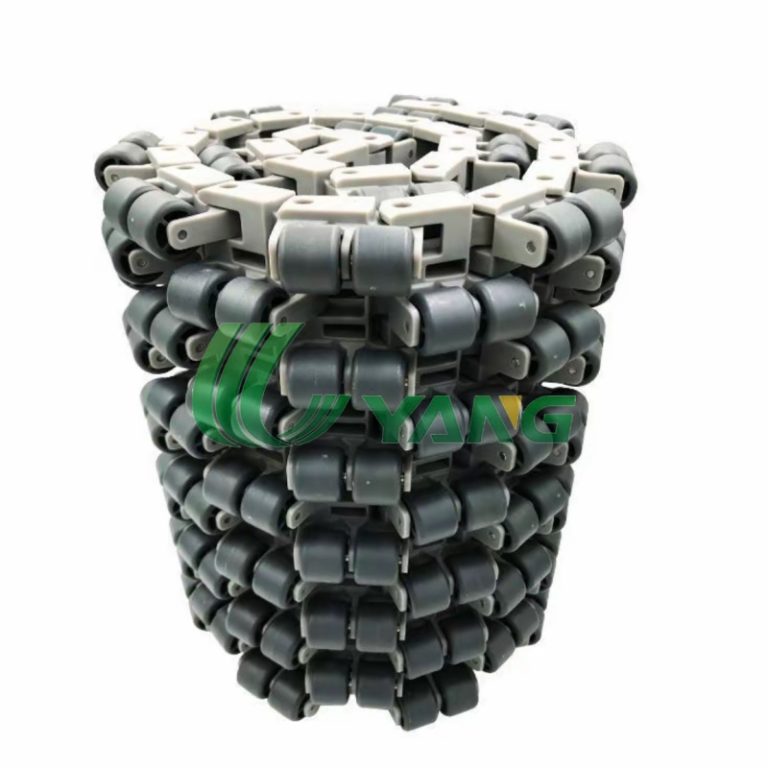

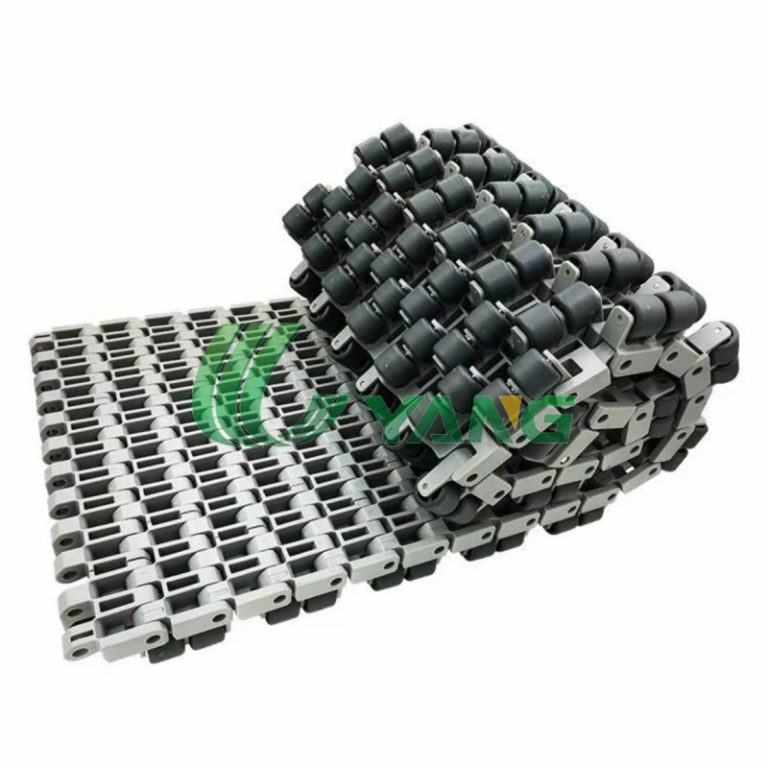

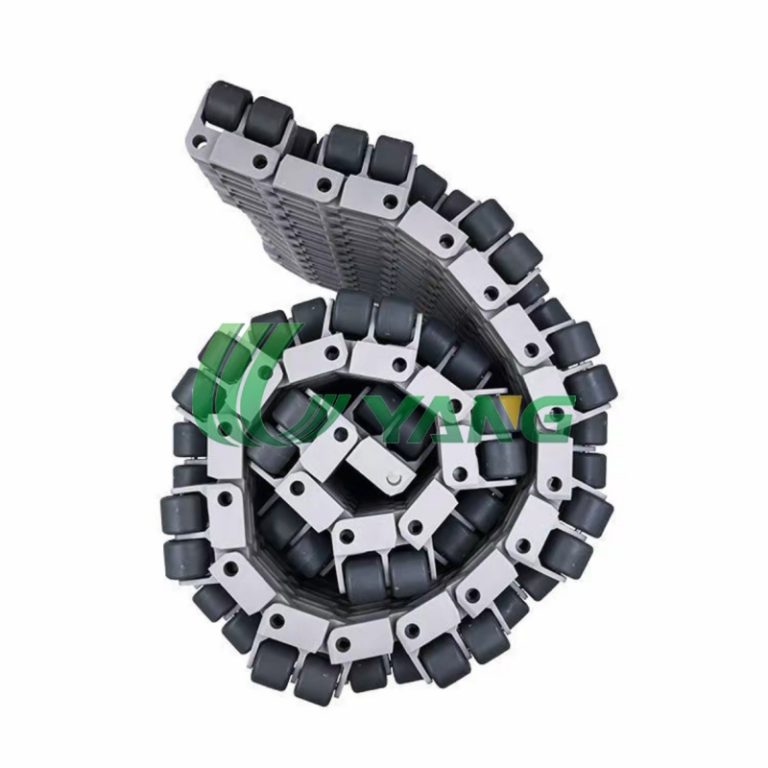

It features an innovative roller-ball structure that allows products to move smoothly with minimal friction, making it perfect for cooling and transfer sections in the tire production process.
Each belt module has a standard width of 304.8 mm, and the modular design allows easy customization and assembly for various conveyor layouts. The smooth-rolling surface prevents product deformation, reduces drag, and extends the belt’s service life.
Whether used for tire cooling, product transfer, or packaging lines, the UY-38100Z delivers stable, reliable, and efficient conveying performance under continuous heavy-duty operation.
| Parameter | Specification |
|---|---|
| Belt Material | PP/POM |
| Rod Material | Nylon |
| Working Load (21 °C) | 32,000 N/m |
| Belt Pitch | 50.8 mm |
| Rod Diameter | 8 mm |
| Backflex Radius | 30 mm |
| Open Area | 37% |
| Width of Single Module | 304.8 mm |
| Applicable Width | Multiple of 50.8 mm |
| Spec | Teeth | Bore Diameter (mm) | Bore Diameter (mm) | Pitch
Diameter |
Outer Diameter | Forming Way |
|---|---|---|---|---|---|---|
| 38100Z-12T | 12 | 30 (Round) | 60
( square) |
5.70″ / 144.9mm | 5.9″ / 150 mm | Injection Molding |
| 38100Z-14T | 14 | 40 (Round) | 40-50
(square) |
7.02″ / 178.3 mm | 7.04″ / 179 mm | Injection Molding |
| 38100Z-16T | 16 | 60 (Round) | 40/50/60
(square) |
7.89″ / 200.6 mm | 7.91″ / 201 mm | Injection Molding |
Special tooth counts available upon request.
Designed specifically for tire factory conveying and cooling systems
Strong PP + nylon construction for high load capacity and long lifespan
Roller-ball design minimizes friction and supports multi-directional transfer
Easy installation, low maintenance, and customizable width options
Proven reliability under continuous heavy-duty operation
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
