UYANG BELTING T30 Series/ XP Series Staple Fastening System delivers a strong, long-lasting splice by combining a heavy-duty applicator with wear-resistant staples and hinge pins — built to perform in the toughest mining conditions.
UYANG BELTING T30 Series/ XP Series Staple Fastening System delivers a strong, long-lasting splice by combining a heavy-duty applicator with wear-resistant staples and hinge pins — built to perform in the toughest mining conditions.
Reliable heavy-duty fasteners for stronger, longer-lasting conveyor splices.
High strength: Handles belt rating up to 2000 PIW.
Long life: Larger loop design extends splice durability.
Easy install: Smooth, low-profile splice with minimal downtime.

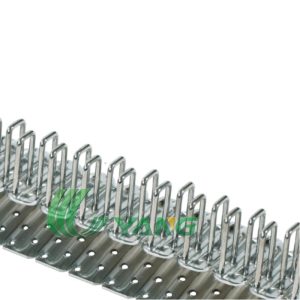

UYANG BELTING Heavy-Duty Mechanical Fasteners
High Strength: Rated from 800 to 2000 PIW (belt strength 1400–3500 kN/m) for solid woven PVG/PVC belts.
Belt Compatibility: Works with belts 1/4” to 25/32” (6–20 mm) thick after skive.
Pulley Range: Suitable for pulleys 10” to 20” (250–500 mm).
Durable Materials: Steel and stainless steel fastener plates with preset staples for consistent performance.
Accurate Installation: Sets one fastener at a time with minimal misdrives or tool jams.
Extended Splice Life: Larger loop area accommodates bigger pins for easier insertion and longer-lasting splices.
Low-Profile Design: Smooth splice compatible with belt cleaners and other conveyor components.
Enhanced Strength: Cold-rolled steel provides uniform mechanical properties and up to 50% increased tensile strength.
Ease of Use: Integrated guide plate simplifies loading and fastening of heavy belts.

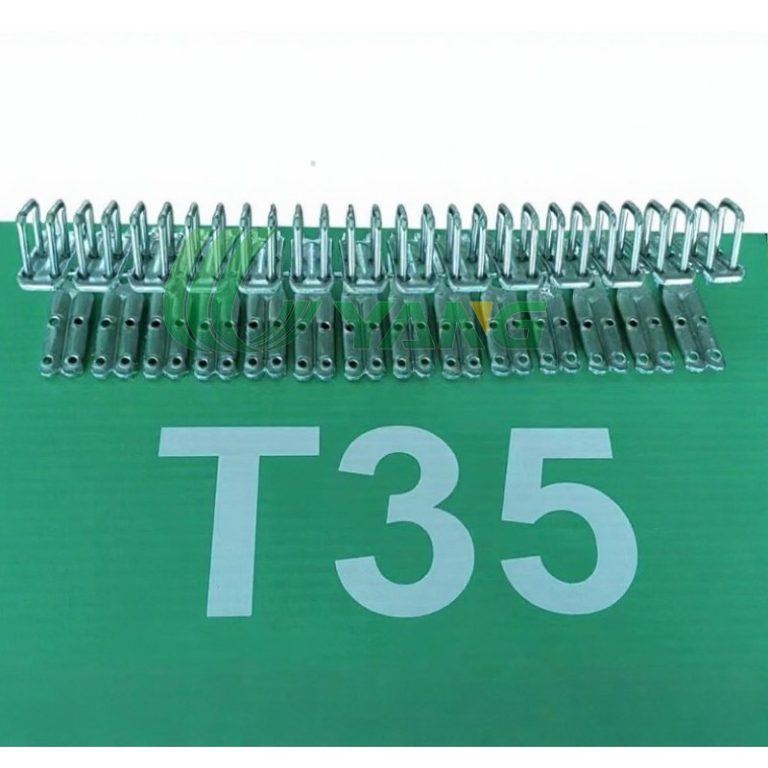

| MODEL: T35; Belt Thickness(mm): 7-11mm; Belt Tensile Strength (N/mm): ≦1250; Min Dia of Pulley(mm): 250; Pin Model: SS7 / SSP7;
|

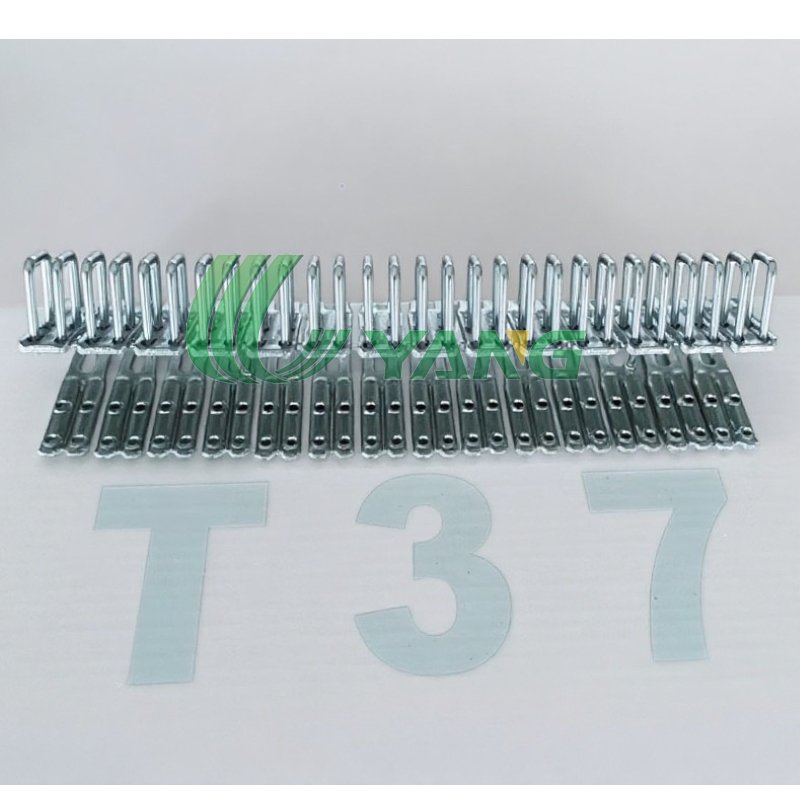

MODEL: T37; Belt Thickness(mm): 10-14mm; Belt Tensile Strength (N/mm):≦1800; Min Dia of Pulley (mm):400; Pin Model:SS7-9 / SSP7-9;
|
| MODEL: T38; Belt Thickness (mm): 10-14mm; Belt Tensile Strength (N/mm):≦2000; Min Dia of Pulley (mm):500; Pin Model:SS9/ SSP9
|
MODEL: T38; Belt Thickness (mm): 14-18mm; Belt Tensile Strength (N/mm):≦2000; Min Dia of Pulley (mm):500; Pin Model:SS9/ SSP9
|
Heavy-Duty Industrial Conveyors – Designed for solid woven PVG/PVC belts, ideal for high-load production lines.
Mining & Quarrying – Perfect for long conveyors transporting sand, gravel, or ore.
Construction & Cement Industry – Handles high-wear, high-strength environments with durable splices.
Heavy Logistics & Warehousing Systems – Provides quick and reliable splices for long or continuously running belts.
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
