For tire manufacturers, the conveyor line is not just a transportation tool. It defines the heartbeat of the plant. The wrong layout or belt type can slow down production, waste energy, or even damage the product surface. So how do you pick the right system that fits your layout and keeps everything running at full speed?
What Factors Should You Consider When Designing a Tire Plant Conveyor Layout
Designing a conveyor system for tire manufacturing isn’t only about connecting machines. It’s about keeping the entire process in harmony — from raw material feeding to finished tire transfer. Understanding your workflow, available space, and safety conditions will help you make better layout decisions.
Workflow and Production Line Efficiency
A tire plant is like a chain reaction — mixing, calendering, cutting, building, curing, and inspection. Each zone connects to the next, and materials must move at just the right pace. When the conveyor layout matches the production rhythm, workers move less, bottlenecks disappear, and energy use drops.
For example, many plants design the calender and cutting sections in a straight line with minimal manual transfer. Flat PVC belts are often used here because they provide stable movement for rubber sheets and fabric without distortion. Keeping conveyors at the same height also helps materials slide smoothly into the next process.
Space Utilization and Flexibility
Floor space is expensive. In most tire factories, there’s barely room to spare between machines. That’s why conveyor systems must be flexible. Multi-level layouts or adjustable-height conveyors help make use of every square meter. Flat belts can be fitted at gentle inclines (up to 16°), allowing vertical movement without losing stability.
A compact design doesn’t just save space; it also reduces energy loss from long-distance transfer. When properly arranged, one motorized drive can power multiple sections.
Safety and Maintenance Requirements
The tire industry isn’t the cleanest environment — you’ll find dust, oil mist, and occasional high heat. A good conveyor belt must resist wear, slippage, and chemical exposure. It should also be easy to clean and repair during shift breaks.
Using belts with good grip textures and sealed edges reduces slipping and contamination, especially around calendering zones where rubber powder tends to collect.
Why Is Material Selection So Important for Tire Conveyor Belts
The material of a conveyor belt decides how it performs under pressure, heat, and constant friction. Tire production environments vary widely, so choosing the right belt composition is essential for both efficiency and safety.
Heat and Wear Resistance in Mixing and Curing Areas
In mixing and curing, temperatures often exceed 100°C. Regular belts can harden or crack under these conditions. That’s why many factories use PVC or PU composite belts — they stay stable under heat and resist abrasion from hot rubber and metal parts.
For example, UYANG BELTING’s PVC Conveyor Belt – Polyester Woven Cotton Top performs well in such environments. Its cotton surface provides a natural anti-slip texture, while the polyester layer strengthens the belt against stretching during long production cycles.
Static and Chemical Resistance in Cutting and Building Sections
Cutting and building zones involve fine rubber dust, solvents, and adhesives. A belt that builds up static or absorbs chemicals can be a safety hazard. PU-coated cotton canvas belts help here. They resist static buildup and stay clean after long hours of operation.
The 2.5mm Cotton Canvas PU Conveyor Belt from UYANG BELTING is a practical choice. It’s lightweight yet strong enough to support continuous transfers between cutting tables and building drums.
Performance Balance Between Strength and Flexibility
Some conveyor lines handle heavy green tires; others move soft sheets that deform easily. Belts must balance tensile strength and flexibility.
In vulcanization areas, heavy molds and tires demand tougher belts like UYANG BELTING’s 3.0mm Cotton Canvas PU Conveyor Belt — thicker construction, higher load capacity, and excellent cut resistance. It withstands constant pressure and temperature variations.
Which Conveyor Belt Types Work Best for Tire Production Lines
Choosing the right belt type depends on where it’s used. Tire manufacturing involves everything from delicate rubber sheets to heavy tire molds, so one belt type rarely fits all. Matching belt design to process stage is key to achieving stable, safe, and long-term operation.
PVC Conveyor Belt – Polyester Woven Cotton Top
Ideal for medium-load operations. The cotton top gives excellent traction even when the surface is slightly oily. Polyester fibers inside maintain tension and reduce belt elongation. Perfect for calendering and component assembly.

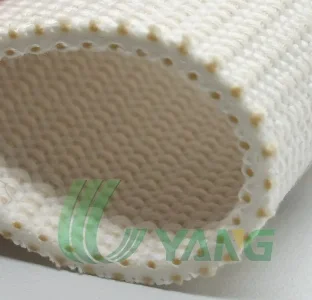

2.5mm Cotton Canvas PU Conveyor Belt
Smooth surface, flexible design. It runs quietly and reduces vibration. This belt type helps when moving semi-finished rubber strips that must stay perfectly flat before joining.
3.0mm Cotton Canvas PU Conveyor Belt
Designed for the heavy end of production — curing presses, final transfer zones, and pallet conveyors. The thick PU layer handles constant load cycles and mechanical stress, extending lifetime between replacements.
What Maintenance Practices Ensure Conveyor Longevity
Even the best belt can fail if it’s not properly maintained. Tire factories that follow a clear maintenance plan often double the service life of their conveyors and avoid unexpected stoppages.
Regular Inspection and Cleaning Schedule
It’s tempting to “set and forget” conveyor belts, but regular checks prevent costly breakdowns. Inspect for wear, edge fraying, or uneven tension every week. Remove rubber residue before it builds up.
Proper Tension and Alignment
Too much tension shortens belt life. Too little causes slippage. Keeping the right balance is crucial, especially for cotton canvas belts. Adjust alignment after major cleaning or seasonal temperature changes.
Use of Quality Accessories and Spare Parts
Cheap rollers and frames can undo the benefit of a good belt. Always use high-quality drums, guides, and tensioning units. UYANG BELTING provides matching accessories designed for their belts — that’s how you keep the system running smoothly year after year.
How Can UYANG BELTING Support Your Tire Factory’s Efficiency Goals
Behind every efficient production line is a reliable supplier. UYANG BELTING partners with tire manufacturers worldwide, helping them upgrade old systems and design new conveyor layouts that fit modern automation standards.
Customized Belt Solutions
UYANG BELTING doesn’t sell “one-size-fits-all” belts. Each plant has its own space limits, incline angles, and load types. Whether you need anti-slip texture, anti-static coating, or specific thickness, UYANG BELTING engineers can design it for you.
Proven Industry Expertise
With years of experience supplying belts to tire and rubber factories worldwide, UYANG BELTING understands the pain points — from curing temperature cycles to adhesive contamination. Their belts are tested under real industrial conditions, not just lab simulations.
Reliable After-Sales and Technical Assistance
UYANG BELTING’s support team offers installation guidance, joint training, and sample testing. They respond quickly to overseas clients, making it easier for factories to switch belts or adjust system layouts without long downtime.
Conclusion
A conveyor system is more than a piece of moving machinery — it’s the spine of your tire plant. When properly designed, it keeps material flowing like a well-tuned engine. The right belt material, layout planning, and maintenance routine can cut costs, extend equipment life, and raise output quality.
If your tire production line is ready for an upgrade, UYANG BELTING has the expertise and range of products to help you build a smarter, more reliable system.
FAQs
Q1: What type of conveyor belt is best for high-temperature zones in a tire plant?
A: PVC or PU composite belts with heat-resistant layers work best. UYANG BELTING’s Polyester Woven Cotton Top model is particularly suitable for hot calendering and curing areas.
Q2: How often should I replace a conveyor belt in a tire production line?
A: It depends on workload and environment. Typically every 2–3 years for high-use sections, but with regular maintenance, UYANG BELTING’s PU belts can last even longer.
Q3: Can I order customized belt dimensions from UYANG BELTING?
A: Yes. UYANG BELTING offers full customization — including thickness, surface texture, width, and joint type — to match your plant layout and process requirements.
