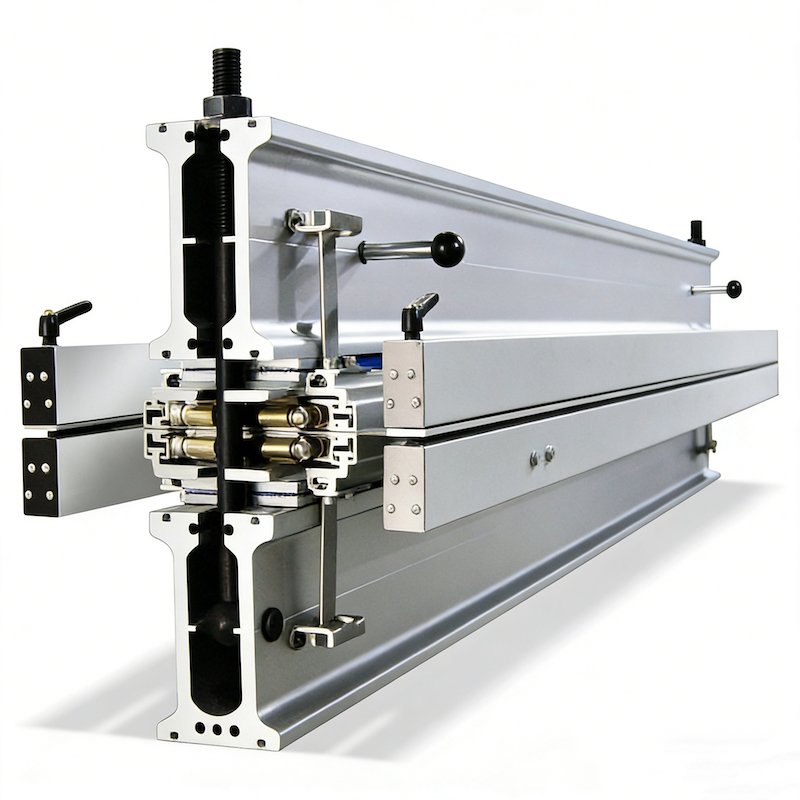

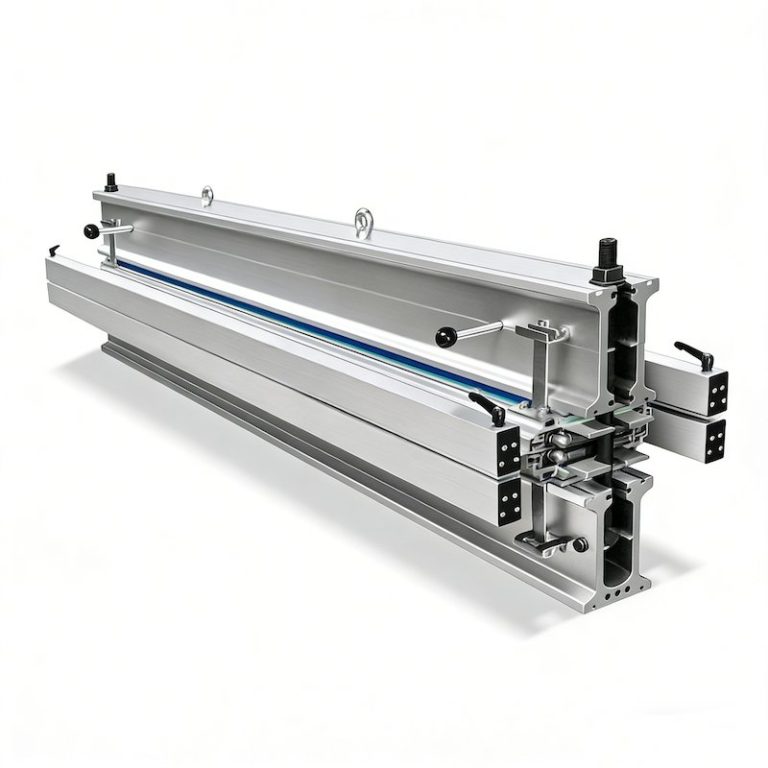

The UYANG High-Pressure Water-Cooling Splicing Press is a precision-engineered belt jointing system developed to meet the highest Market standards for conveyor belt splicing.
With a maximum working pressure up to 7 Bar, this press is especially suitable for PU Printing Blanket Belts , where joint flatness, pressure uniformity, and dimensional stability are critical to system performance.
The combination of high-pressure capability, controlled electric heating, and water-assisted cooling ensures extremely flat, stable, and repeatable belt joints, even for the most demanding precision applications.
The UYANG High-Pressure Water-Cooling Splicing Press is a precision-engineered belt jointing system developed to meet the highest Market standards for conveyor belt splicing.
With a maximum working pressure up to 7 Bar, this press is especially suitable for PU Printing Blanket Belts , where joint flatness, pressure uniformity, and dimensional stability are critical to system performance.
The combination of high-pressure capability, controlled electric heating, and water-assisted cooling ensures extremely flat, stable, and repeatable belt joints, even for the most demanding precision applications.
High-pressure system up to 7 Bar
Meets the strict requirements of European high-end customers
Water-cooling technology
Ensures controlled cooling and dimensional stability
Precision-aligned press structure
Guarantees excellent joint flatness and repeatability
Optimized for PU materials
Ideal for printing blanket belt jointing
On-site and workshop ready
Suitable for both production environments and installation sites
PU Printing Blanket Belts are used in applications where:
Surface flatness directly affects print quality
Any joint height deviation causes tracking or printing defects
Stable belt geometry is required after cooling
This splicing press is specifically designed to:
Deliver uniform pressure across the full joint width
Maintain parallelism during heating and cooling
Minimize deformation and shrinkage after vulcanization
PU Printing Blanket Belts
High-precision conveying systems
Printing, coating, and converting industries
Customers with strict joint quality requirements
| Model | UY-2000 | UY-2200 | UY-2400 | UY-2600 | UY-3000 | UY-3200 | UY-3400 | UY-3600 | UY-4000 |
| Effective length | 2000 mm | 2200 mm | 2400 mm | 2600 mm | 3000 mm | 3200 mm | 3400 mm | 3600 mm | 4000 mm |
| Effective heating width | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm | 180 mm |
| Minimum connecting length | 930 mm | 930 mm | 930 mm | 930 mm | 930 mm | 930 mm | 930 mm | 930 mm | 930 mm |
| Lower beam weight | 150 kg | 165 kg | 180 kg | 195 kg | 225 kg | 240 kg | 255 kg | 270 kg | 300 kg |
| Upper beam weight | 148 kg | 163 kg | 178 kg | 193 kg | 222 kg | 237 kg | 252 kg | 266 kg | 296 kg |
| Machine length | 2260 mm | 2460 mm | 2660 mm | 2860 mm | 3260 mm | 3460 mm | 3660 mm | 3860 mm | 4260 mm |
| Machine height | 700 mm | 700 mm | 700 mm | 700 mm | 700 mm | 700 mm | 700 mm | 700 mm | 700 mm |
| Machine width | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Maximum pressure | 7 Bar | 7 Bar | 7 Bar | 7 Bar | 7 Bar | 7 Bar | 7 Bar | 7 Bar | 7 Bar |
| Maximum temperature | 210 °C | 210 °C | 210 °C | 210 °C | 210 °C | 210 °C | 210 °C | 210 °C | 210 °C |
| Working voltage | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V | 380 V |
| Box size | 2700×500×750 mm | 2900×500×750 mm | 3100×500×750 mm | 3300×500×750 mm | 3700×500×750 mm | 3900×500×750 mm | 4100×500×750 mm | 4300×500×750 mm | 4700×500×750 mm |
| Packing weight | 428 kg | 464 kg | 502 kg | 542 kg | 613 kg | 650 kg | 687 kg | 723 kg | 798 kg |
| Power | 6.0 kW | 6.6 kW | 7.2 kW | 7.8 kW | 9.0 kW | 9.6 kW | 10.0 kW | 10.4 kW | 15.8 kW |
This comparison helps identify the right solution based on process tolerance and application requirements.
| Item | Standard Water-Cooling Press | High-Pressure Water-Cooling Press (7 Bar) |
| Max. working pressure | 2 Bar (typical) | Up to 7 Bar |
| Joint flatness control | Standard | Very high precision |
| Pressure uniformity | General industrial level | Precision-grade uniformity |
| Cooling stability | Water cooling | Water cooling with high-pressure stabilization |
| Suitable belt types | General PVC / PU conveyor belts | PU Printing Blanket & Guide Belts |
| Thickness tolerance | Normal industrial tolerance | Extremely tight tolerance |
| Risk of joint height deviation | Acceptable for most conveyors | Minimized for precision systems |
| Recommended production level | General fabrication & maintenance | High-end production & precision systems |
| Typical customer requirement | Cost-effective, versatile | Quality-driven, tolerance-critical |
Choose a Standard Water-Cooling Press if:
You work mainly with general PVC or PU conveyor belts
Minor joint height deviation is acceptable
The belt is used in material handling, logistics, or packaging
Cost efficiency is the primary consideration
Choose a High-Pressure (7 Bar) Water-Cooling Press if:
You produce or splice PU Printing Blanket Belts
Belt flatness directly affects printing or tracking accuracy
Your customers follow European or North American high-end standards
Joint repeatability and process control are critical
In printing and converting systems:
Even small joint thickness differences can cause belt deviation
Insufficient pressure may result in micro voids or uneven bonding
High pressure ensures complete material fusion and surface continuity
A 7 Bar splicing system provides the compression force required to:
Maintain parallelism during heating
Lock belt geometry during cooling
Deliver consistently flat joints across the entire belt width
From an engineering standpoint, the difference is not just pressure value, but process stability:
Standard press → “Joint is acceptable”
High-pressure press → “Joint is controlled and repeatable”
For precision belts, this distinction defines final system performance.
