PVC Conveyor Beltย is a high-performance industrial belt with excellent wear resistance, anti-slip properties, and chemical resistance, meeting diverse industrial needs. Widely used in woodworking, airports, food, logistics, agriculture, and manufacturing, it supports customization inย thickness, pattern, structure, and width.
PVC Conveyor Beltย is a high-performance industrial belt with excellent wear resistance, anti-slip properties, and chemical resistance, meeting diverse industrial needs. Widely used in woodworking, airports, food, logistics, agriculture, and manufacturing, it supports customization inย thickness, pattern, structure, and width.

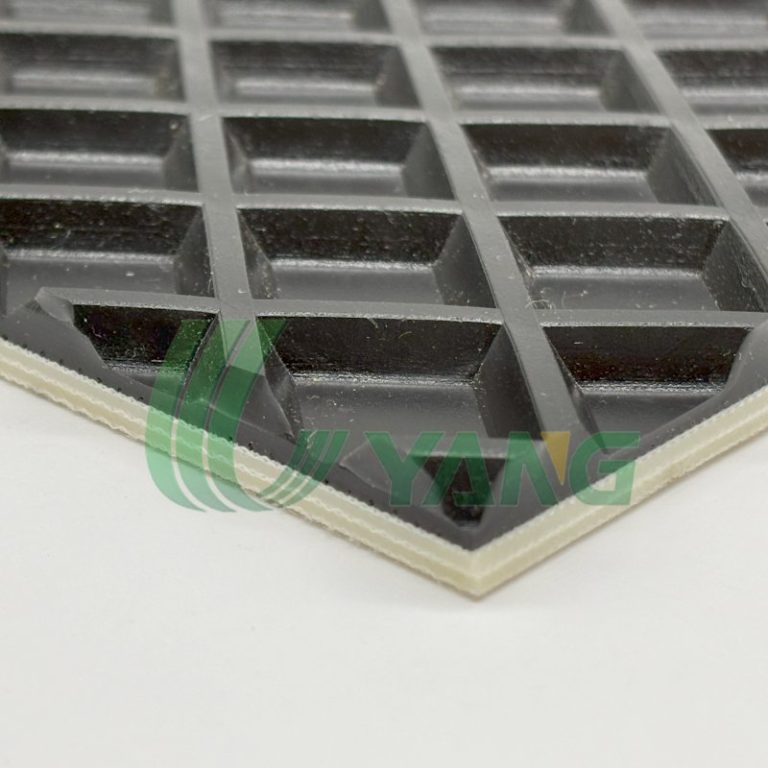

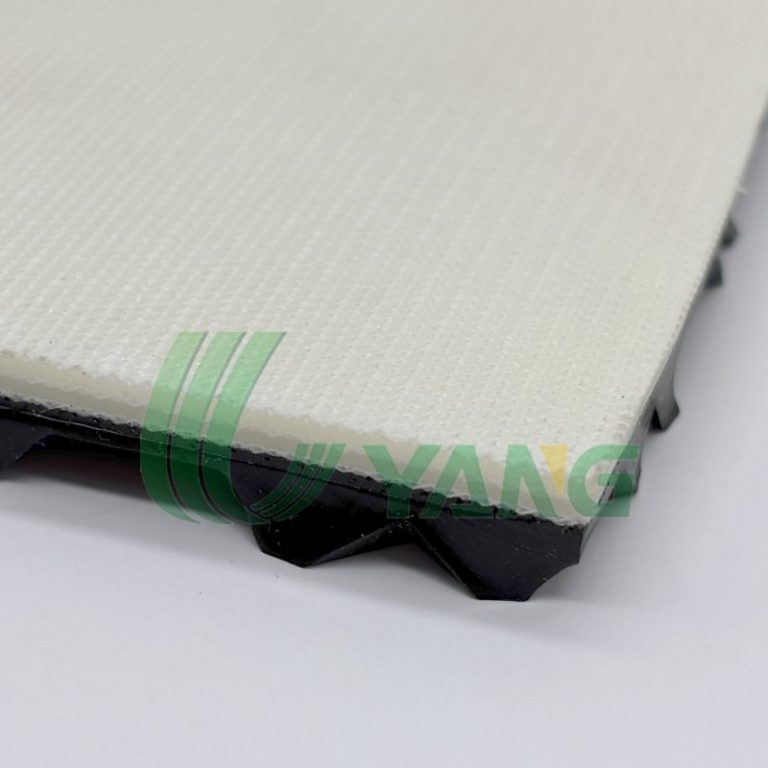

The Large Diamond Pattern PVC Conveyor Belt, lasoย called ” Suqare” pattern, “Checker” patten,ย is designed for the woodworking industry,ย offering excellent durability and grip. Theย large-diamond-pattern surfaceย provides superior friction, preventing wood from slipping during transportation. With aย 9.0mm thicknessย and high wear resistance, it easily handles heavy loads, ensuring smooth and reliable wood processing.
| Top cover Material | PVC |
| Top cover Thickness | ย 6.0 mm |
| Top cover Surface Pattern | Square |
| Top cover Color | Black |

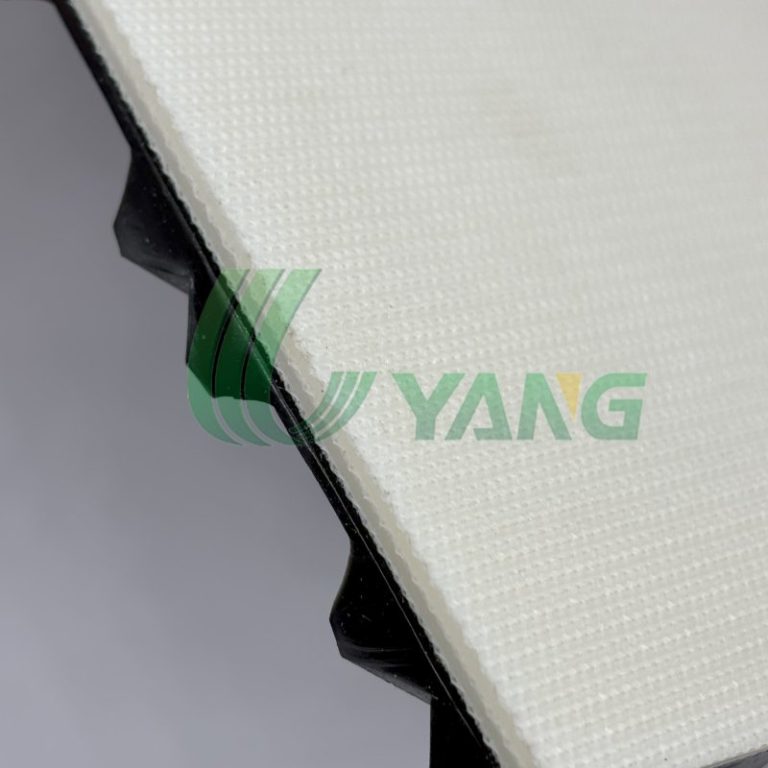

| Bottom Cover Material | Polyester fabric |
| Bottom Cover Thickness | 0.5mm |
| Surface finish | โโ- |
| Color | โโ |
Technical data:ย
| Total Thickness | 9.0mm |
| Belt Weight: | 8.4ย KG/Mยฒ |
| Fabric Plies | 3 plies |
| HARDNESS ยฐShoreA : | 60 degree |
| 1% ELONGATION STRENGTH: | 22 N/MM |
| ROLLER DIAMETER MIN: | 120MM |
| WIDTH MAX: | 3400MM |
| TEMPERATURE: | -10/+80 |
Belt Application:

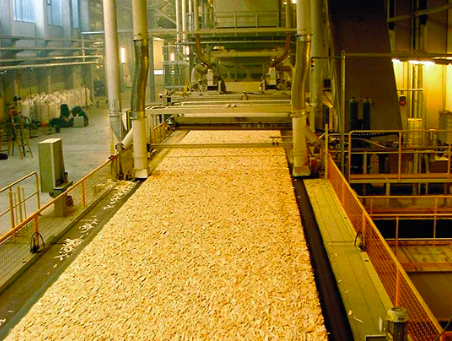

Wood Processing;
Inclined conveying;
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
