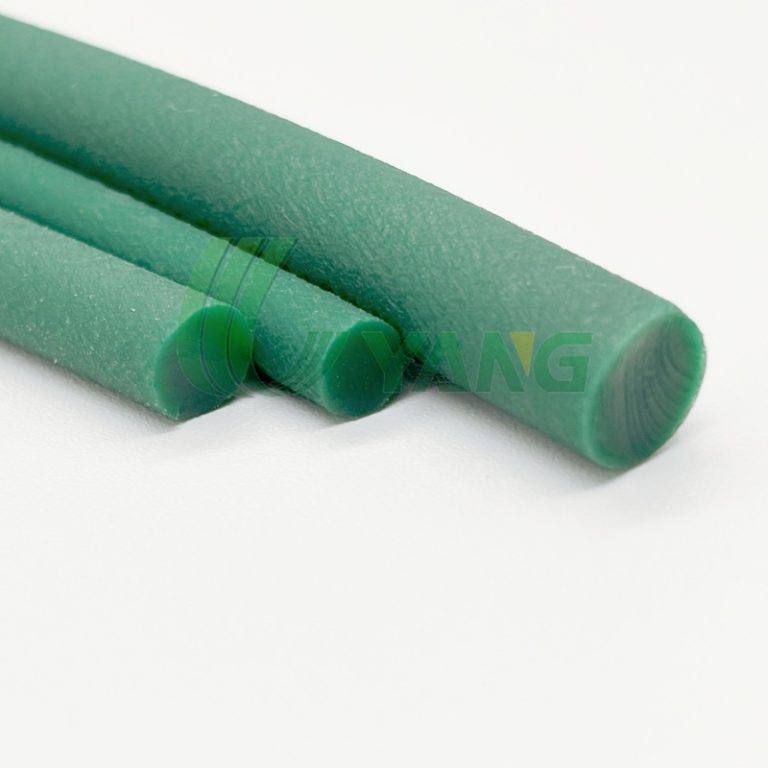

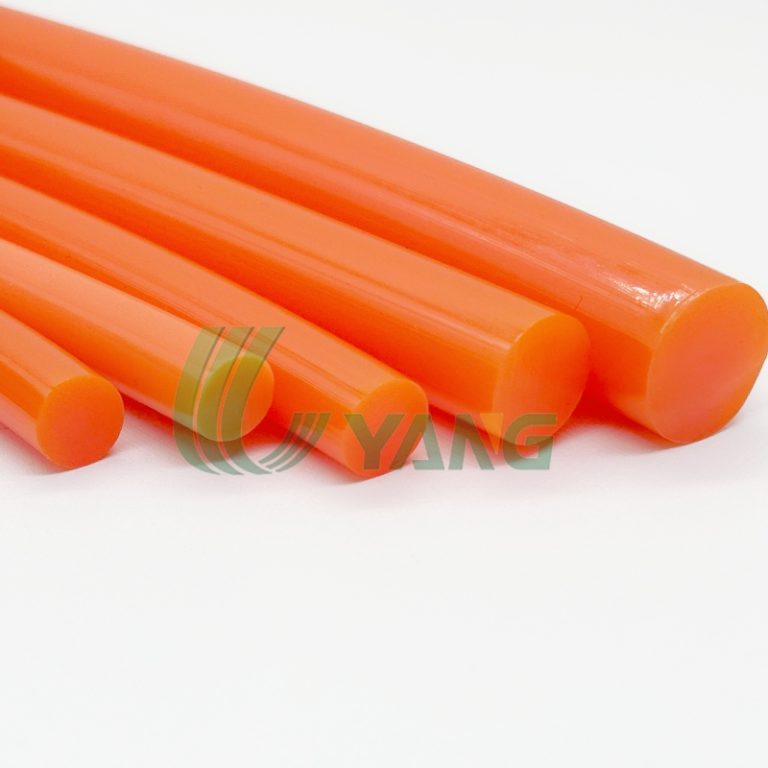

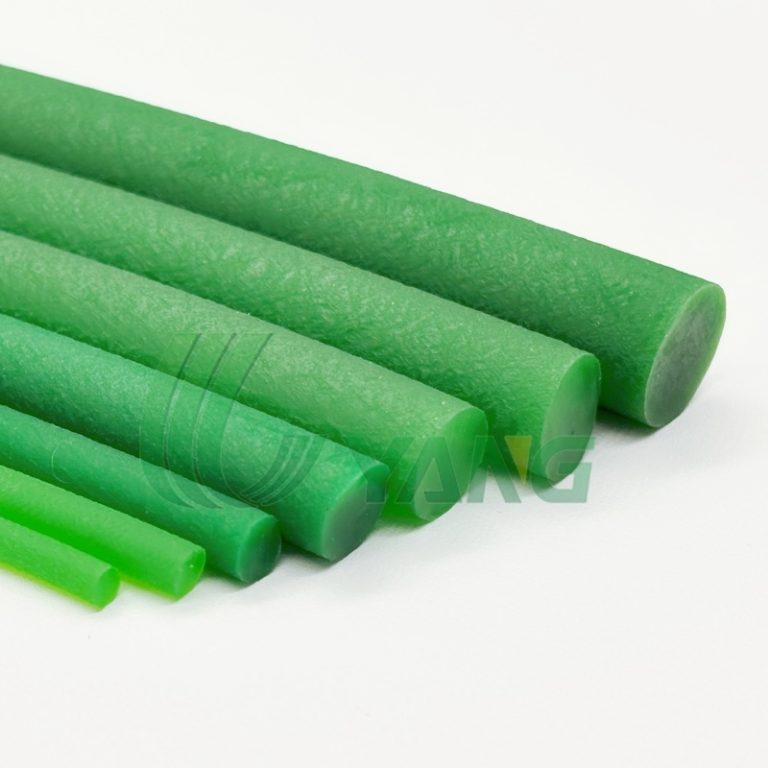

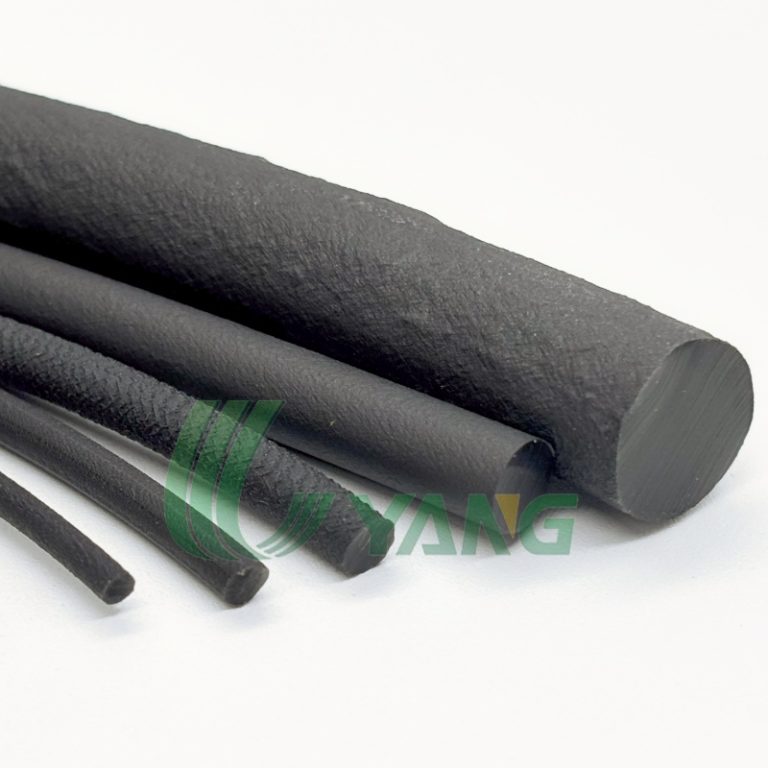

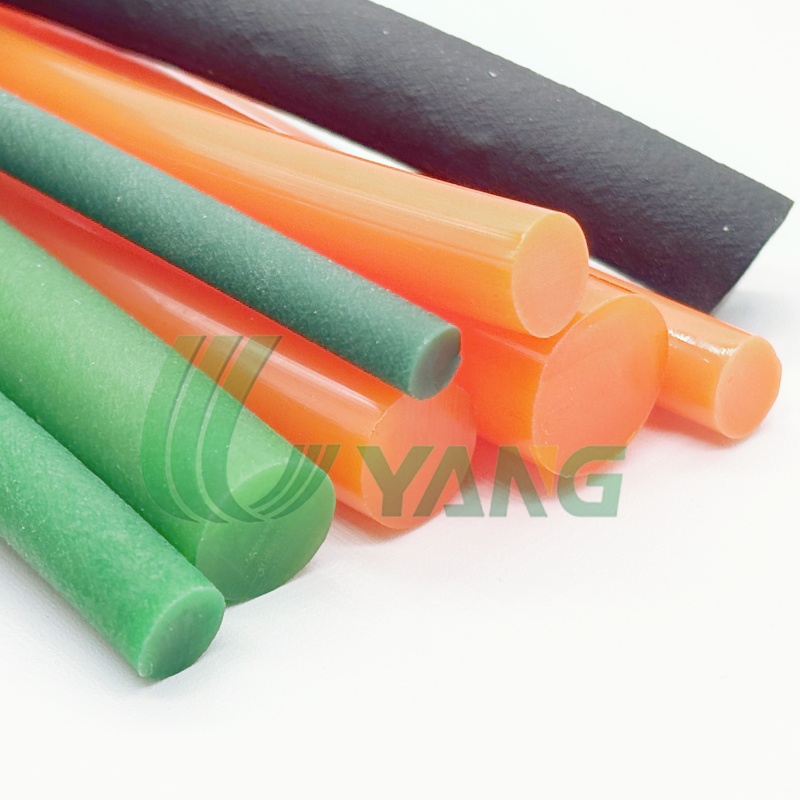

UYANG offers high-performance polyurethane (PU) round belts designed for precision power transmission and conveying applications. Available in various diameters (2-20mm) and hardness grades (Shore A 70-98), our belts feature excellent wear resistance, flexibility, and long service life.
UYANG offers high-performance polyurethane (PU) round belts designed for precision power transmission and conveying applications. Available in various diameters (2-20mm) and hardness grades (Shore A 70-98), our belts feature excellent wear resistance, flexibility, and long service life.
Key Features:
Superior durability with 3x longer lifespan than rubber belts
Minimal elongation (<1.5%) for consistent performance
Thermowelding is compatible with quick on-site splicing
Food-grade options available (FDA compliant)
Ideal for packaging machines, conveyor systems, and automated equipment requiring reliable, low-maintenance power transmission. Custom solutions are available for special requirements.
UYANG offers a full range of PU round belts, expertly engineered for diverse transmission and conveying applications.
Key Features
• Available in various hardness levels (Shore A 70–95) and diameters (Φ2–20mm)
• FDA-compliant for hygienic use in food and pharmaceutical industries
• Optional formulations: anti-static, oil-resistant, and high-temperature resistant (-40°C to +120°C)
Engineering Advantages
✓ On-site fast welding supported with compatible welding tools
✓ Low-noise, high-wear resistance design extends service life by 50%
✓ Excellent dynamic flexibility with a minimum bend radius of 5× belt diameter
Typical Applications
▶ Power transmission in packaging machinery
▶ Conveying lines in food processing
▶ Precision positioning in automation equipment
▶ Logistics and sorting conveyor systems
Technical selection support and customized solutions available. Contact us for product samples and testing reports.
| Diameter | Least Radius of Gyration | Stretching rate | Maximum tensile rate | length per roll | |||||
| DIA (mm) | Inches | mm | % | kg | Lbs | M/Roll | |||
| 2mm | 0.79 | 20 | 1.5 – 3 % | 0.3 | 0.7 | 400 | |||
| 2.5mm | 0.87 | 22 | 1.5 – 3 % | 0.4 | 0.9 | 400 | |||
| 3mm | 0.98 | 25 | 1.5 – 3 % | 0.7 | 1.6 | 400 | |||
| 3.5mm | 1.18 | 30 | 1.5 – 3 % | 0.95 | 2.1 | 400 | |||
| 4mm | 1.38 | 35 | 1.5 – 3 % | 1.2 | 2.7 | 200 | |||
| 5mm | 1.57 | 40 | 1.5 – 3 % | 2.0 | 4.3 | 100 | |||
| 6mm | 1.97 | 50 | 1.5 – 3 % | 3.2 | 7.0 | 100 | |||
| 7mm | 2.17 | 55 | 1.5 – 3 % | 4.1 | 9.0 | 100 | |||
| 8mm | 2.56 | 65 | 1.5 – 3 % | 5.0 | 11.0 | 100 | |||
| 9mm | 2.95 | 75 | 1.5 – 3 % | 6.8 | 15.0 | 50 | |||
| 10mm | 2.95 | 75 | 1.5 – 3 % | 7.7 | 17.0 | 50 | |||
| 12mm | 3.94 | 100 | 1.5 – 3 % | 12.2 | 27.0 | 30 | |||
| 15mm | 4.72 | 120 | 1.5 – 3 % | 17.7 | 39.0 | 30 | |||
| 18mm | 5.71 | 145 | 1.5 – 3 % | 25.4 | 56.0 | 30 | |||
| 20mm | 6.30 | 160 | 1.5 – 3 % | 31.3 | 69.0 | 30 | |||
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
