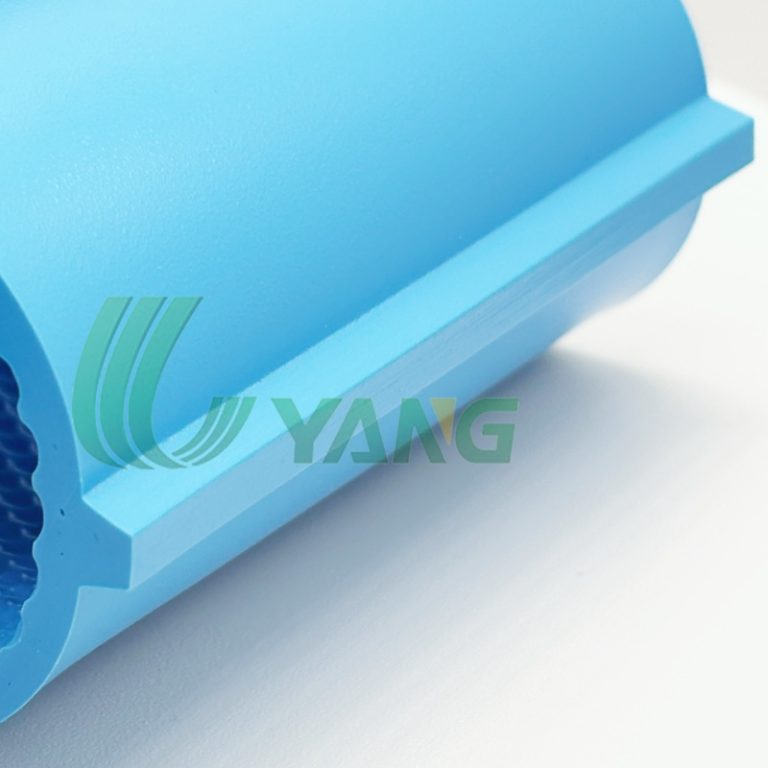

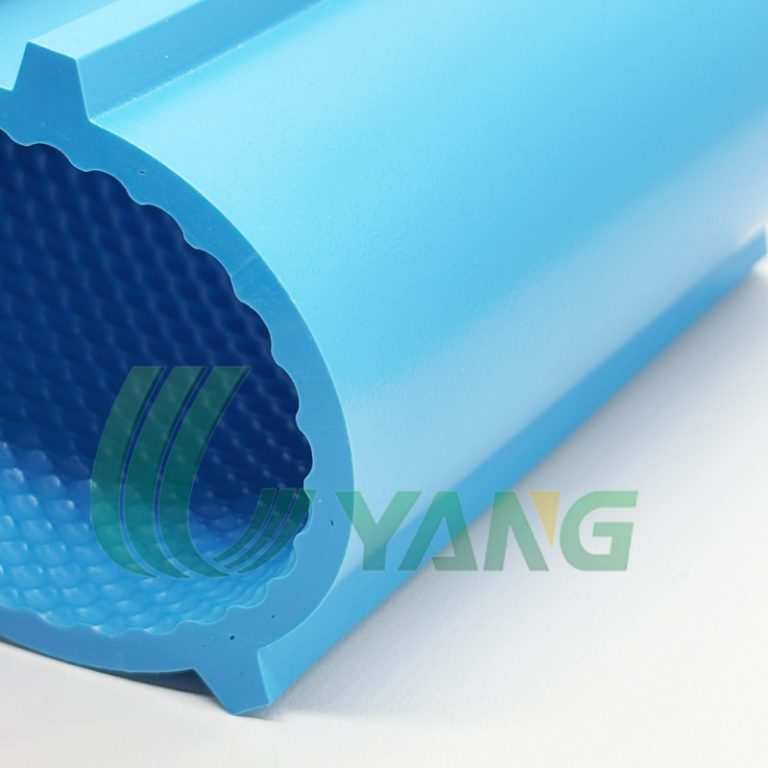

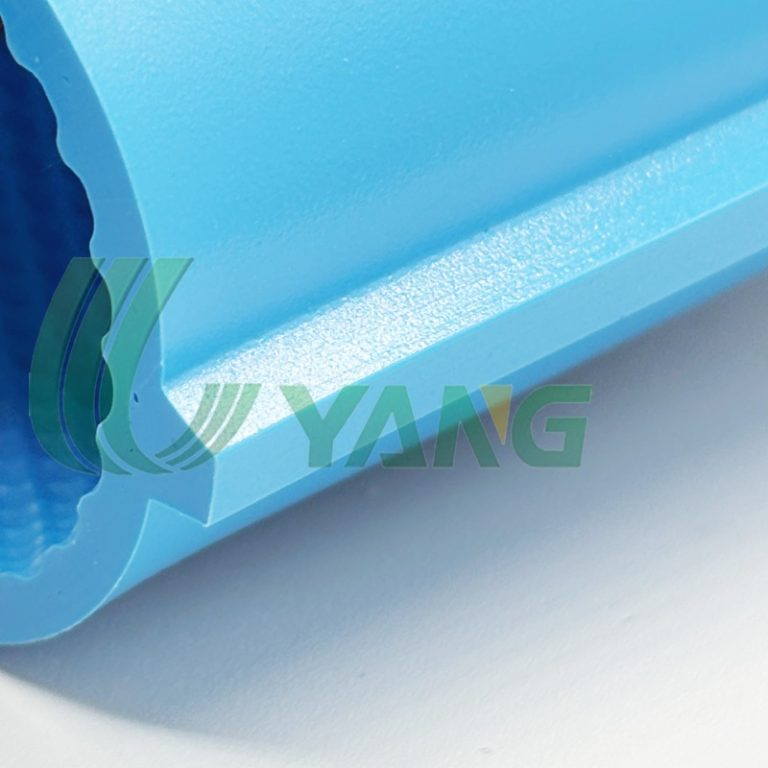

UYANG BELTING designs customized Positive Drive Homogeneous Belts with superior cleanability for high-hygiene food processing applications – including raw meat, fresh produce, frozen and fried foods. Available in 25.4mm, 39.7mm and 50.4mm pitch options with multiple surface finishes (smooth, golf, horizontal bar, glossy or matte), our belts can be tailored in thickness, width and length, and are complemented by a full range of compatible accessories including sidewalls, guides and cleats for complete conveying solutions.
UYANG BELTING designs customized Positive Drive Homogeneous Belts with superior cleanability for high-hygiene food processing applications – including raw meat, fresh produce, frozen and fried foods. Available in 25.4mm, 39.7mm and 50.4mm pitch options with multiple surface finishes (smooth, golf, horizontal bar, glossy or matte), our belts can be tailored in thickness, width and length, and are complemented by a full range of compatible accessories including sidewalls, guides and cleats for complete conveying solutions.
UYANG BELTING’s hygienic conveyor belts deliver superior performance in demanding food processing environments:

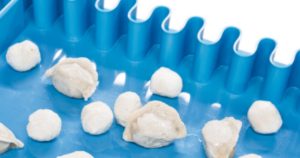

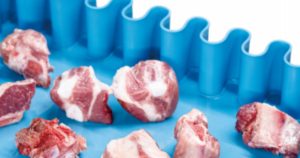

Engineered for: Meat processing, poultry plants, and wet food applications where hygiene is critical.
“UYANG’s antimicrobial homogeneous conveyor belts actively prevent bacterial growth and eliminate contamination risks, ensuring the safest possible food handling environment throughout your production process.”
Code |
color |
Material |
Hardness |
Antibacterial class |
Thickness(mm) |
Depth of tooth(mm) |
Maximumload(kg/m2) |
Working temperature(°C) |

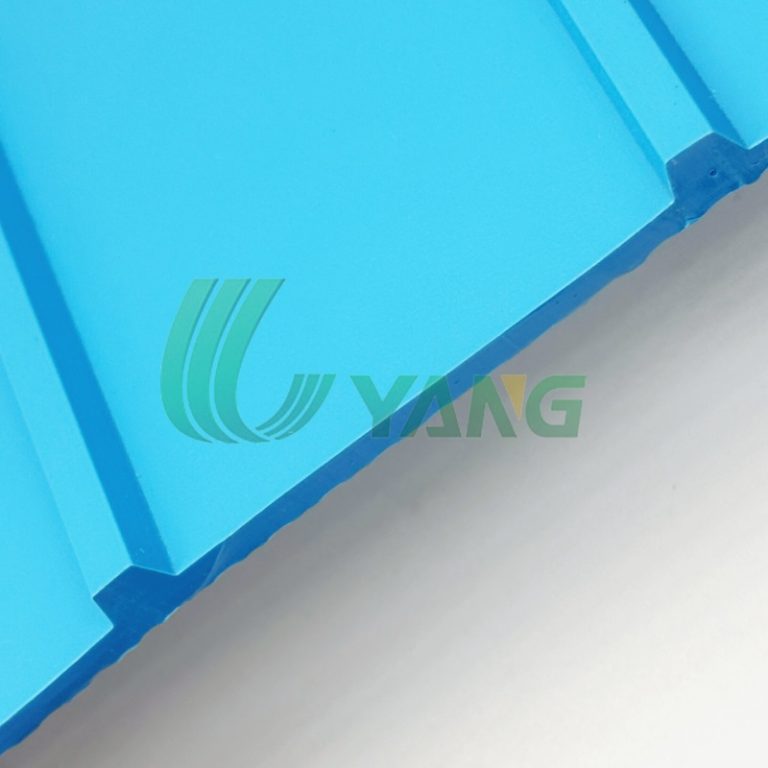

Surface design |

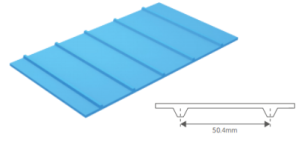

Pitch(mm) |
Minimumroll diameter(mm) |
| S50-U30 | Blue | TPU | 50D | Grade one | 3.0 | 4 | 110 | -5/+80 | glossy | 50.4 | 126 |
| S50-W30 | White | TPU | 50D | Grade one | 3.0 | 4 | 110 | -5/+80 | glossy | 50.4 | 126 |
| S50-U30Y | Blue | TPU | 90A | Grade one | 3.0 | 4 | 220 | -5/+80 | glossy | 50.4 | 126 |
| S50-W30Y | White | TPU | 90A | Grade one | 3.0 | 4 | 220 | -5/+80 | glossy | 50.4 | 126 |
| S50-U46Y | Blue | TPU | 90A | Grade one | 4.6 | 4 | 240 | -5/+80 | glossy | 50.4 | 126 |

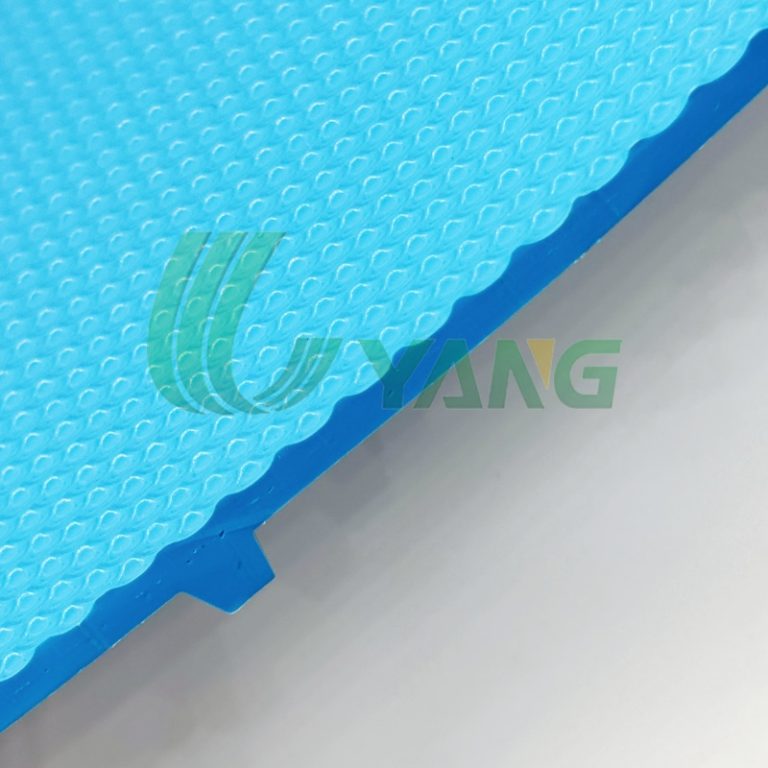

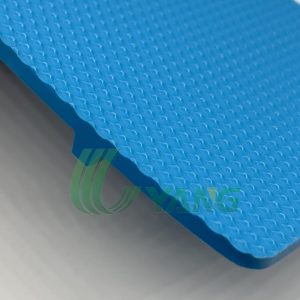

| S50-U30Y/G | Blue | TPU | 90A | Grade one | 3.0 | 4 | 220 | -5/+80 | golf | 50.4 | 126 |
| H50-DU30 | Dark Blue | TPU | 50D | Grade Zero | 3.0 | 4 | 110 | -20/+60 | glossy | 50.4 | 126 |
| H50-MW30 | Milk White | TPU | 50D | Grade Zero | 3.0 | 4 | 110 | -20/+60 | glossy | 50.4 | 126 |
| H50-DU30Y | Dark Blue | TPU | 90A | Grade Zero | 3.0 | 4 | 220 | -20/+60 | glossy | 50.4 | 126 |
| H50-MW30Y | Milk White | TPU | 90A | Grade Zero | 3.0 | 4 | 220 | -20/+60 | glossy | 50.4 | 126 |
| Category | Model | Number | Outside
diameter (mm) |
thickness
(mm) |
Material | Bore
Shape |
Bore Specification | Schematic |

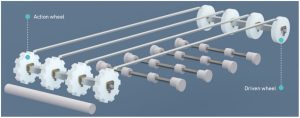

| Action
wheel |
C50-8E | 8 | 126.4 | 30 | POM/PA/PE | Square hole | 40mm |  |
| Circular hole | 25-35mm | |||||||
| Action
wheel |
C50-10E | 10 | 158 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm | |||||||
| Action
wheel |
C50-12E | 12 | 189.6 | 30 | POM/PA/PE | Square hole | 40mm | |
| Circular hole | 25-35mm |
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
