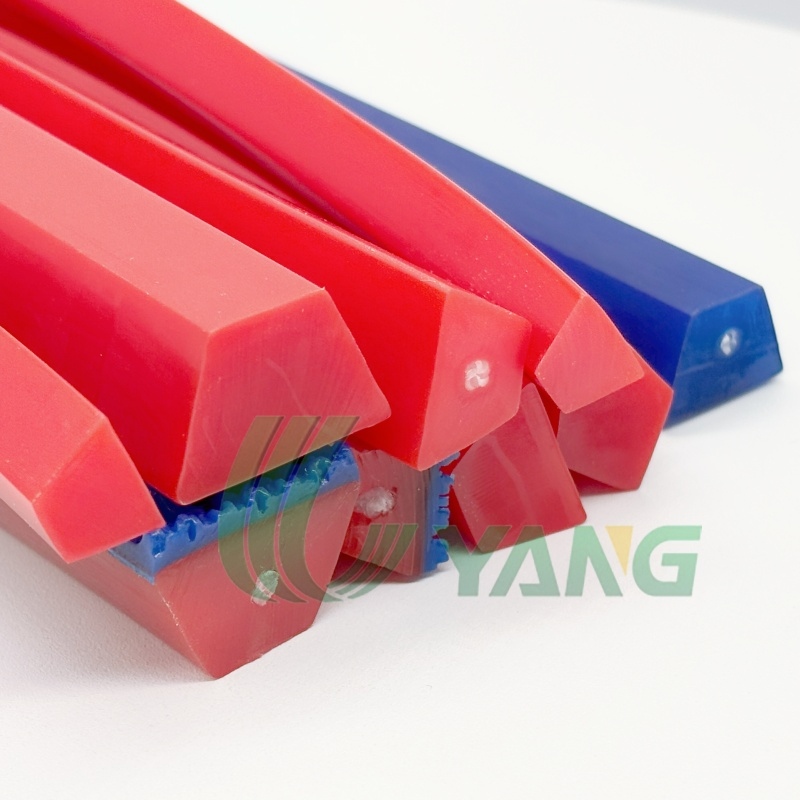

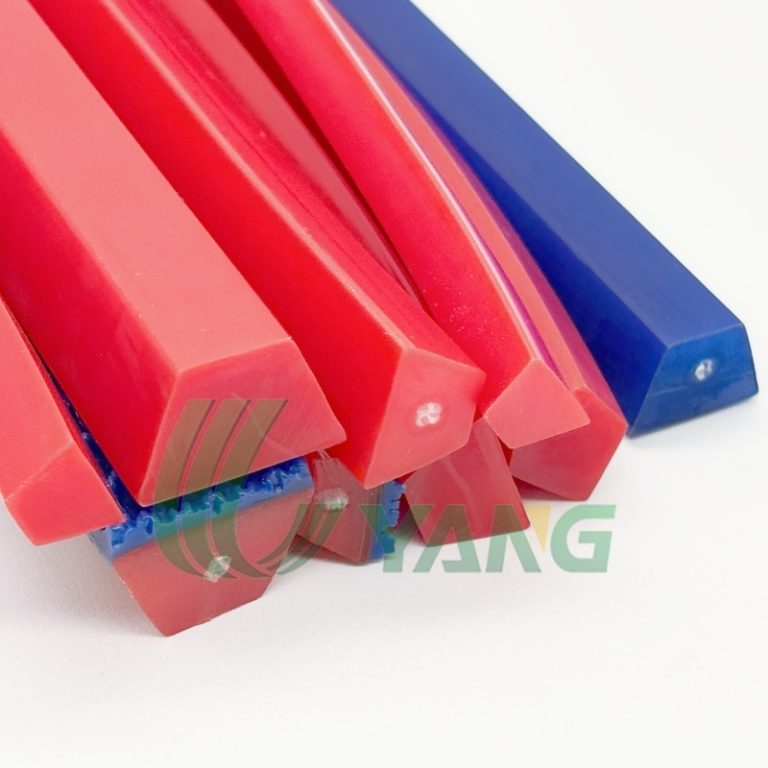

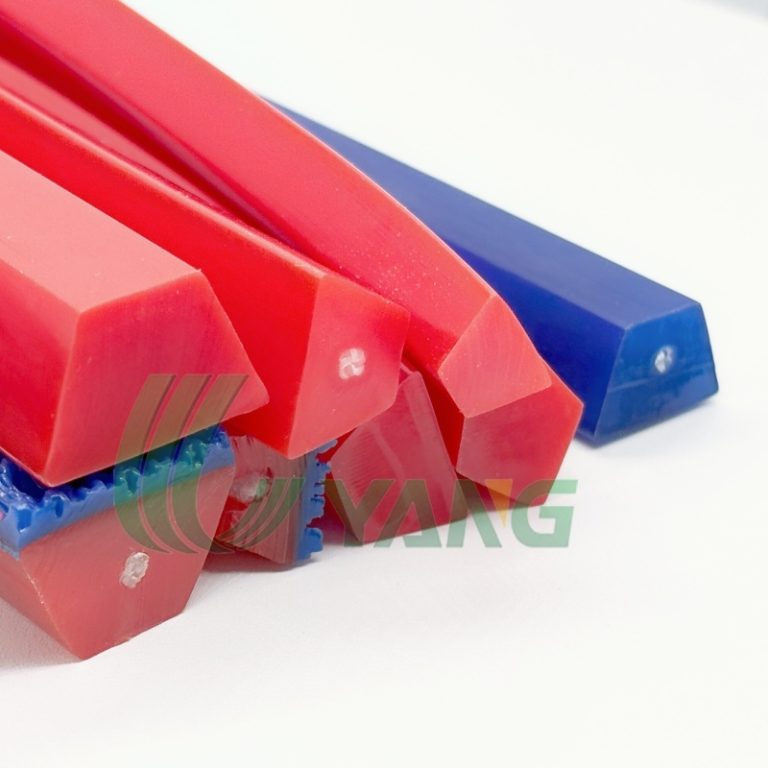

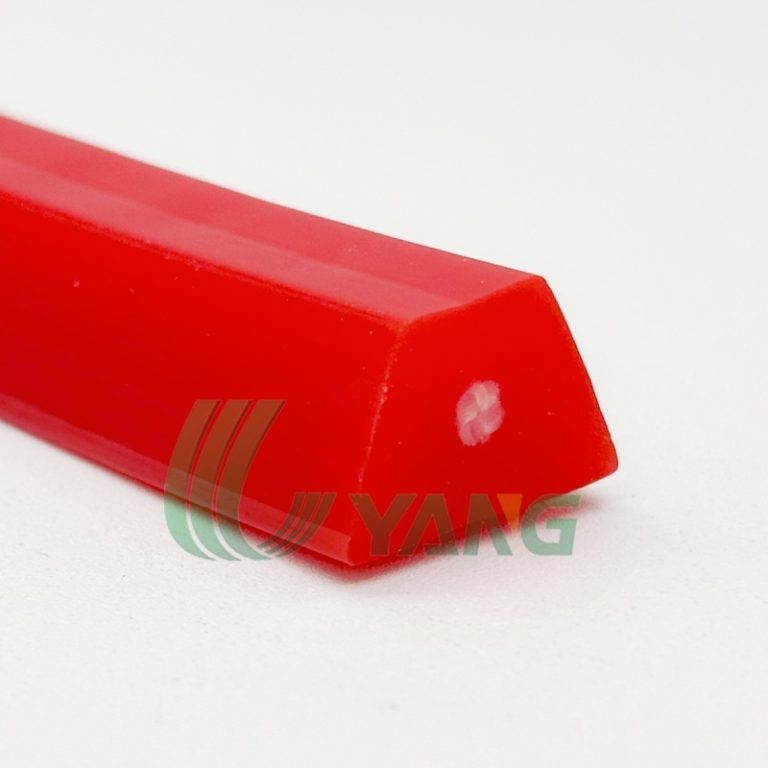

UYANG’s reinforced V-belts feature high-strength aramid fiber cores that minimize stretching (<0.3% elongation) and maintain stable power transmission. The advanced reinforcement reduces installation tension by 40% while supporting heavy loads, ensuring reliable performance in demanding industrial applications.
UYANG’s reinforced V-belts feature high-strength aramid fiber cores that minimize stretching (<0.3% elongation) and maintain stable power transmission. The advanced reinforcement reduces installation tension by 40% while supporting heavy loads, ensuring reliable performance in demanding industrial applications.
Key Features:
50% higher load capacity
3-5x extended service life
Superior heat resistance (-40°C to +120°C) and abrasion
Available in food-grade, oil-resistant, and anti-static variants for specialized applications.
Product Construction with Core Reinforcement Layer:
Military-grade aramid fibers (Kevlar type) as a tensile carrier
Special weaving process achieves 2000N/mm² tensile strength
Innovative double-helix winding structure eliminates operational torque
Performance Advantages:
✓ Ultra-low stretch: Operational elongation <0.3%, exceeding industry standards
✓ Extended lifespan: 3- 5x longer service life than conventional V-belts
✓ Heavy-duty capacity: 50% higher load rating than standard belts
✓ Precision transmission: Over 98% efficiency guaranteed
Technical Specifications:
Temperature range: -40℃ to +120℃ (special models)
Minimum pulley diameter: 60% of standard requirements
Fatigue resistance: Passed 2 million bending cycles
Special Application Designs:
• Food-grade: White TPU coating + detectable metal core
• Anti-static: Carbon fiber composite core (surface resistance 10⁶Ω)
• Oil-resistant: Special PU compound + anti-permeation layer
• Mining version: Flame-retardant coating + steel detection core
Installation Benefits:
▶ 40% reduced pre-tension for easier installation
▶ Unique wear indicator line for visual monitoring
▶ Sectional replacement capability cuts maintenance costs by 60%
Technical Data:
| Dimensions | Cross section | Approx. weight | Standard roll | Recommended min. pulley ∅ ⌀ | Fmax/belt (standard) | Fmax/belt (overlap) |
|---|---|---|---|---|---|---|
| mm | cm2 | kg/100m | m | mm | kg | kg |
| 8×5 (M) | 0,32 | 4 | 30 | 50 | 10,3 | 21,6 |
| 10×6 (Z) | 0,48 | 6.0 | 30 | 60 | 15,4 | 32,4 |
| 13×8 (A) | 0,82 | 10 | 30 | 85 | 25,9 | 54,5 |
| 13×8 (A) | 0,82 | 10 | 50 | 85 | 25,9 | 54,5 |
| 17×11 (B) | 1,46 | 18 | 30 | 110 | 46,9 | 98,6 |
| 17×11 (B) | 1,46 | 18 | 100 | 110 | 46,9 | 98,6 |
| 22×14 (C) | 2,4 | 29 | 30 | 150 | 77 | 150 |
| 32×20 (D) | 5 | 62 | 30 | 220 | 154 | n/a |
Typical Applications:
Heavy industry: Mining equipment, steel plant conveyors
Automotive: Engine assembly lines, test benches
Food processing: High-temperature sterilization lines
Logistics: High-speed sorting systems
Our Services:
• Free technical selection support
• 48-hour sample delivery
• On-site installation guidance
• Customized solutions
(Detailed test reports and industry certifications available upon request)
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
