Reliable, fast, and precise — our Sheet-Base Belt Splicing Machine is engineered to create strong, durable joints for sheet-based (laminated/fabric-backed) conveyor belts. Ideal for manufacturers and service shops, it delivers consistent splice strength and smooth transitions so belts run longer with less downtime.
Reliable, fast, and precise — our Sheet-Base Belt Splicing Machine is engineered to create strong, durable joints for sheet-based (laminated/fabric-backed) conveyor belts. Ideal for manufacturers and service shops, it delivers consistent splice strength and smooth transitions so belts run longer with less downtime.
Durable Splices
Fast Changeover
Precise Alignment
Multi-Method Splicing
Field-Ready
| Item | Produto | Tipo | Photo | Descrição | Package |
| ADVANTAGE: Exquisitely crafted, featuring a new embedded heating element, it provides even heating and remains undistorted under high pressure and temperature. It is also portable and easy to carry. | |||||

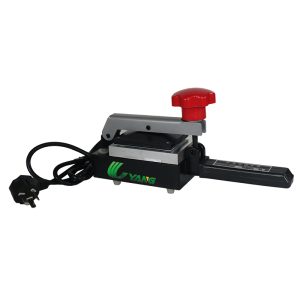

| 1 | Transmission belt Splice Press | UY-68 |  |
Transmission belt Splice press Performance Parameters: 1. Single-sided heating; 2. Screw pressure; 3. Effective Heating Area: 60mm*80mm; 4. Minimum Jointing length: 180mm; 5. Adjustable Temperature Control, 6.Portable and easy to carry; 7.Application: Suitable to be used for jointing the spindle tape and thin chip baseband |
NW: 1.4kgs; GW:1.7kgs; Package: 290*70*110mm |

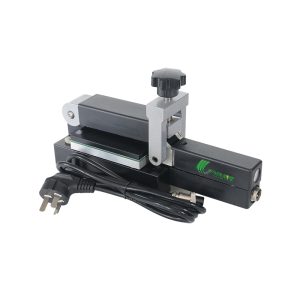

| 2 | Transmission belt Splice Press | UY-68E |  |
Transmission belt Splice press Performance Parameters: 1. Voltage:220V; 1. Single-sided heating; 2. Screw pressure; 3. Effective Heating Area: 80mm*100mm; 4. Minimum Jointing length: 200mm; 5. Adjustable Temperature Control, 6.Portable and easy to carry; 7.Application: Suitable to be used for jointing the spindle tape and thin chip baseband |
NW: 2.0kgs; GW:2.5kgs; Package: 450*80*110mm |
| 3 | Transmission belt Splice Press | UY-1015 |  |
Transmission belt Splice press Performance Parameters: 1. Voltage : 220V 2. Single-sided heating; 3. Screw pressure; 4. Effective Heating Area: 100mm*150mm; 5. Minimum Jointing length: 260mm; 6. Adjustable Temperature Control, 7.Portable and easy to carry; 8.Application: Suitable to be used for jointing Slightly thin chip baseband |
NW: 5.1kgs; GW:5.8kgs; Package: 390*150*160mm |

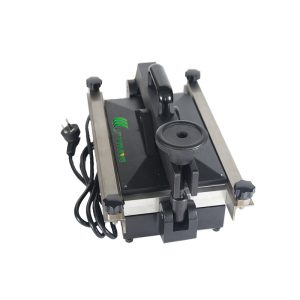

| 4 | Transmission belt Splice Press | UY-1625 |  |
Transmission belt Splice press Performance Parameters: 1. Voltage : 220V 2. Single-sided heating; 3. Screw pressure; 4. Effective Heating Area: 160mm*250mm; 5. Minimum Jointing length: 540mm; 6. Adjustable Temperature Control, 7.Portable and easy to carry; 8.Application:Suitable to be used for jointing Normal type chip baseband |
NW: 14.5kgs; GW:20kgs; Package: 450*260*300mm |

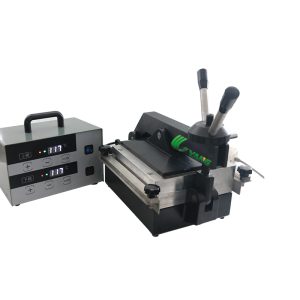

| 5 | chip base band Splice Press | UY-2020 |  |
Flat belt Splice press Performance Parameters: 1. Voltage : 220V 2. double-sided heating; 3. Screw pressure; 4. Effective Heating Area: 200mm*200mm; 5. Minimum Jointing length: 480mm; 6. Double-sided temperature control, adjustable temperature; 7.Cooling System: Air cooling 8.Application: Suitable to be used for jointing all type of chip baseband |
NW: 24kgs; GW:35kgs; Package: 450*350*510mm |

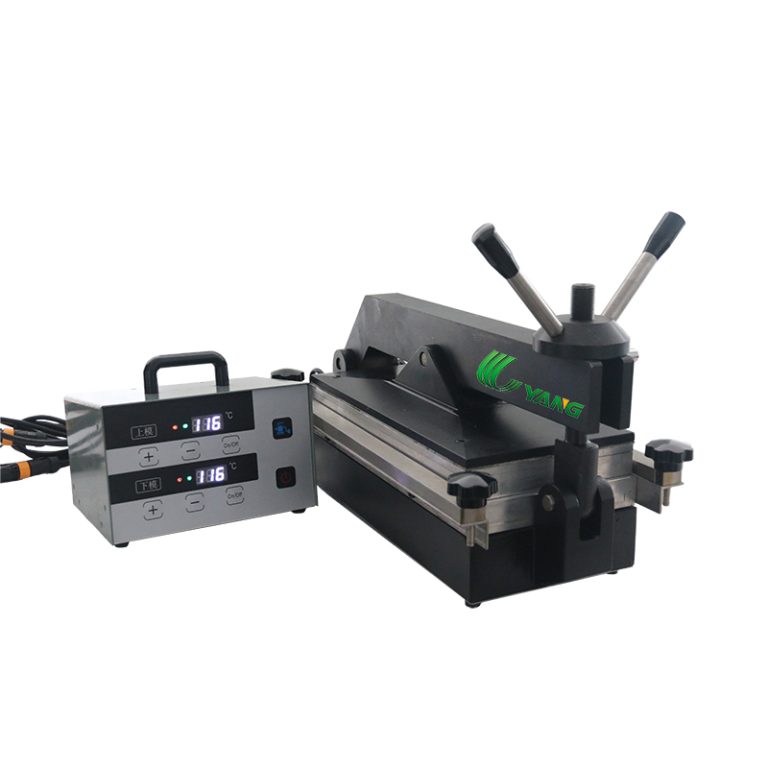

| 6 | Transmission belt Splice Press | UY-2040 |  |
Transmission belt Splice press Performance Parameters: 1. Voltage : 220V 2. double-sided heating; 3. Screw pressure; 4. Effective Heating Area: 200mm*400mm; 5. Minimum Jointing length: 600mm; 6. Double-sided temperature control, adjustable temperature; 7.Cooling System: Air cooling 8.Application: Suitable to be used for jointing all type of chip baseband |
NW: 66kgs; GW:77kgs; Package: 640*360*570mm |
| Advantage: Good program control, minimal temperature deviation, LCD screen display of data, adjustable temperature and constant temperature duration, easy operation, and portable. | |||||

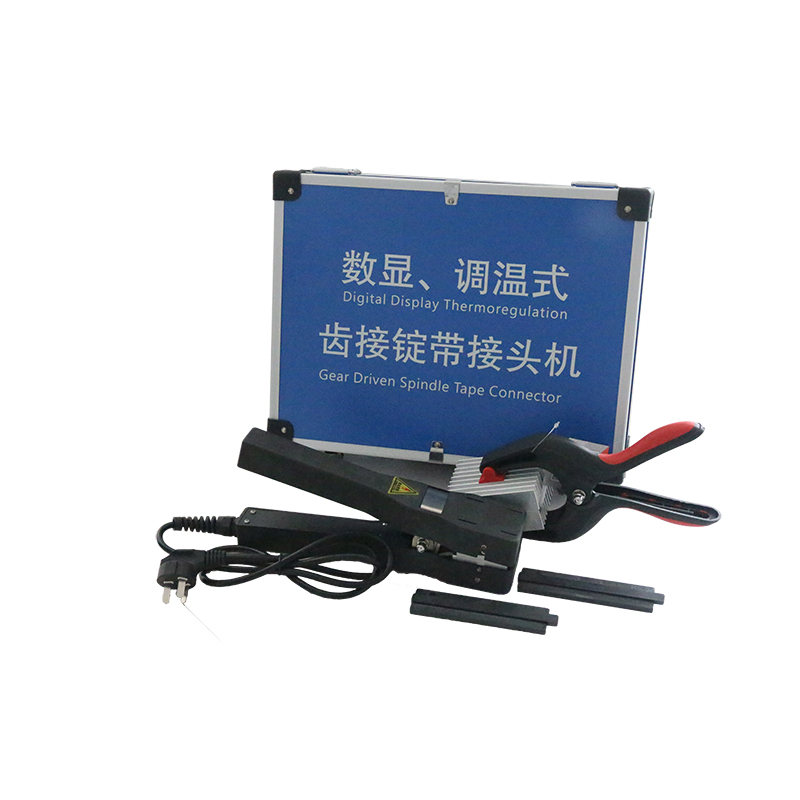

| 7 | Transmission belt Splice belt | UY-55 |  |
Transmission belt Splice belt Performance Parameters: 1. Voltage : 220V 2. double-sided heating; 3. Effective Heating Area: 50mm*50mm; 5. Minimum Jointing length: 200mm; 6. Working Temperature and time could be adjusted through control box; 7.Cooling System: Cooling Clamp 8.Application: Suitable to be used for jointing spindle tape with finger puncher |
NW: 1.6kgs; GW:3.3kgs; Package: 390*130*320mm |

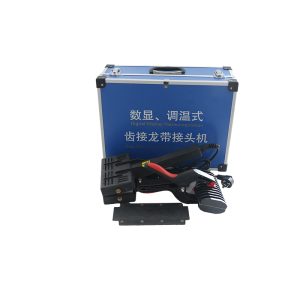

| 7 | Transmission belt Splice belt | UY-816 |  |
Transmission belt Splice belt Performance Parameters: 1. Voltage : 220V 2. double-sided heating; 3. Effective Heating Area: 80mm*160mm; 5. Minimum Jointing length: 350mm; 6. Working Temperature and time could be adjusted through control box; 7.Cooling System: Cooling Clamp 8.Application: Suitable to be used for jointing Tangential Belts and all type of TC transmission belt and with finger puncher |
NW: 3.1kgs; GW:5.6kgs; Package: 450*180*360mm |

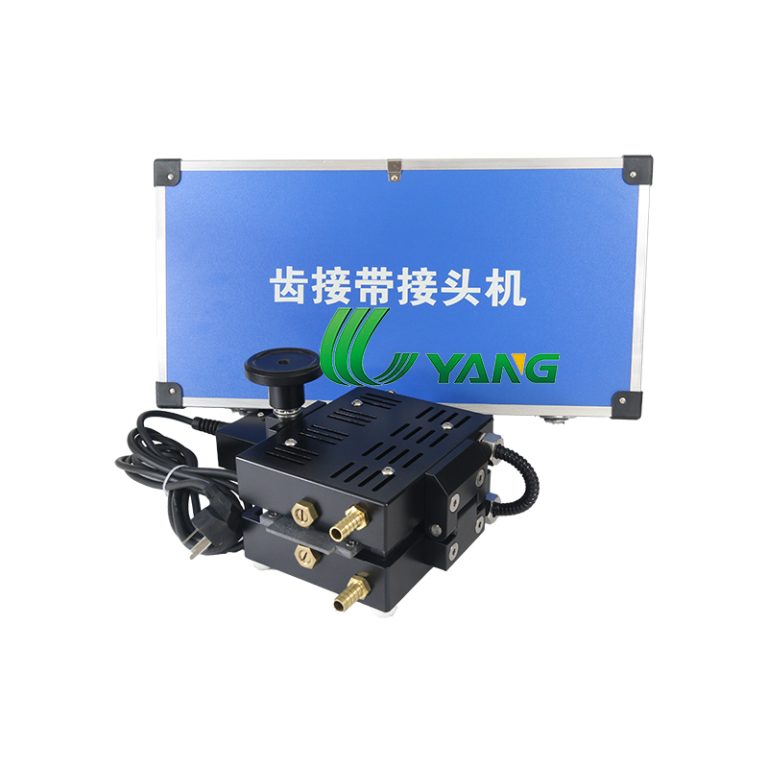

| 7 | Transmission belt Splice belt | UY-1218 |  |
Transmission belt Splice belt Performance Parameters: 1. Voltage : 220V 2. double-sided heating; 3. Effective Heating Area: 120mm*180mm; 5. Minimum Jointing length: 500mm; 6. Working Temperature and time could be adjusted through control box; 7.Cooling System: air cooling 8.Application: Suitable to be used for jointing all type of TC transmission belt and PU belt and PVC belt |
NW: 5.9kgs; GW:8.6kgs; Package: 540*200*330mm |

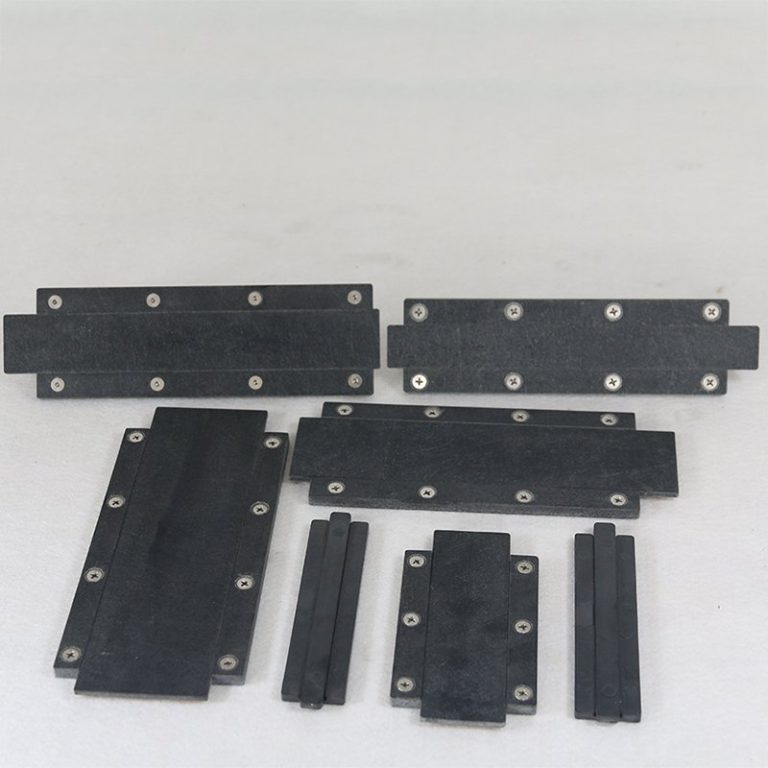

| Mold for spilce press UY-55, UY-816; UY1218 |  |
Normal width: 11MM, 20MM, 30MM, 40MM, 50MM, 60MM, or customized as clients’ requirements | |||
