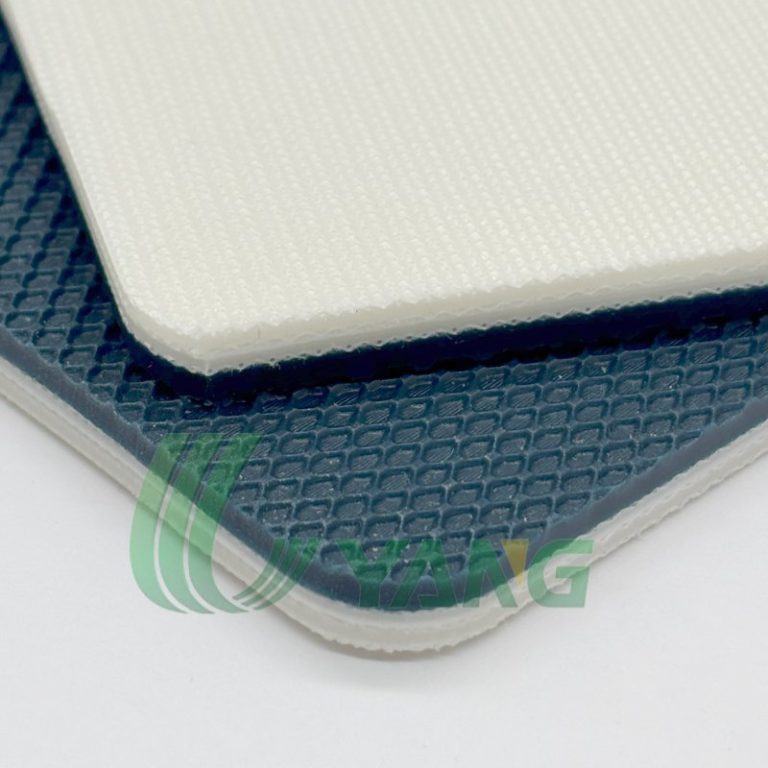

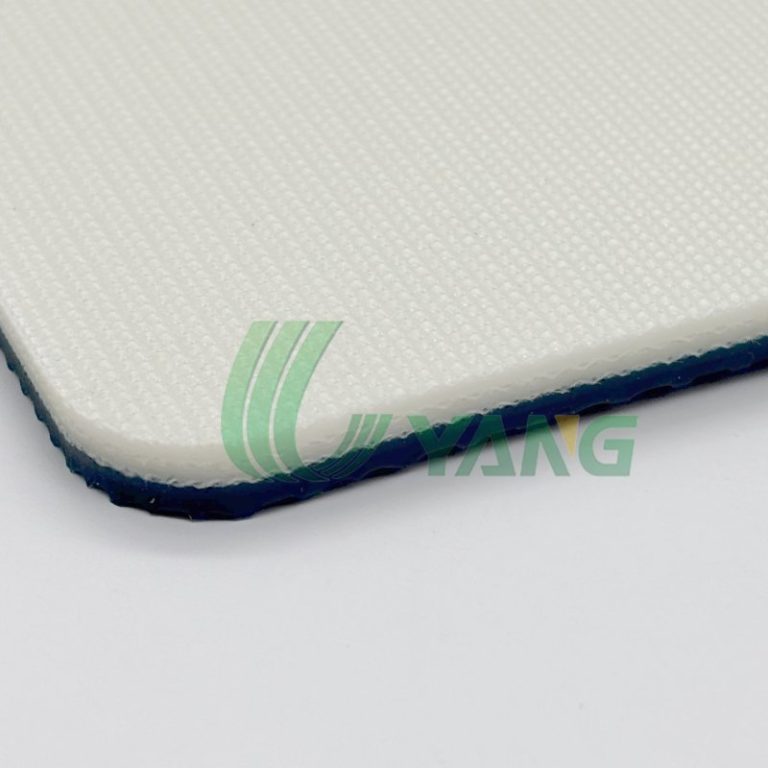

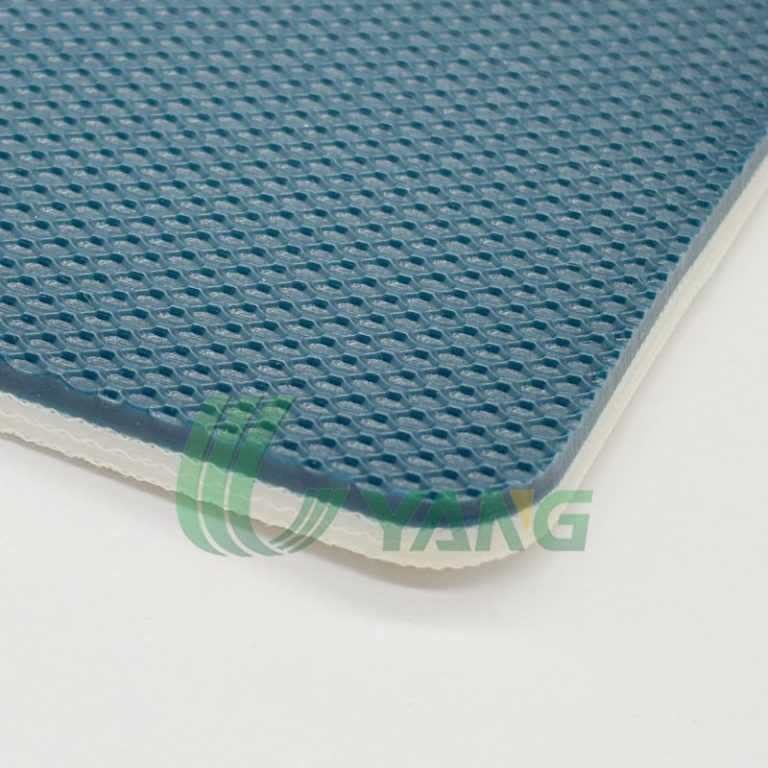

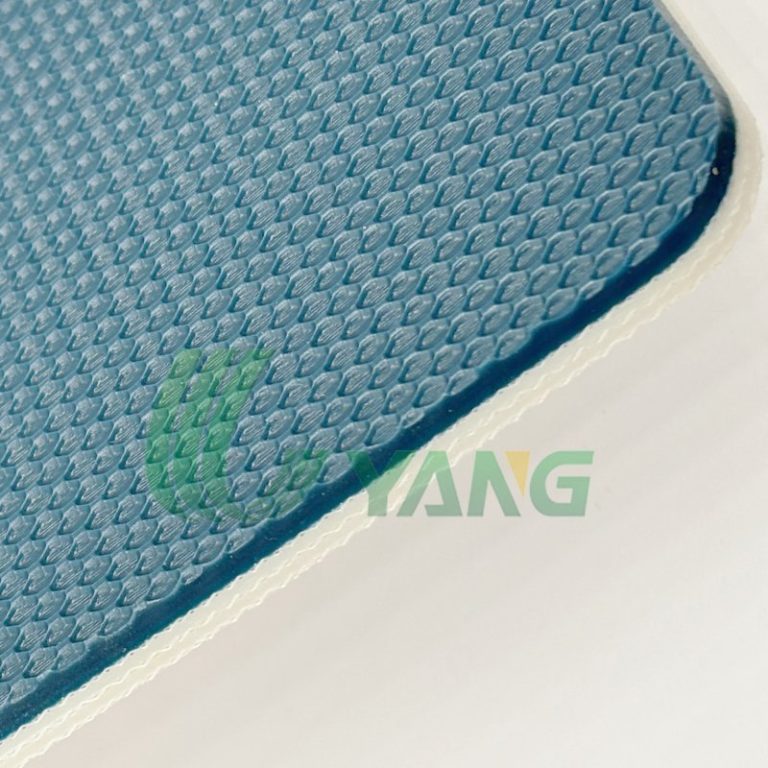

This conveyor belt with specifications of 6.0mm thickness, small golf pattern, and a 3-ply fabric and 3-ply PVC structure is typically designed for industries that require high tensile strength, wear resistance, and anti-slip properties.
Small Golf Pattern: Increases friction, prevents material slippage, and is suitable for inclined or horizontal transportation.
3-Ply Fabric and 3-Ply Rubber Structure:The 3 layers of fabric provide high tensile strength, making it suitable for medium loads and long-distance transportation.The 3 layers of rubber enhance wear resistance and durability.
6.0mm Thickness: Provides good load-bearing capacity and stability.
This conveyor belt with specifications of 6.0mm thickness, small golf pattern, and a 3-ply fabric and 3-ply PVC structure is typically designed for industries that require high tensile strength, wear resistance, and anti-slip properties.
Small Golf Pattern: Increases friction, prevents material slippage, and is suitable for inclined or horizontal transportation.
3-Ply Fabric and 3-Ply Rubber Structure:The 3 layers of fabric provide high tensile strength, making it suitable for medium loads and long-distance transportation.The 3 layers of rubber enhance wear resistance and durability.
6.0mm Thickness: Provides good load-bearing capacity and stability.
HARDNESS°SHA : 80
1% ELONGATION STRENGTH: 50N/MM
ROLLER DIAMETER MIN: 80MM
BELT THICKNESS:6.0MM
BELT WEIGHT: 6.5 KG/M²
WIDTH MAX: 3400MM
TEMPERATURE: -10/+80
TOP COVER MATERIAL: | PVC |
SURFACE FINISH: | Small Golf |
PROPERTY: | 6.0mm 80 Shore A |
COLOR: | Petrol |
BOTTOM COVER MATERIAL: | Polyester Fabric |
SURFACE FINISH: | Smooth |
COLOR: |
TOP PLY: | Polyester Fabric |
INNER PLIES: | |
BOTTOM PLY: | Polyester Fabric |
TOTAL NO. OF PLIES: | 3 |
BELT APPLICATION:
When choosing PVC conveyor belts, it is advisable to communicate detailed production processes and specific needs with the supplier to customize the most suitable conveyor belt solution.
Reliable delivery schedules and warehousing support.
Competitive pricing to maximize overall value.
Diverse options to cater to all market segments.
Flexible MOQ Support with all types of goods;
Personalized logo customization on the products
Provide online technical support for all product usage and installation processes
Quick first response to all inquiry and questions
Provide quality images, Video to enhance sales revenue
Efficient production and ship within 15 days at the fastest.
Generally it is 10-15 days, if peak season, it will be about 15-20 day safter receiving the deposit
1. Confirmed Specification: thickness,color, plies,characteristic, and industry;
2. Samples sending: we send samples for you check.or you send us samples if customized belt.
3. Confirm Order: Signing sales contract after samples confirmed.
4. Deposit: 30% deposit before mass production.
5. Production arranged : we will process the production.
6. Remaining payment: after inspection, balance before shipment.
7. Shipping: we will ship the goods to destination port.
8. Confirm bill of loading/commercial invoice/packing list/certificate of origin;
