UYANG’s reinforced V-belts feature high-strength aramid fiber cores that minimize stretching (<0.3% elongation) and maintain stable power transmission. The advanced reinforcement reduces installation tension by 40% while supporting heavy loads, ensuring reliable performance in demanding industrial applications.
UYANG’s reinforced V-belts feature high-strength aramid fiber cores that minimize stretching (<0.3% elongation) and maintain stable power transmission. The advanced reinforcement reduces installation tension by 40% while supporting heavy loads, ensuring reliable performance in demanding industrial applications.
Características clave:
50% higher load capacity
3-5x extended service life
Superior heat resistance (-40°C to +120°C) and abrasion
Available in food-grade, oil-resistant, and anti-static variants for specialized applications.

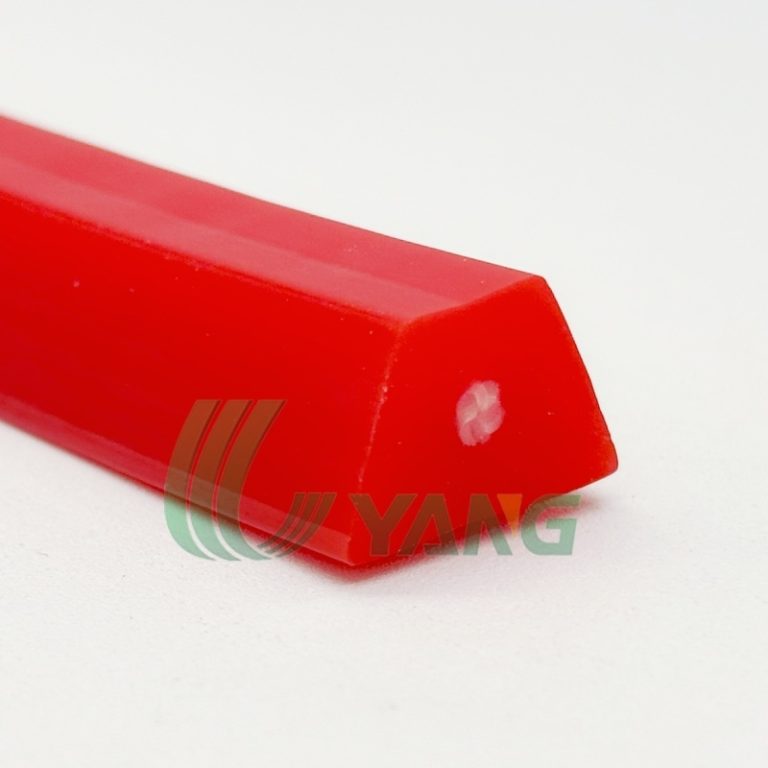

Product Construction with Core Reinforcement Layer:
Military-grade aramid fibers (Kevlar type) as a tensile carrier
Special weaving process achieves 2000N/mm² tensile strength
Innovative double-helix winding structure eliminates operational torque
Performance Advantages:
✓ Ultra-low stretch: Operational elongation <0.3%, exceeding industry standards
✓ Extended lifespan: 3- 5x longer service life than conventional V-belts
✓ Heavy-duty capacity: 50% higher load rating than standard belts
✓ Precision transmission: Over 98% efficiency guaranteed
Especificaciones técnicas:
Temperature range: -40℃ to +120℃ (special models)
Minimum pulley diameter: 60% of standard requirements
Fatigue resistance: Passed 2 million bending cycles
Special Application Designs:
• Food-grade: White TPU coating + detectable metal core
• Anti-static: Carbon fiber composite core (surface resistance 10⁶Ω)
• Oil-resistant: Special PU compound + anti-permeation layer
• Mining version: Flame-retardant coating + steel detection core
Installation Benefits:
▶ 40% reduced pre-tension for easier installation
▶ Unique wear indicator line for visual monitoring
▶ Sectional replacement capability cuts maintenance costs by 60%
Datos técnicos:
| Dimensions | Sección transversal | Approx. weight | Standard roll | Recommended min. pulley ∅ ⌀ | Fmax/belt (standard) | Fmax/belt (overlap) |
|---|---|---|---|---|---|---|
| mm | cm2 | kg {{url_placeholder_0}} | m | mm | kg | kg |
| 8×5 (M) | 0,32 | 4 | 30 | 50 | 10,3 | 21,6 |
| 10×6 (Z) | 0,48 | 6.0 | 30 | 60 | 15,4 | 32,4 |
| 13×8 (A) | 0,82 | 10 | 30 | 85 | 25,9 | 54,5 |
| 13×8 (A) | 0,82 | 10 | 50 | 85 | 25,9 | 54,5 |
| 17×11 (B) | 1,46 | 18 | 30 | 110 | 46,9 | 98,6 |
| 17×11 (B) | 1,46 | 18 | 100 | 110 | 46,9 | 98,6 |
| 22×14 (C) | 2,4 | 29 | 30 | 150 | 77 | 150 |
| 32×20 (D) | 5 | 62 | 30 | 220 | 154 | n/a |
Aplicaciones típicas:
Heavy industry: Mining equipment, steel plant conveyors
Automotive: Engine assembly lines, test benches
Food processing: High-temperature sterilization lines
Logistics: High-speed sorting systems
Our Services:
• Free technical selection support
• 48-hour sample delivery
• On-site installation guidance
• Customized solutions
(Detailed test reports and industry certifications available upon request)
Horarios de entrega confiables y soporte de almacenamiento.
Precios competitivos para maximizar el valor general.
Opciones diversas para atender a todos los segmentos del mercado.
Soporte de MOQ flexible con todo tipo de bienes;
Personalización de logotipo personalizado en los productos
Proporcionar soporte técnico en línea para todos los procesos de uso e instalación de productos
Primera respuesta rápida a todas las preguntas y preguntas
Proporcionar imágenes de calidad, video para mejorar los ingresos por ventas
Producción eficiente y envío dentro de los 15 días en el más rápido.
En general, son de 10-15 días, si la temporada alta, será de unos 15-20 días de seguridad para recibir el depósito
1. Especificación confirmada: espesor, color, capas, características e industria;
2. Envío de muestras: enviamos muestras para usted verificar. O nos envía muestras si el cinturón personalizado.
3. Confirme el pedido: firmar contrato de venta después de las muestras confirmadas.
4. Depósito: 30% de depósito antes de la producción en masa.
5. Producción organizada: procesaremos la producción.
6. Pago restante: después de la inspección, saldo antes del envío.
7. Envío: enviaremos los productos al puerto de destino.
8. Confirme la factura de carga {{url_placeholder_0}} Invoice {{url_placeholder_1}} list {{url_placeholder_2}} de origen;
